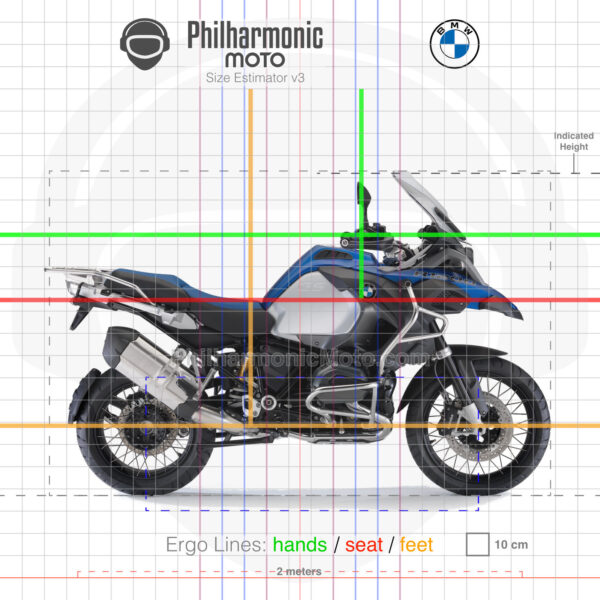

BMW R 1200 GS Adventure 2014 Racing Blue Metallic Matt
BMW R 1200 GS Adventure 2014 Racing Blue Metallic Matt

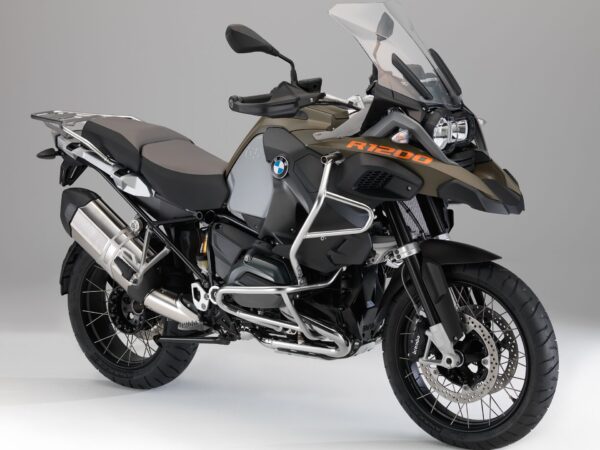

BMW R 1200 GS Adventure 2014 Olive Matt front

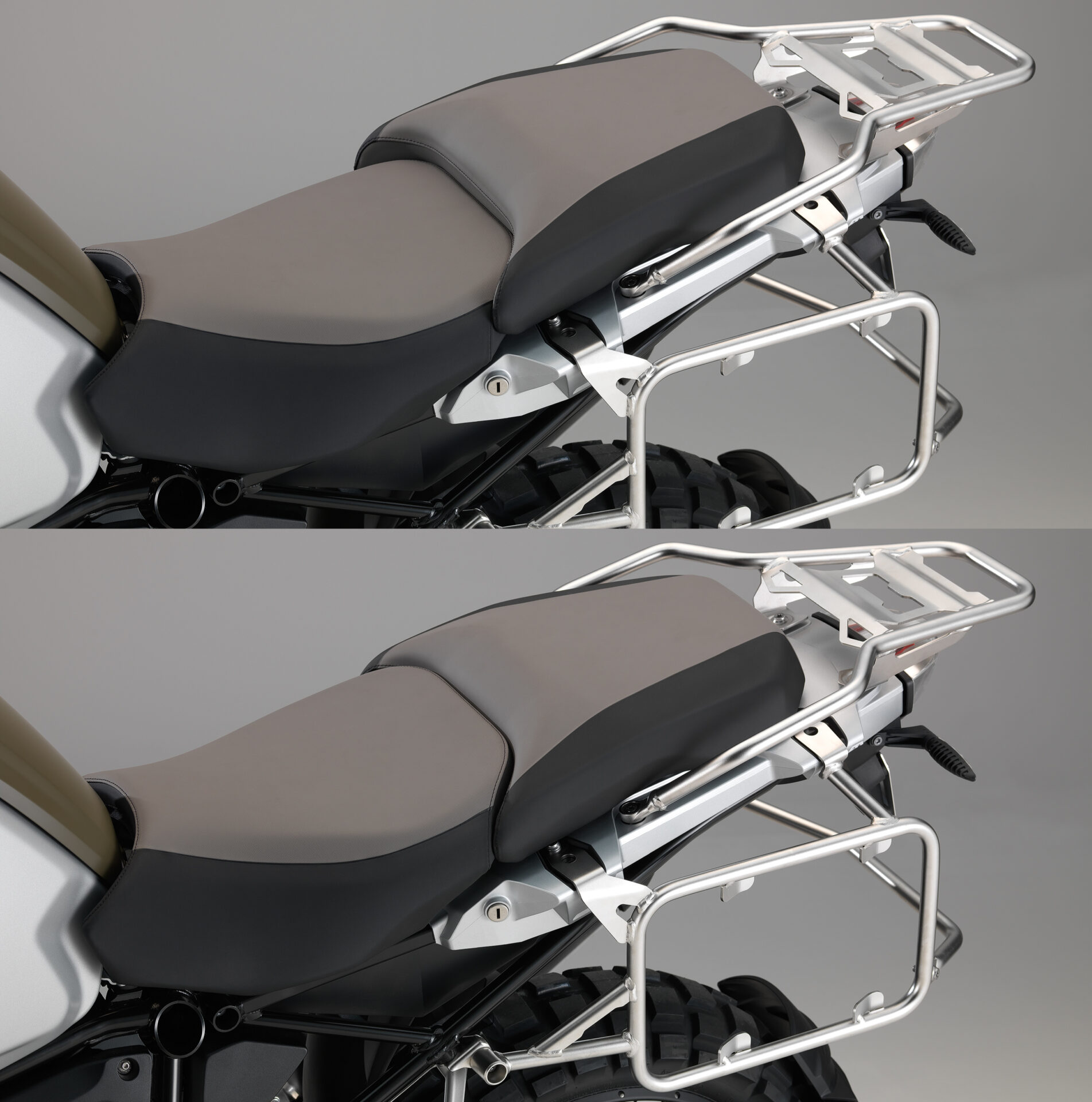

BMW R 1200 GS Adventure 2014 Olive Matt adjustable seat

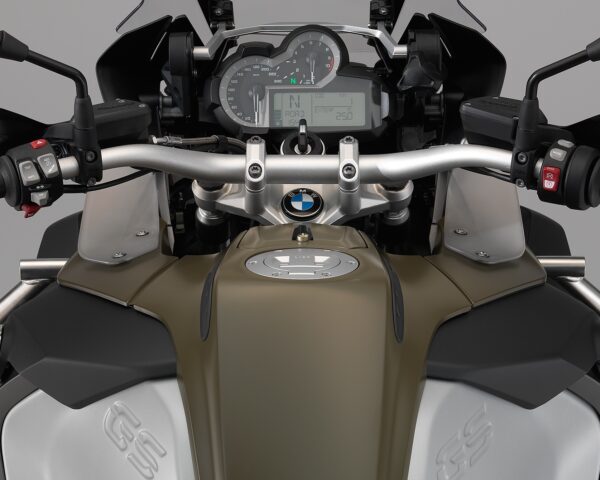

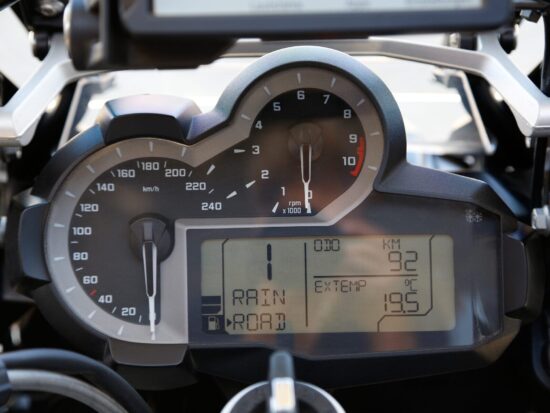

BMW R 1200 GS Adventure 2014 dashboard
BMW R 1200 GS Adventure 2014 Olive Matt cockpit
BMW R 1200 GS Adventure 2014 Olive Matt headlight

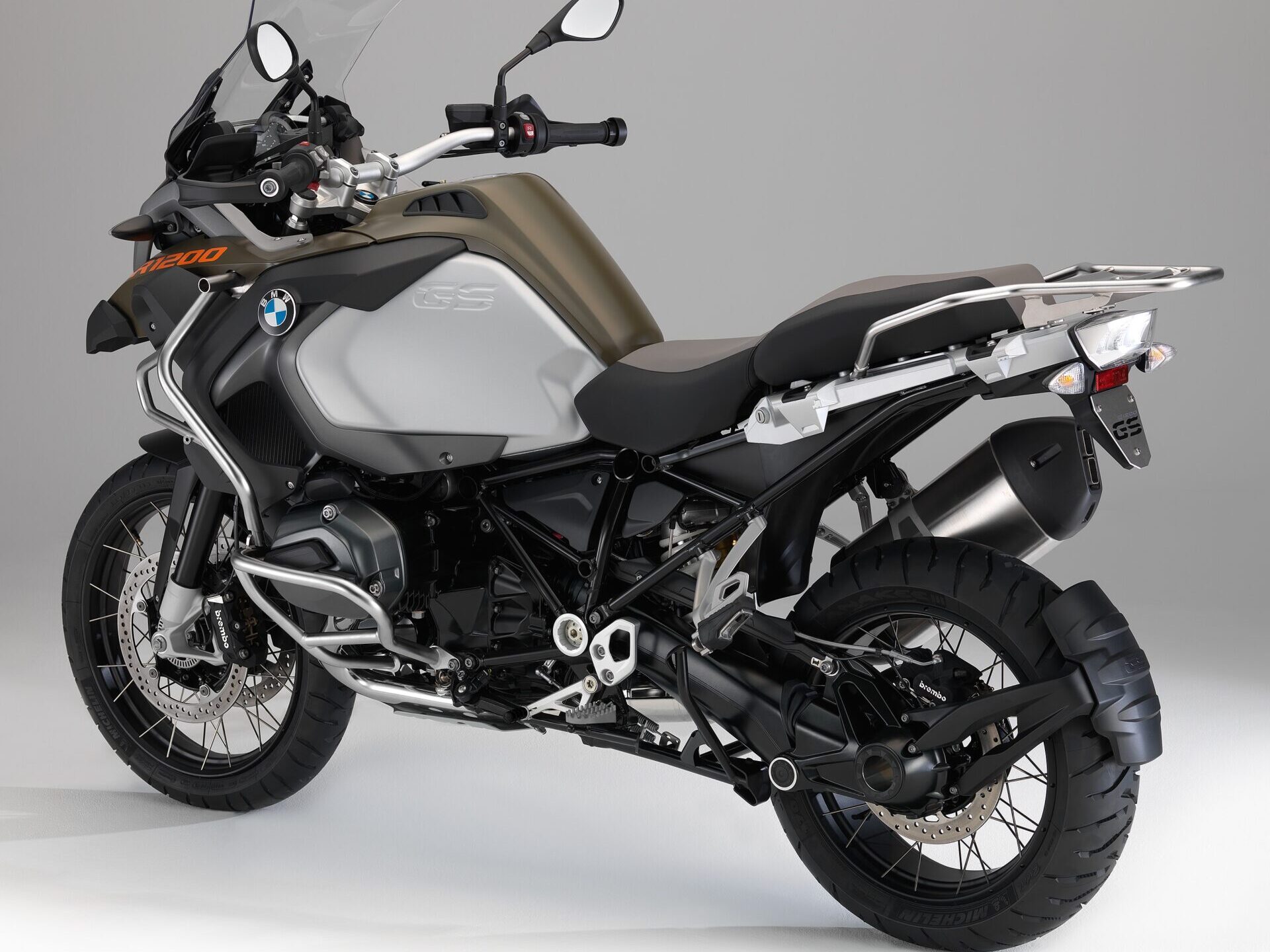

BMW R 1200 GS Adventure 2014 Olive Matt back
BMW R 1200 GS Adventure 2017 TFT optional dashboard
BMW R 1200 GS Adventure 2017 dashboard

BMW R 1200 GS Adventure (2014-2018)

R1200GSA

“GS” comes from the german Geländestrasse (off-road).

Updated: 26 August 2024

Brand: Style:
Share:

Specifications and Features

Engine

1170 cc Boxer-twin, air/liquid cooled
Power

125 hp @ 7750 rpm
Power to weight ratio

48 HP/100kg
Torque

125 Nm @ 6500 rpm
Torque to weight ratio

48 Nm/100kg
Transmission

– 6-speed, wet multi-plate slip/assist hydraulic clutch
– Shaft final drive
– Optional from 2018: quick-shifter
Fuel Capacity

30 litres
Length

2255 mm
Width

980 mm (handlebars)
Height

1450 mm
Weight

– 260 kg wet (263 from 2017)
– Max load: 220 kg (217 from 2017)
Seat Height

890/910 mm (adjustable, optional: 840/860, 895)
Suspension

– Front: telelever central spring strut, 210 mm travel
– Rear: paralever, adjustable preload (remote) and rebound, 220 mm travel
– Optional: electronic suspension, from 2018: self-leveling
Tyres

– Front: 120/70-19
– Rear: 170/60-17
– Tubeless
Brakes

– Front: 305 mm floating discs, Brembo monobloc 4-piston calipers
– Rear: 276 mm disc, Brembo 2-piston floating caliper
– ABS available (switchable, adjustable), combined braking. Optional from 2016: cornering ABS
Instruments

– Analogue speedometer, tachometer, LCD display with odometer, gear indicator, fuel gauge, dual trip meters, reserve trip meter, average and current consumption, ambient and engine temperature, average speed, voltmeter, stop watch, date, clock, shift-up indicator
– Optional from mid-2017: 6.5" TFT display with smartphone connectivity
Other

– LED taillight. Optional: LED headlight and indicators. Optional from 2016: emergency braking lights
– Riding modes, cornering traction control (switchable, adjustable)
– 12v socket on dash, adjustable brake, clutch and shift levers (hand and feet), centre stand. Optional: cruise control, 12v socket, heated grips, TPMS, from 2018: hill-hold, keyless, emergency call

BMW R 1200 GS Adventure 2014 dashboard BMW R 1200 GS Adventure 2014 Olive Matt front BMW R 1200 GS Adventure 2014 Olive Matt back
