Honda CB300R (2018-2022)

PredecessorSuccessor

Updated: 14 June 2025


Category: Tag: Brand:

Specifications and Features

Length

2020 mm

Width

805 mm

Height

1050 mm

Seat Height

799 mm

Weight

– 145 kg wet
– Max load: 150 kg

Engine

286 cc Single-cylinder, liquid-cooled

Power

31 hp @ 8500 rpm

Power to weight ratio

21 HP/100kg

Torque

28 Nm @ 7250 rpm

Torque to weight ratio

19 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

10,1 litres

Suspension

– Front: 41 mm inverted fork, 130 mm travel
– Rear: mono-shock, adjustable preload, 107 mm travel

Tyres

– Front: 110/70-17 (-43 cm)
– Rear: 150/60-17 (-43 cm)

Brakes

– Front: 296 mm disc, 4-piston caliper
– Rear: 220 mm disc, 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, clock

Other

– LED lights

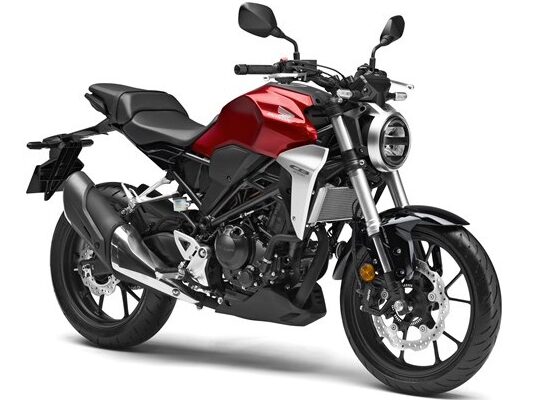

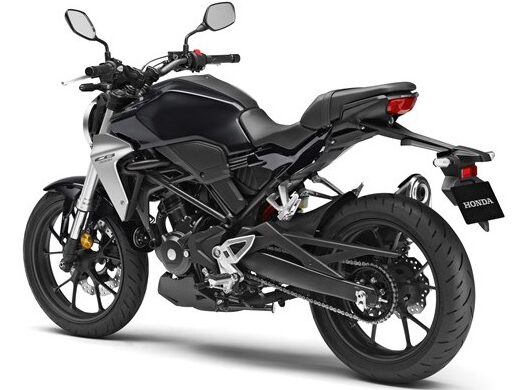

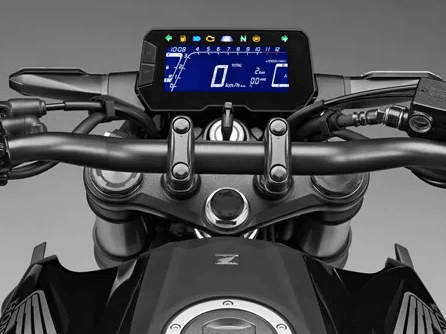

Honda CB300R 2022 dashboard Honda CB300R 2019 front Honda CB300R 2019 back
