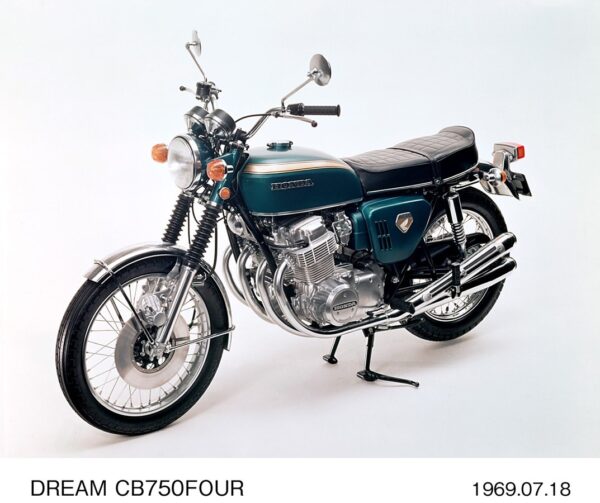

Honda CB750 Four (1969-1978)

“World’s first ‘Superbike’. First mass-produced four-cylinder production motorcycle. First mass production bike with electric start and disc brake. First shown at Tokyo show in 1968 – on sale in 1969.” Honda News


Brand: Style:
Share:

Specifications and Features

Engine

736 cc Inline-4, air-cooled, 4 carburettors

Power

67 hp @ 8000 rpm

Power to weight ratio

29 HP/100kg

Torque

60 Nm @ 7000 rpm

Torque to weight ratio

26 Nm/100kg

Transmission

– 5-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

16-18 litres

Length

2160 mm

Width

885 mm

Height

1155 mm

Weight

– 235 kg wet
– Max load: 150 kg

Seat Height

800 mm

Suspension

– Front: 35 mm telescopic fork, 143 mm travel
– Rear: twin-shocks, adjustable preload, 85 mm travel

Tyres

– Front: 3.25-19
– Rear: 4.00-18

Brakes

– Front: 296 mm disc, Tokyco 1-piston caliper
– Rear: 179 mm drum, mechanical

Instruments

– Analogue speedometer, tachometer, odometer, trip meter

Other

– Centre stand

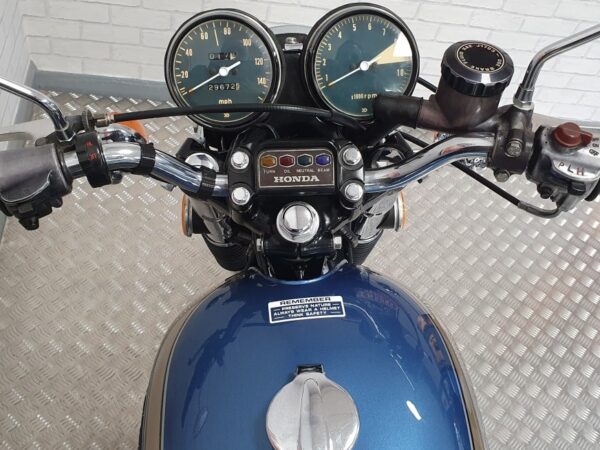

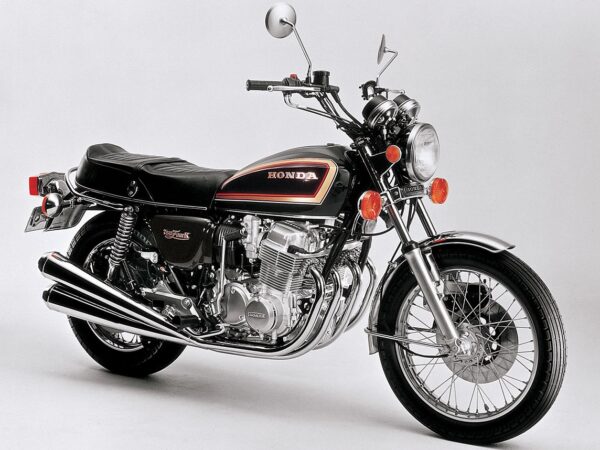

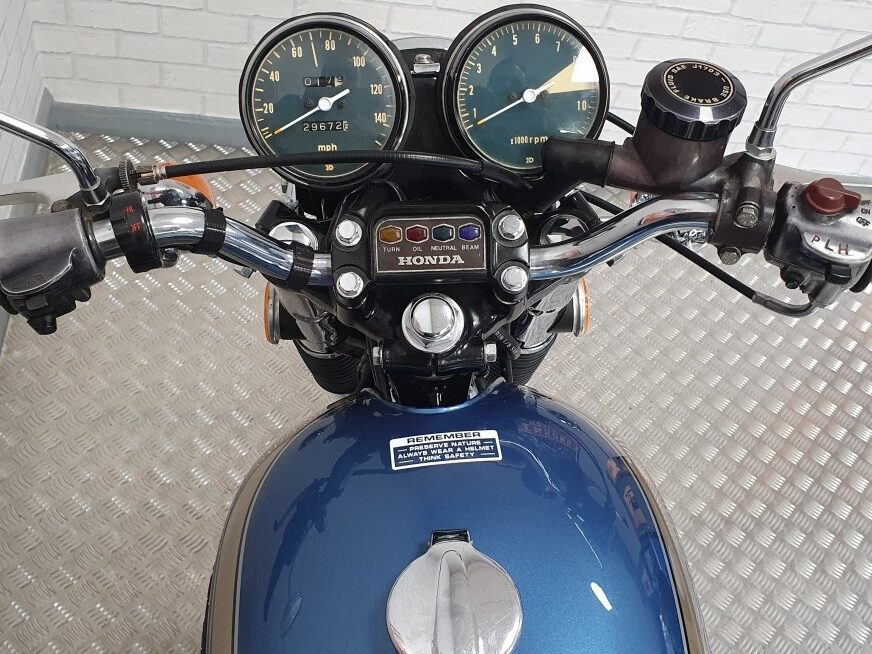

Honda CB750 Four dashboard Honda CB750 Four K7 1977 front  placeholder back
