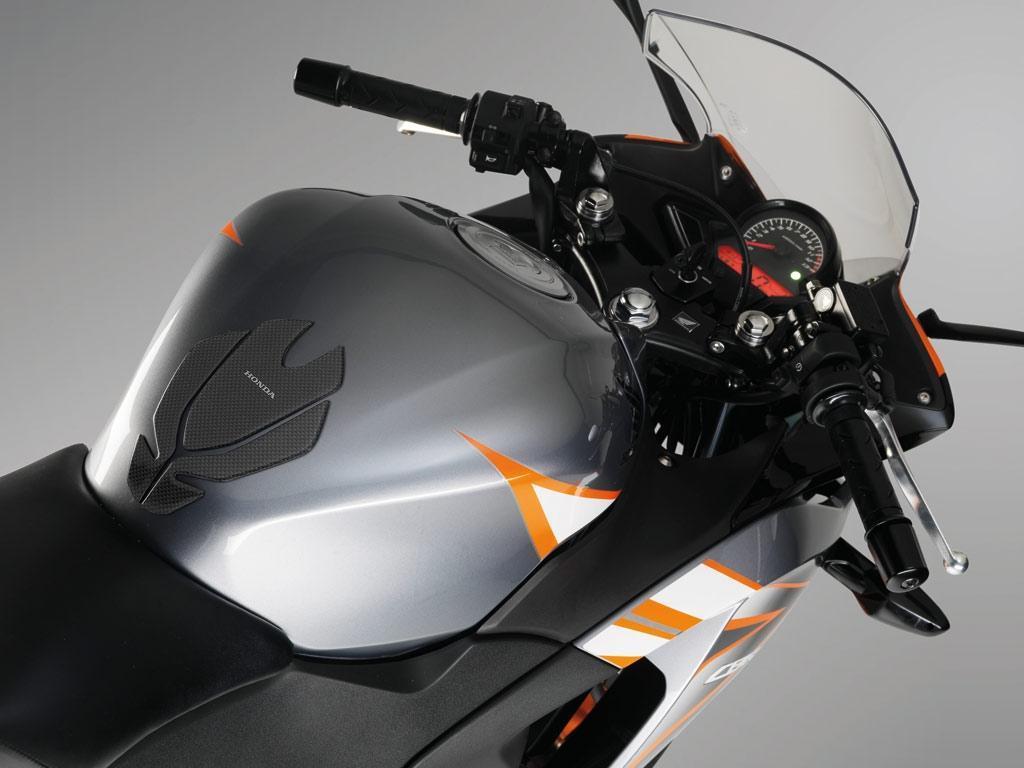

Honda CBR125R 2011 cockpit

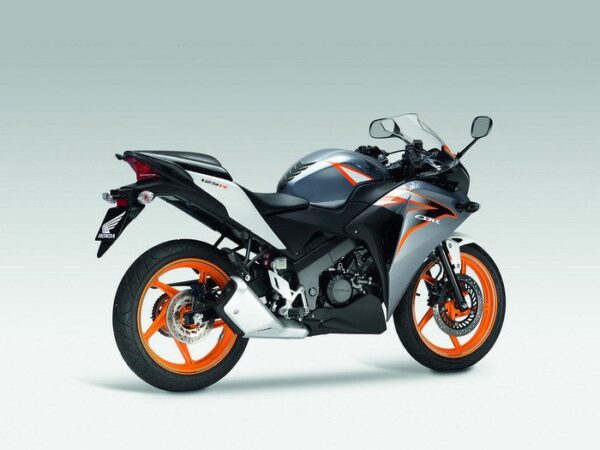

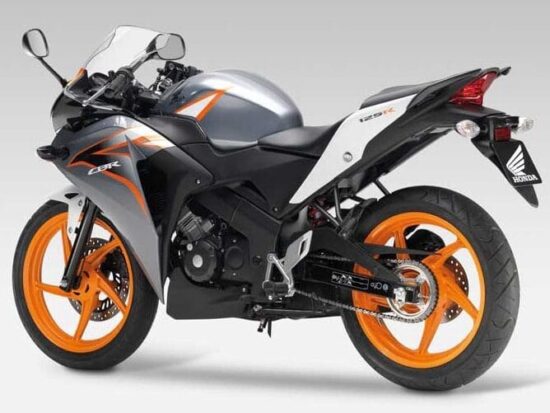

Honda CBR125R 2011 orange silver back
Honda CBR125R 2011 orange silver headlight taillight

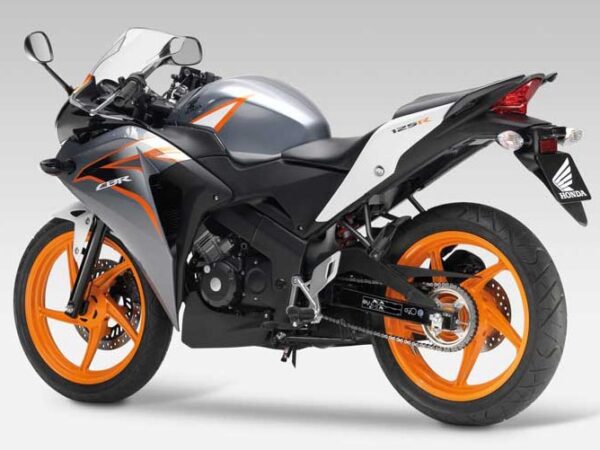

Honda CBR125R 2011 orange silver back2

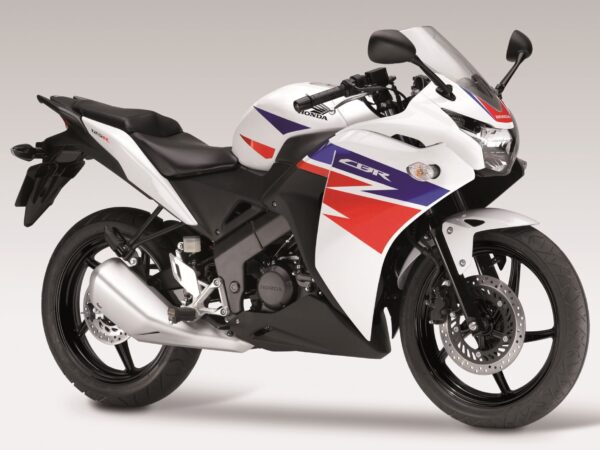

Honda CBR125R 2013 Ross White front

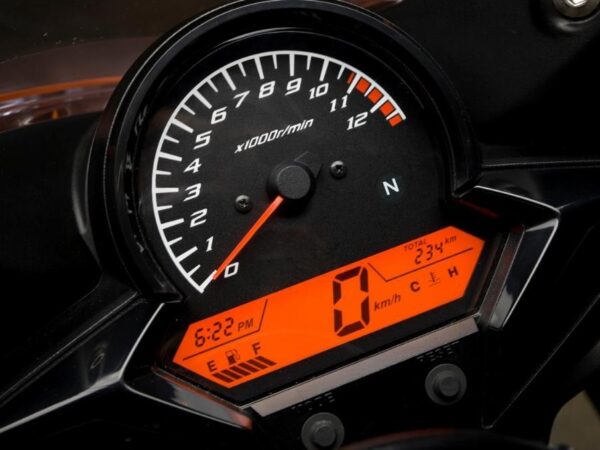

Honda CBR125R 2011 dashboard

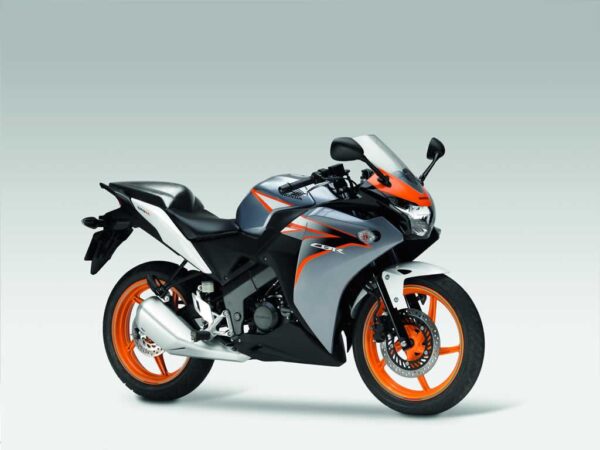

Honda CBR125R 2011 orange silver front

Honda CBR125R (2011-2019)

CBR 125 R


Brand: Style:
Share:

Specifications and Features

Engine

125 cc Single-cylinder, liquid-cooled

Power

13 hp @ 10000 rpm

Power to weight ratio

10 HP/100kg

Torque

10 Nm @ 8000 rpm

Torque to weight ratio

7 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

13 litres

Length

1985 mm

Width

710 mm

Height

1135 mm

Weight

– 137 kg wet
– Max load: 180 kg

Seat Height

795 mm

Suspension

– Front: 31 mm telescopic fork, 120 mm travel
– Rear: mono-shock, 126 mm travel

Tyres

– Front: 100/80-17
– Rear: 130/70-17

Brakes

– Front: 276 mm disc, Nissin 2-piston caliper
– Rear: 220 mm disc, Nissin 1-piston caliper

Instruments

– Analogue tachometer, LCD display with speedometer, odometer, fuel gauge, trip meter, engine temperature, clock

Other

Honda CBR125R 2011 dashboard Honda CBR125R 2013 Ross White front Honda CBR125R 2011 orange silver back

Motorcycle gifts to celebrate it and support the website:
ride agency black tshirt
Click here to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

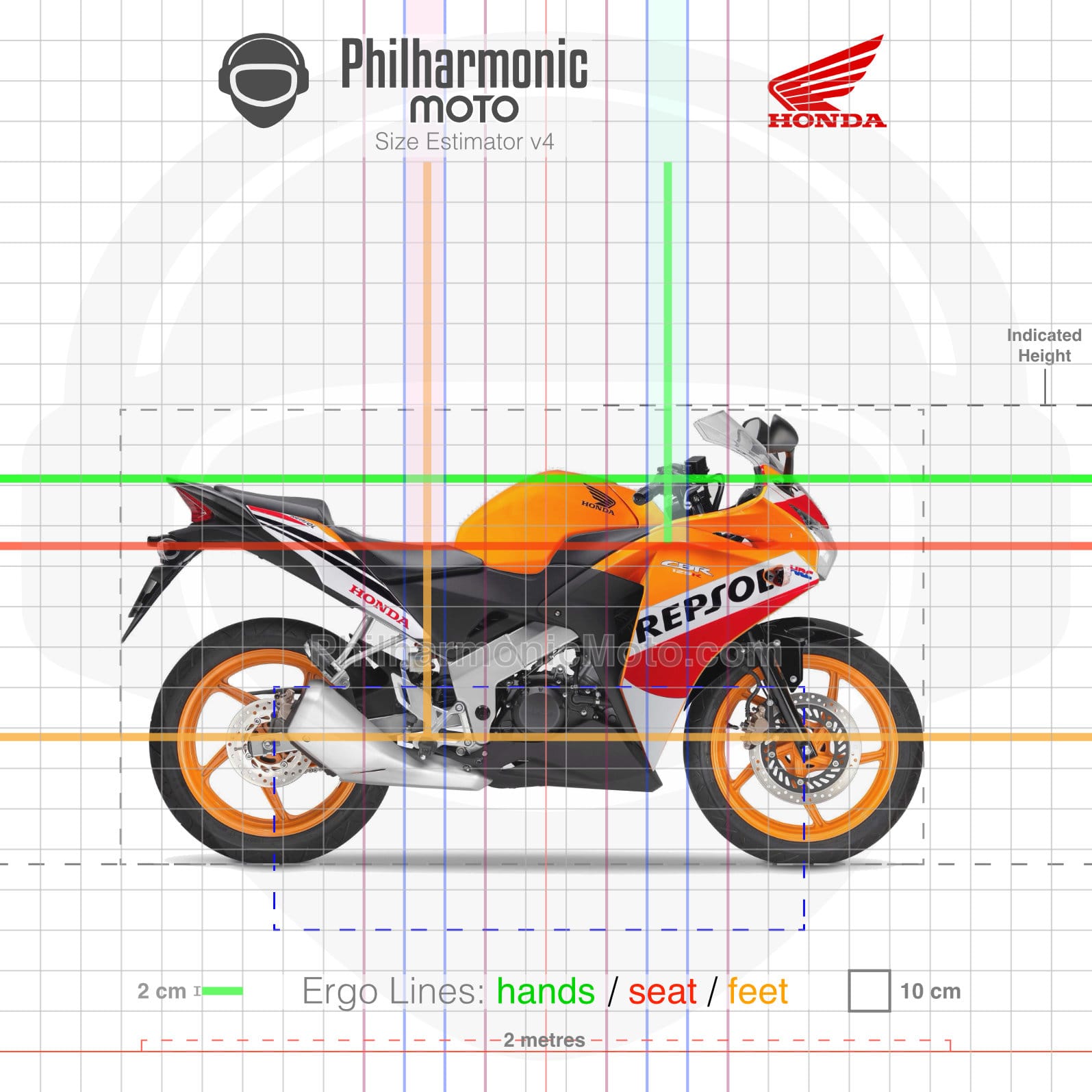

  • Size Estimator (see "About" page to learn more)
