Honda CBR500R (2013-2015)

Brand: Style:
Share:

Specifications and Features

Engine

471 cc Parallel-twin, liquid-cooled

Power

47 hp @ 8500 rpm

Power to weight ratio

24 HP/100kg

Torque

43 Nm @ 7000 rpm

Torque to weight ratio

22 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

15,7 litres

Length

2075 mm

Width

740 mm

Height

1145 mm

Weight

– 194 kg wet
– Max load: 168 kg

Seat Height

785 mm

Suspension

– Front: 41 mm telescopic fork, 120 mm travel
– Rear: mono-shock, adjustable preload, 119 mm travel

Tyres

– Front: 120/70-17
– Rear: 160/60-17

Brakes

– Front: 320 mm wavy disc, 2-piston caliper
– Rear: 240 mm wavy disc, 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, fuel gauge, dual trip meters, clock

Other

– Optional: heated grips, top and side cases

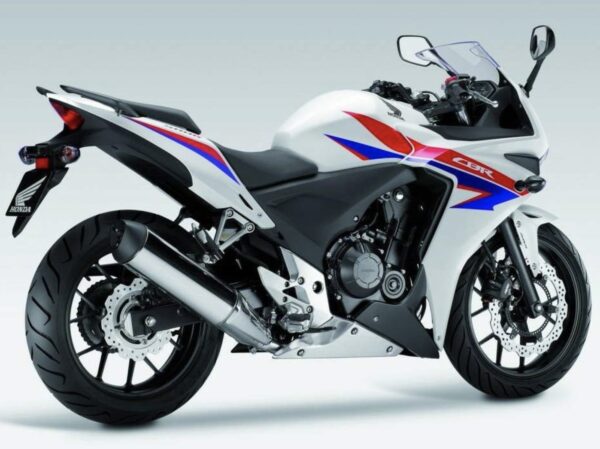

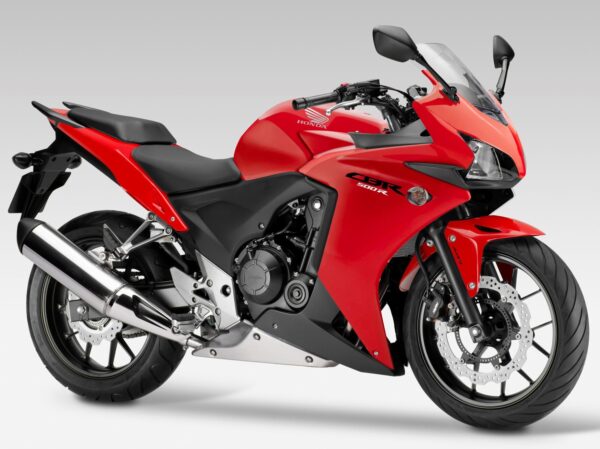

Honda CBR500R 2013 dashboard Honda CBR500R 2015 Millennium Red front Honda CBR500R 2013 Pearl Himalayas White back

Motorcycle gifts to celebrate it and support the website:
supermoto tshirt
Click here to learn more.


Brand (multi-selection) ( - )

  • 20 Aprilia
  • 21 Benelli
  • 65 BMW
  • 1 BSA
  • 33 CFMoto
  • 59 Ducati
  • 6 Fantic
  • 52 Harley-Davidson
  • 150 Honda
  • 17 Husqvarna
  • 44 Indian
  • 108 Kawasaki
  • 2 Keeway
  • 33 KTM
  • 2 Kymco
  • 16 Moto Guzzi
  • 6 Moto Morini
  • 19 MV Agusta
  • 3 Other
  • 8 Piaggio
  • 17 Royal Enfield
  • 59 Suzuki
  • 65 Triumph
  • 13 Vespa
  • 6 Voge
  • 99 Yamaha

Horsepower

Style (multi-selection) ( - )

  • 129 Adv
  • 60 Adv Sports
  • 58 Classic
  • 109 Cruiser
  • 31 Dual-Sport
  • 233 Naked
  • 77 Scooter
  • 44 Scrambler
  • 133 Sport
  • 38 Sport Touring
  • 18 Supermoto
  • 48 Touring

Features (standard or optional) info Features (standard or optional) multi-selection ( - )

Power to weight ratio (HP/100kg) ( - )

Torque (Nm) ( - )

Torque to weight ratio (Nm/100kg) ( - )

Seat height (mm) ( - )

Weight (Kg) ( - )

Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

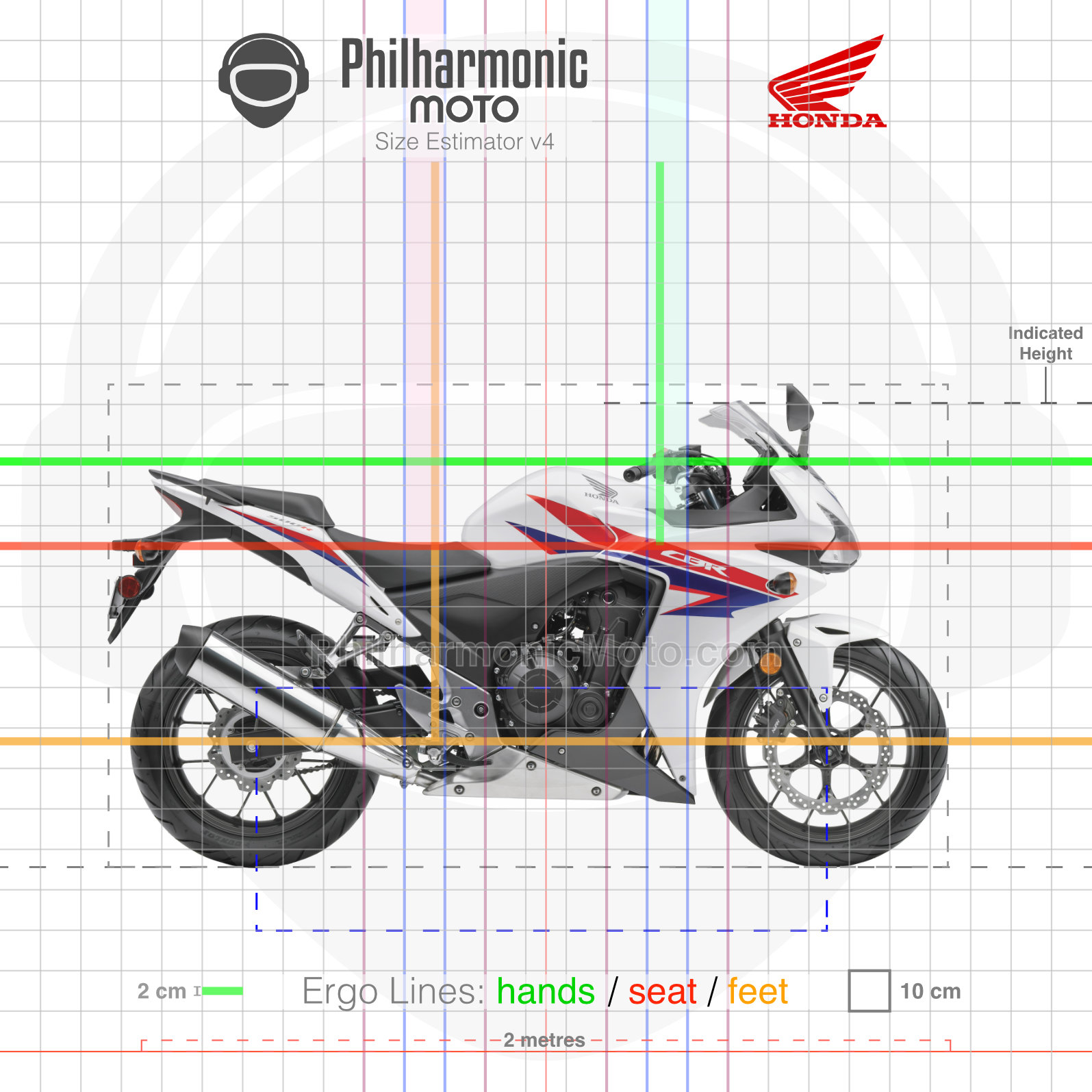

  • Size Estimator (see "About" page to learn more)
