Honda CBR500R (2016-2018)
Specifications and Features

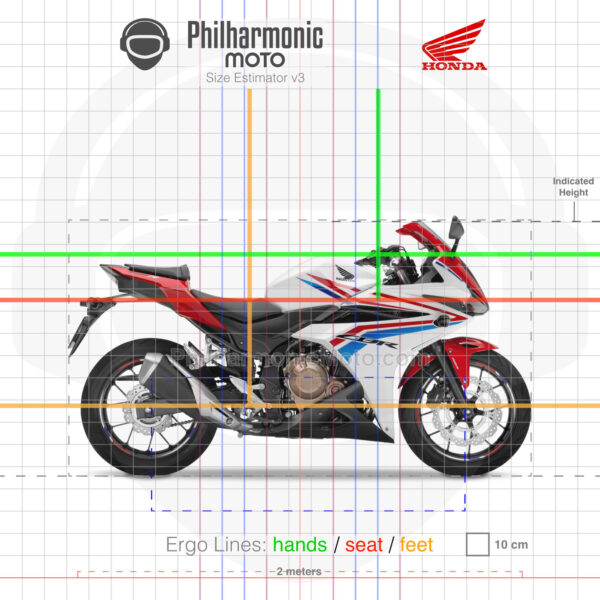

| Length | 2080 mm |
|---|---|
| Width | 750 mm |
| Height | 1145 mm |
| Seat Height | 785 mm |
| Weight | – 194 kg wet |
| Engine | 471 cc Parallel-twin, liquid-cooled |
| Power | 47 hp @ 8500 rpm |
| Power to weight ratio | 24 HP/100kg |
| Torque | 43 Nm @ 7000 rpm |
| Torque to weight ratio | 22 Nm/100kg |
| Transmission | – 6-speed, wet multi-plate clutch |
| Fuel Capacity | 16,7 litres |
| Suspension | – Front: 41 mm telescopic fork, adjustable preload, 120 mm travel |
| Tyres | – Front: 120/70-17 (-43 cm) |
| Brakes | – Front: 320 mm disc, 2-piston caliper |

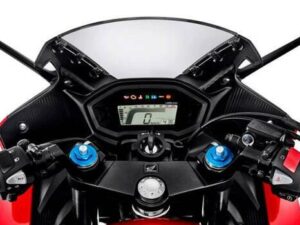

| Instruments | – LCD display with speedometer, tachometer, odometer, fuel gauge, dual trip meters, clock |

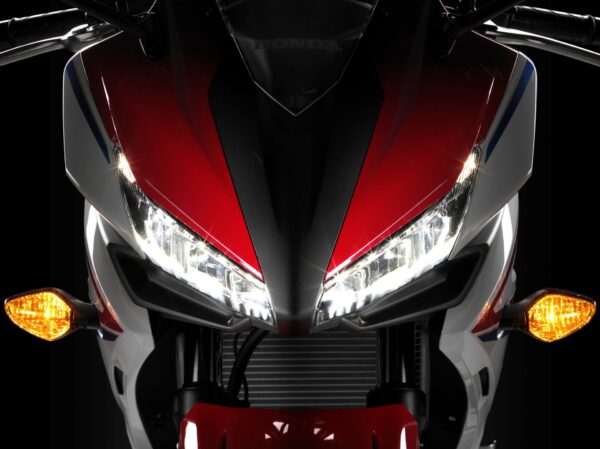

| Other | – LED headlight and taillight |
