Honda CRF300L (2021-2024)

PredecessorSuccessor

Updated: 22 March 2025


Category: Tag: Brand:

Specifications and Features

Length

2230 mm

Width

820 mm

Height

1200 mm

Seat Height

880 mm

Weight

– 142 kg wet
– Max load: 148 kg

Engine

286 cc Single-cylinder, liquid-cooled

Power

27 hp @ 8500 rpm

Power to weight ratio

19 HP/100kg

Torque

27 Nm @ 6500 rpm

Torque to weight ratio

19 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

7,8 litres

Suspension

– Front: 43 mm inverted fork, 259 mm travel
– Rear: mono-shock, adjustable preload, 259 mm travel

Tyres

– Front: 80/100-21 (-53 cm)
– Rear: 120/80-18 (-46 cm)

Brakes

– Front: 256 mm floating disc, 2-piston caliper
– Rear: 220 mm disc, 1-piston caliper
– ABS available (switchable)

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, average speed, stopwatch, clock

Other

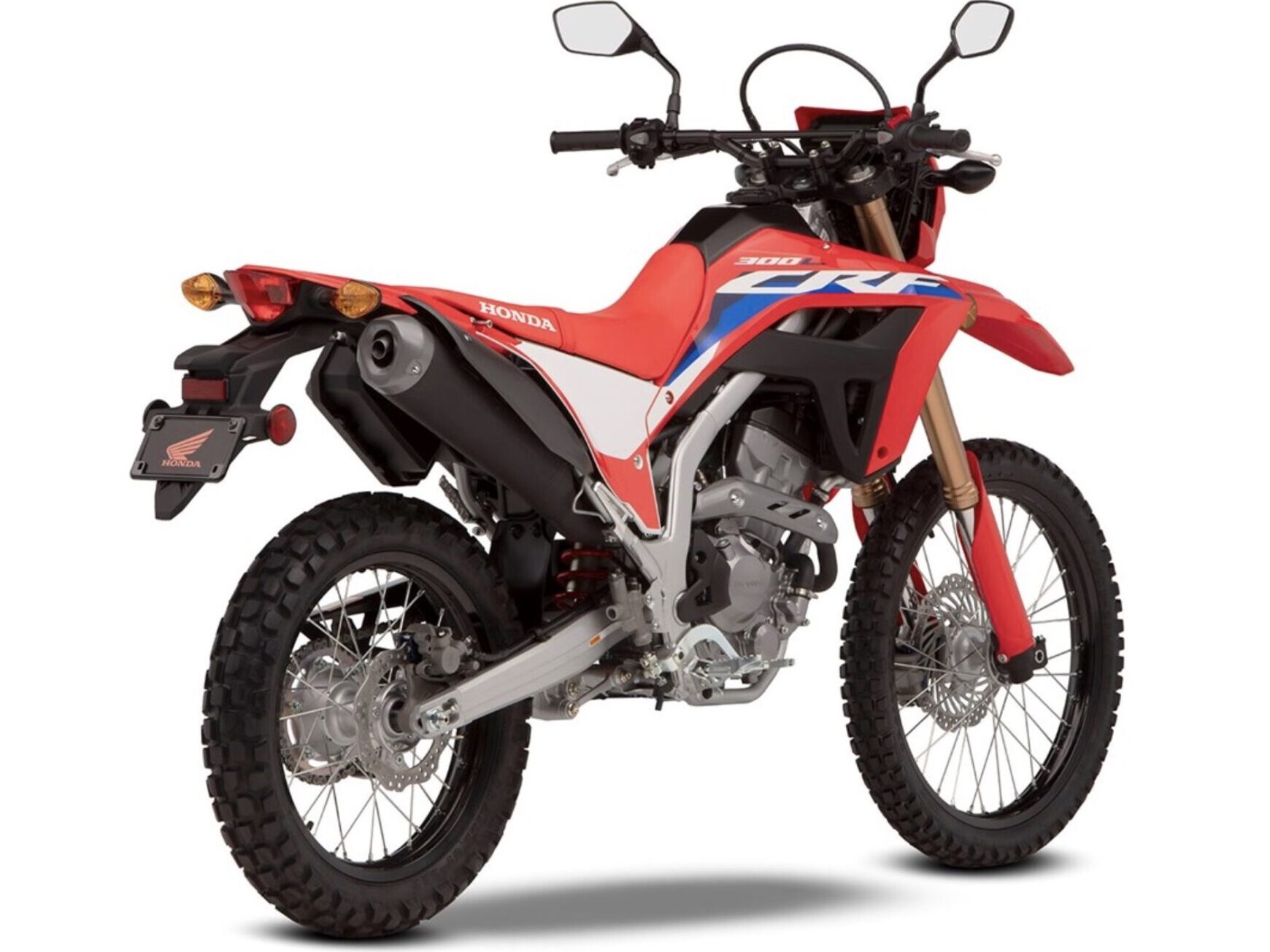

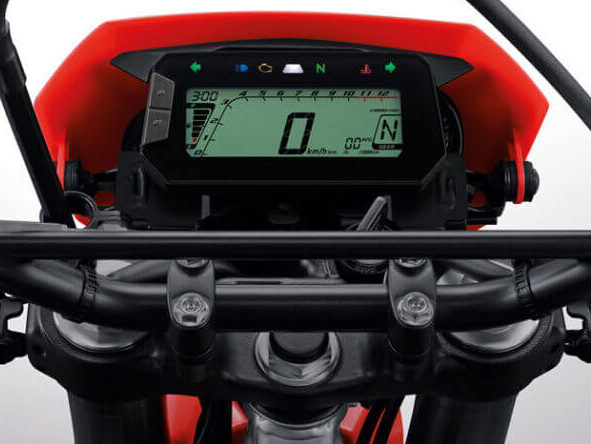

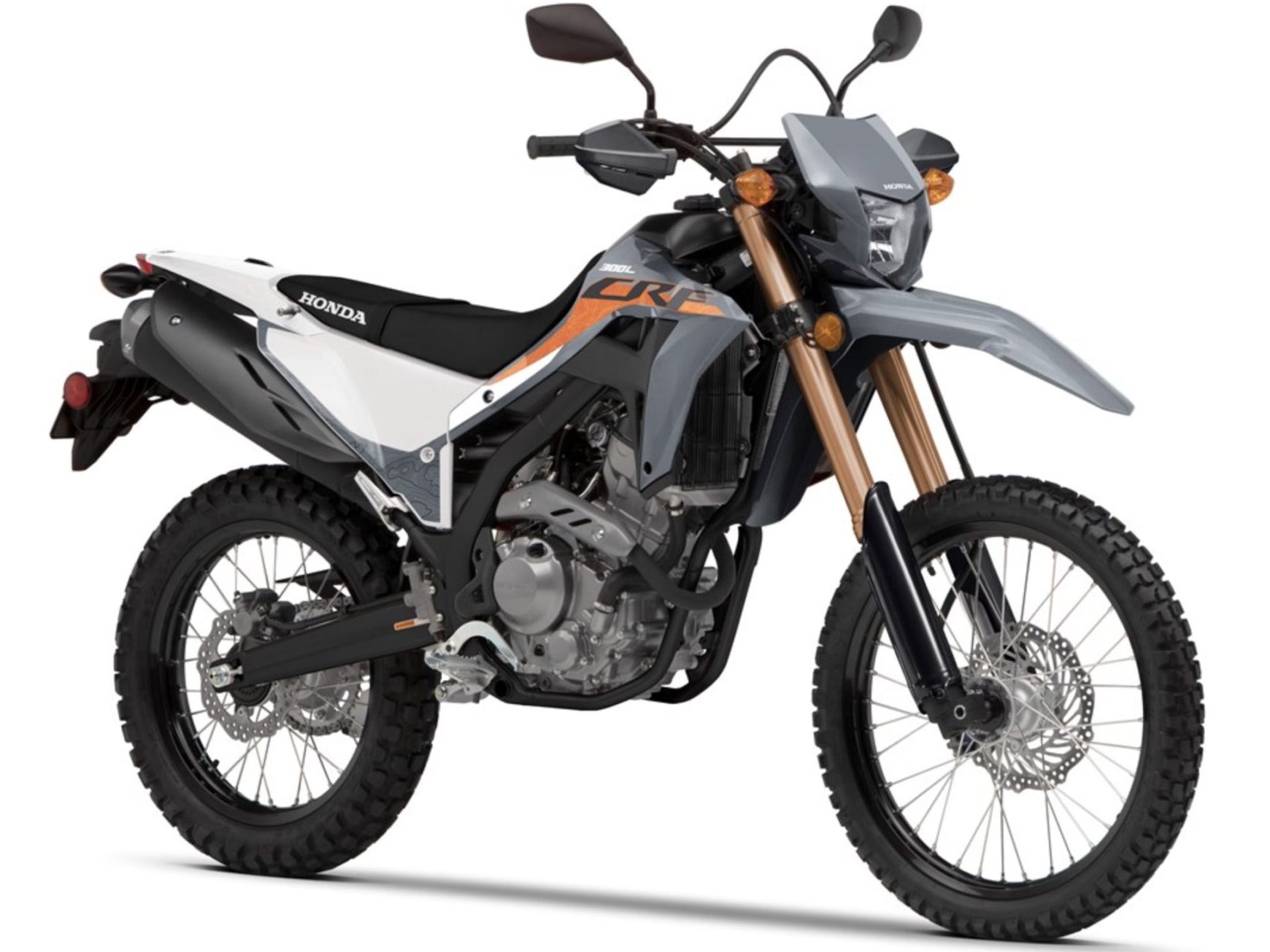

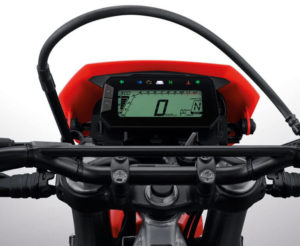

Honda CRF300L 2023 dashboard Honda CRF300L 2023 front Honda CRF300L 2022 back
