Honda CRF300L Rally (2025+)

2025 update: improved heat management and suspension damping.

Predecessor

Updated: 7 November 2024


Category: Tag: Brand:

Specifications and Features

Length

2230 mm

Width

820 mm

Height

1415 mm

Seat Height

885 mm

Weight

– 153 kg wet
– Max load: 145 kg (estimated)

Engine

286 cc Single-cylinder, liquid-cooled

Power

27 hp @ 8500 rpm

Power to weight ratio

18 HP/100kg

Torque

27 Nm @ 6500 rpm

Torque to weight ratio

18 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

12,8 litres

Suspension

– Front: 43 mm inverted fork, 234 mm travel
– Rear: mono-shock, adjustable preload, 260 mm travel

Wheelbase / Ground Clearance

1455 mm / 275 mm

Tyres

– Front: 80/100-21 (-53 cm)
– Rear: 120/80-18 (-46 cm)

Brakes

– Front: 256 mm floating disc, 2-piston caliper
– Rear: 220 mm disc, 1-piston caliper
– ABS available (switchable)

Instruments

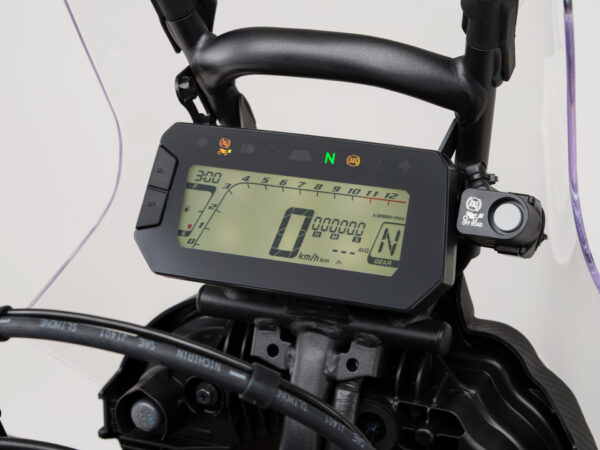

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, average speed, consumption, stopwatch, clock

Other

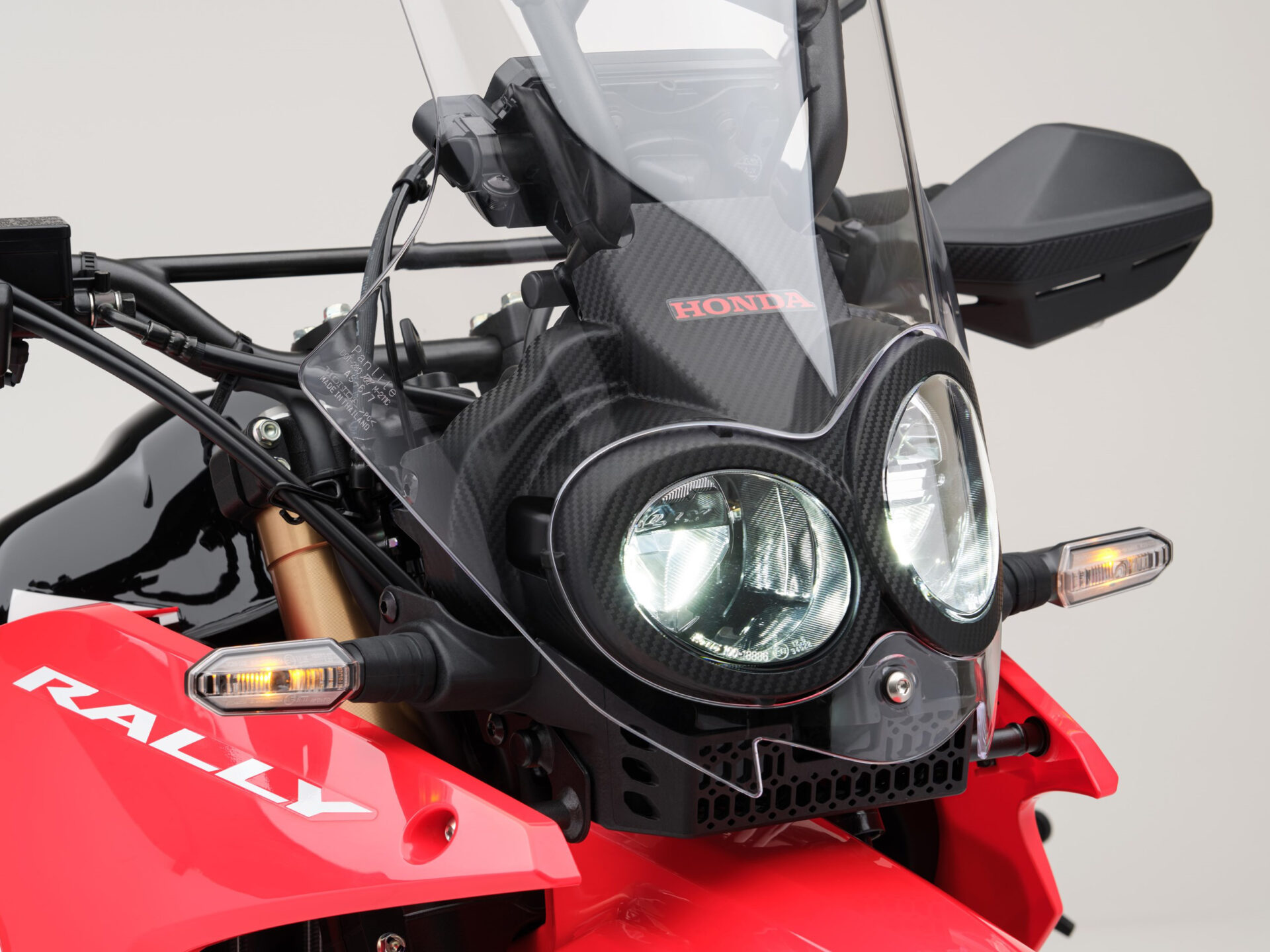

– LED headlight and indicators
– Optional: USB-C port on dash, heated grips

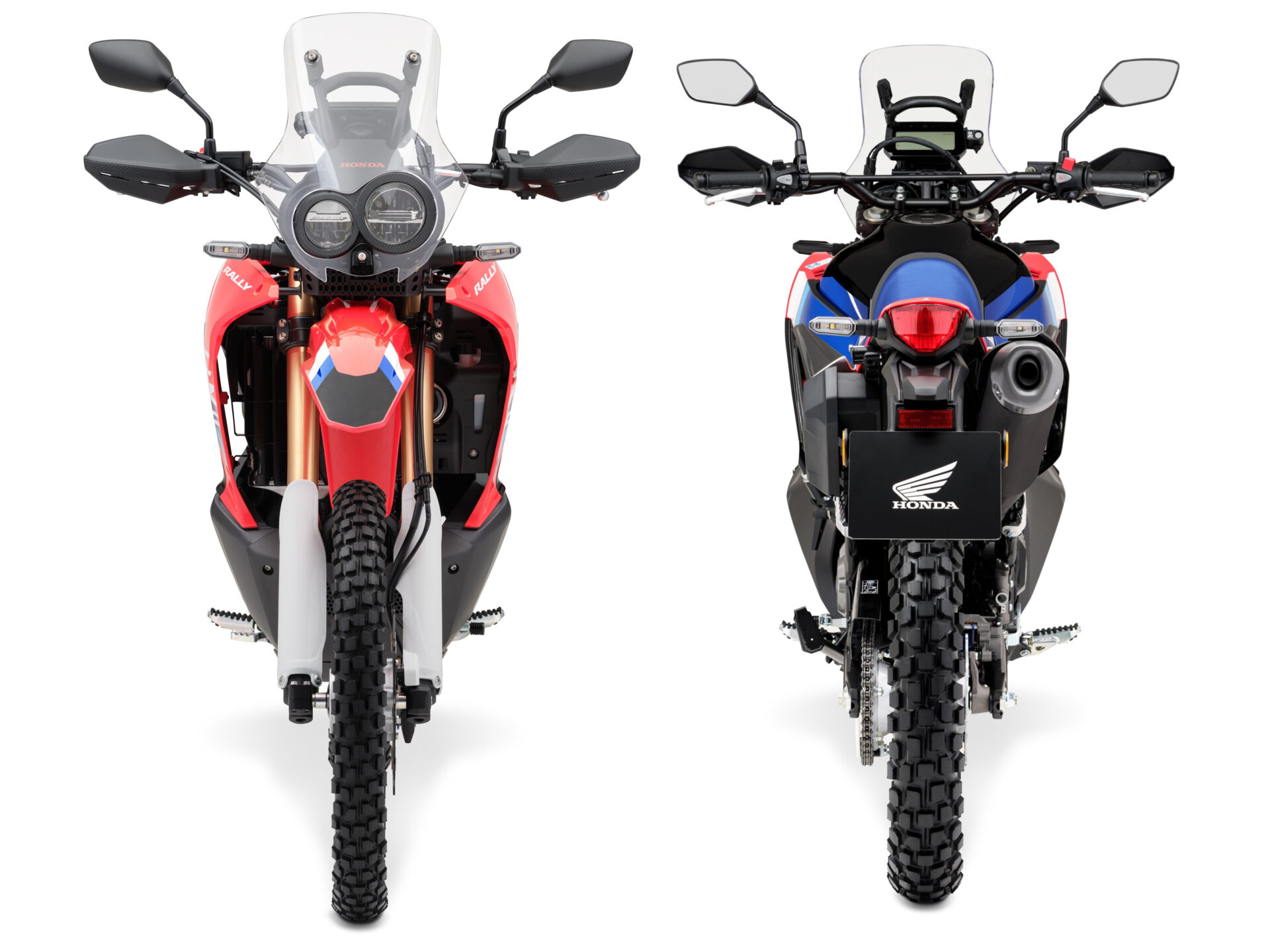

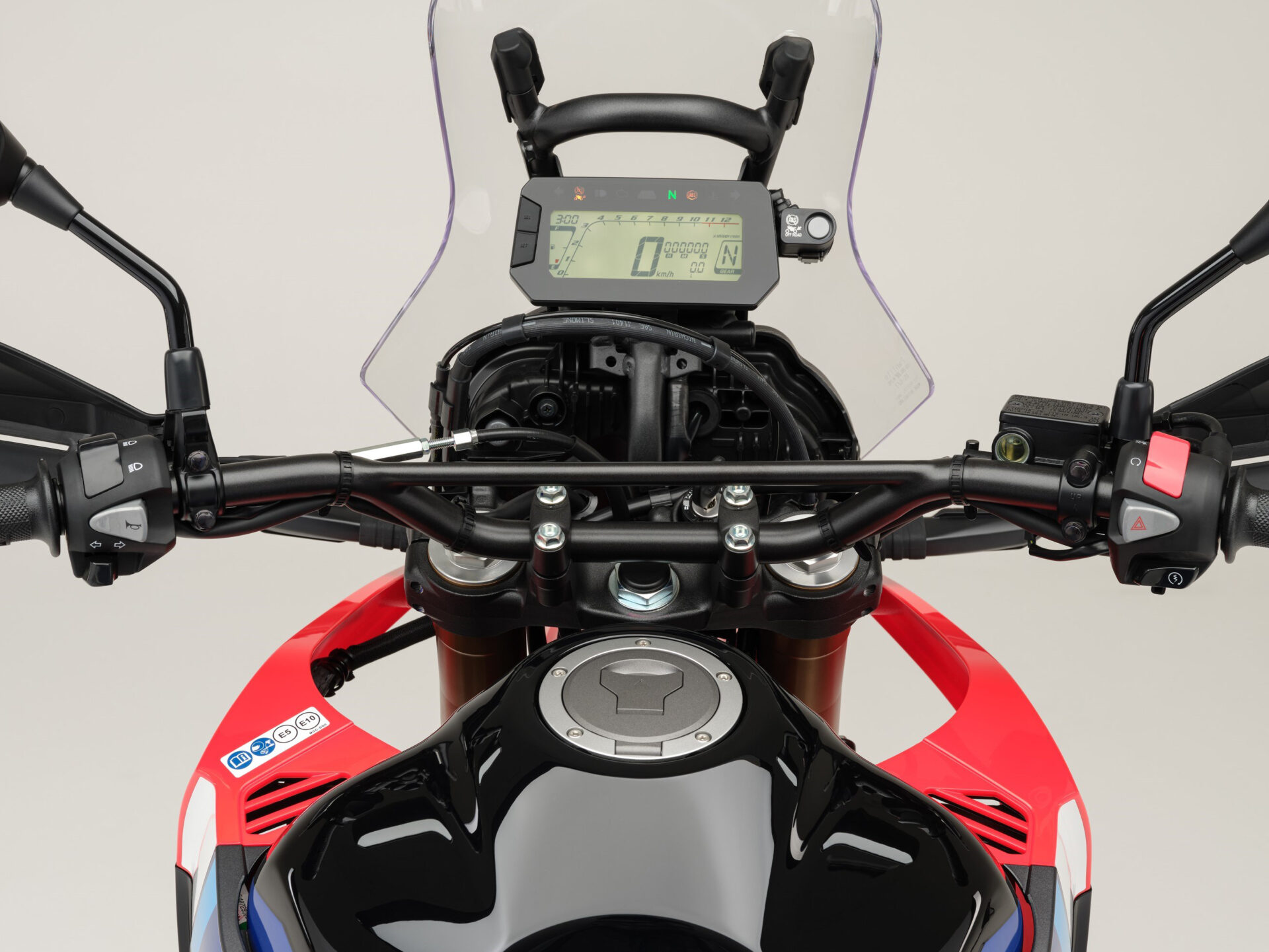

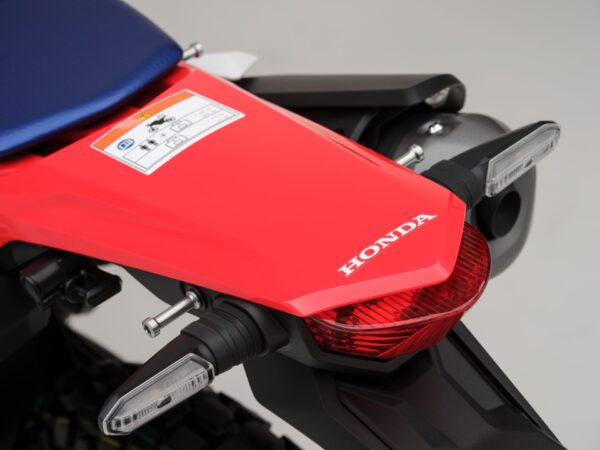

Honda CRF300L Rally 2025 Extreme Red dashboard Honda CRF300L Rally 2025 Extreme Red front Honda CRF300L Rally 2025 Extreme Red back
