Honda Gold Wing (2011-2017)

Goldwing GL1800

Successors: standard and Tour

Updated: 5 February 2025


Category: Tag: Brand:

Specifications and Features

Length

2630 mm

Width

945 mm

Height

1445 mm

Seat Height

740 mm

Weight

– 413 kg wet
– Max load: 186 kg

Engine

1832 cc horizontally opposed 6-cylinder, liquid-cooled

Power

117 hp @ 5500 rpm

Power to weight ratio

28 HP/100kg

Torque

167 Nm @ 4000 rpm

Torque to weight ratio

40 Nm/100kg

Transmission

– 5-speed manual with overdrive, wet multi-plate clutch, + reverse
– Shaft final drive

Fuel Capacity

25 litres

Suspension

– Front: 45 mm telescopic fork with anti-dive, 140 mm travel
– Rear: mono-shock, adjustable preload, 105 mm travel
– Electronic suspension

Tyres

– Front: 130/70-18 (-46 cm)
– Rear: 180/60-16 (-41 cm)

Brakes

– Front: 296 mm floating discs, 3-piston calipers
– Rear: 316 mm disc, 3-piston caliper
– ABS available, linked brakes

Instruments

– Analogue speedometer tachometer, fuel gauge and engine temperature, LCD display with odometer, dual trip meters, ambient temperature, clock. Optional: TFT display with navigation system

Other

– Cruise control, USB port in top case, 150 litres of remote locking storage, audio system with radio and iPod compatibility, heated grips and seats, adjustable screen, TPMS, centre stand. Optional: Airbag system

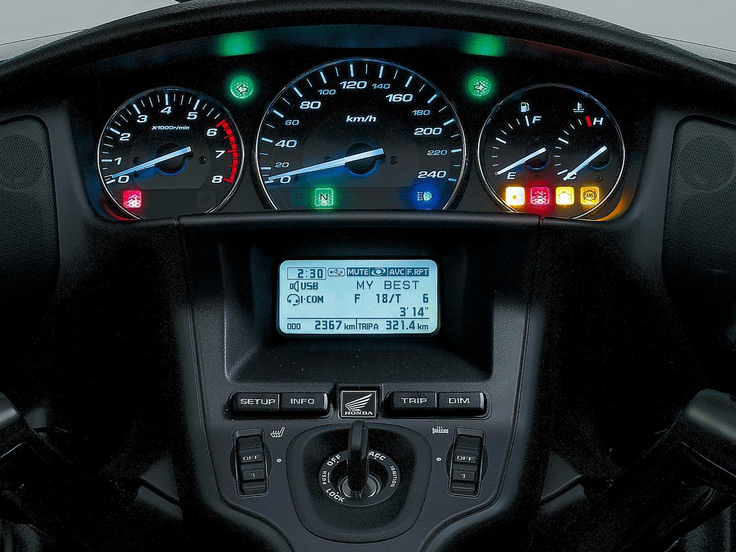

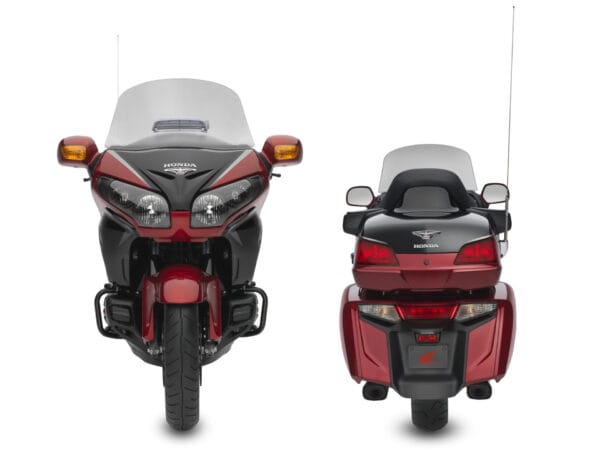

Honda Gold Wing 2012 dashboardHonda Gold Wing 2013 Titanium Blade Metallic frontHonda Gold Wing 2012 black back
