Honda NX500 (2024+)
“NX means ‘New X-over’ …”, “New wheels save 1.5kg of unsprung weight” but I liked the old ones better
2026+ update: added option with the E-Clutch system.
Updated: 12 July 2024
Specifications and Features
| Length | 2165 mm |
|---|---|
| Width | 830 mm |
| Height | 1415 mm |

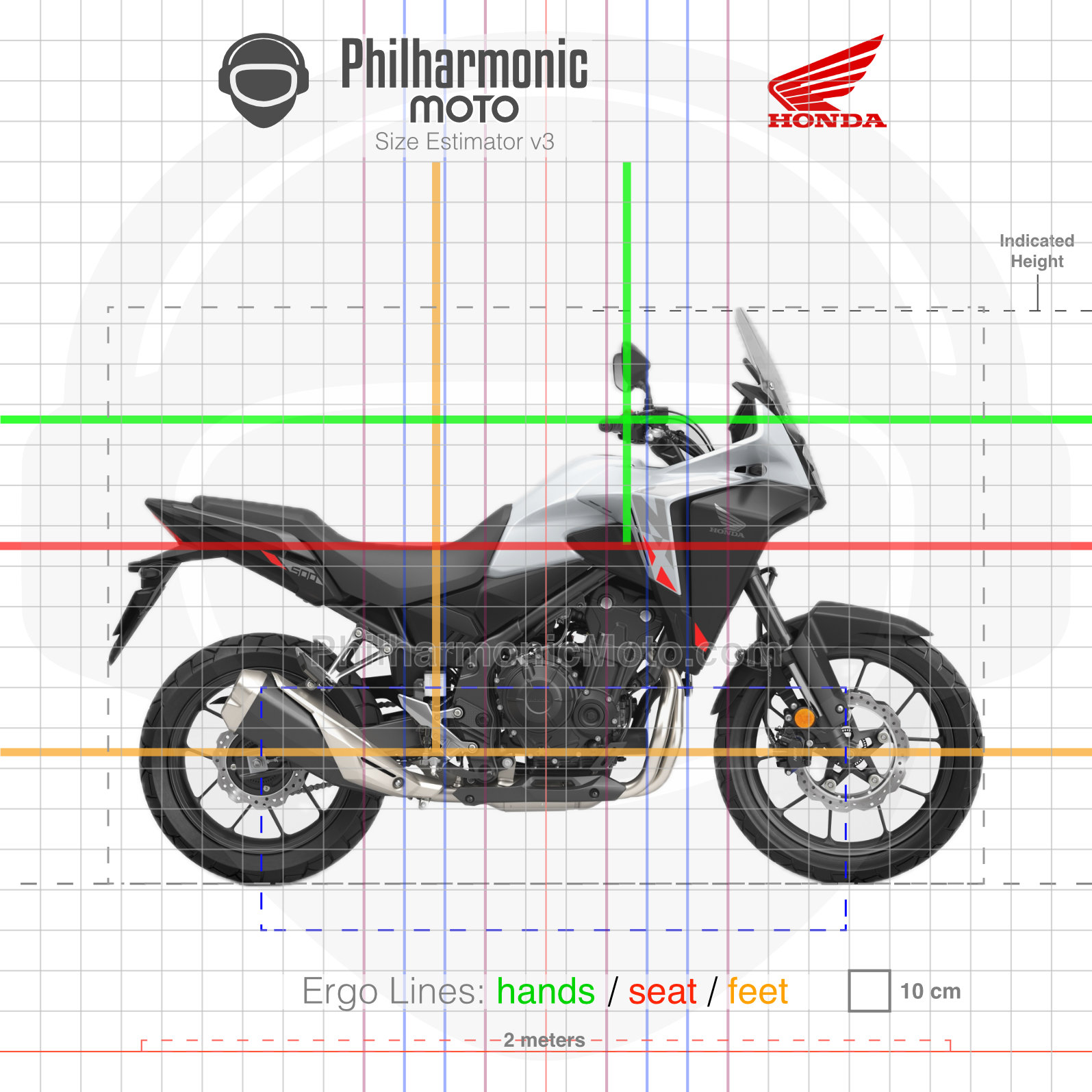

| Seat Height | 830 mm |
| Weight | – 196 kg wet (E-Clutch: 199) |
| Engine | 471 cc Parallel-twin, liquid-cooled |
| Power | 47 hp @ 8600 rpm |
| Power to weight ratio | 24 HP/100kg |
| Torque | 43 Nm @ 6500 rpm |
| Torque to weight ratio | 22 Nm/100kg |
| Transmission | – 6-speed, wet multi-plate slip/assist clutch |
| Fuel Capacity | 17,5 litres |
| Suspension | – Front: 41 mm inverted fork, 135 mm travel |
| Tyres | – Front: 110/80-19 (-48 cm) |
| Brakes | – Front: 296 mm discs, 2-piston radial calipers |

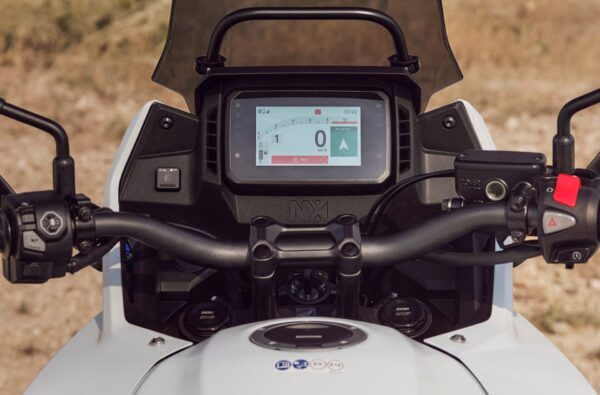

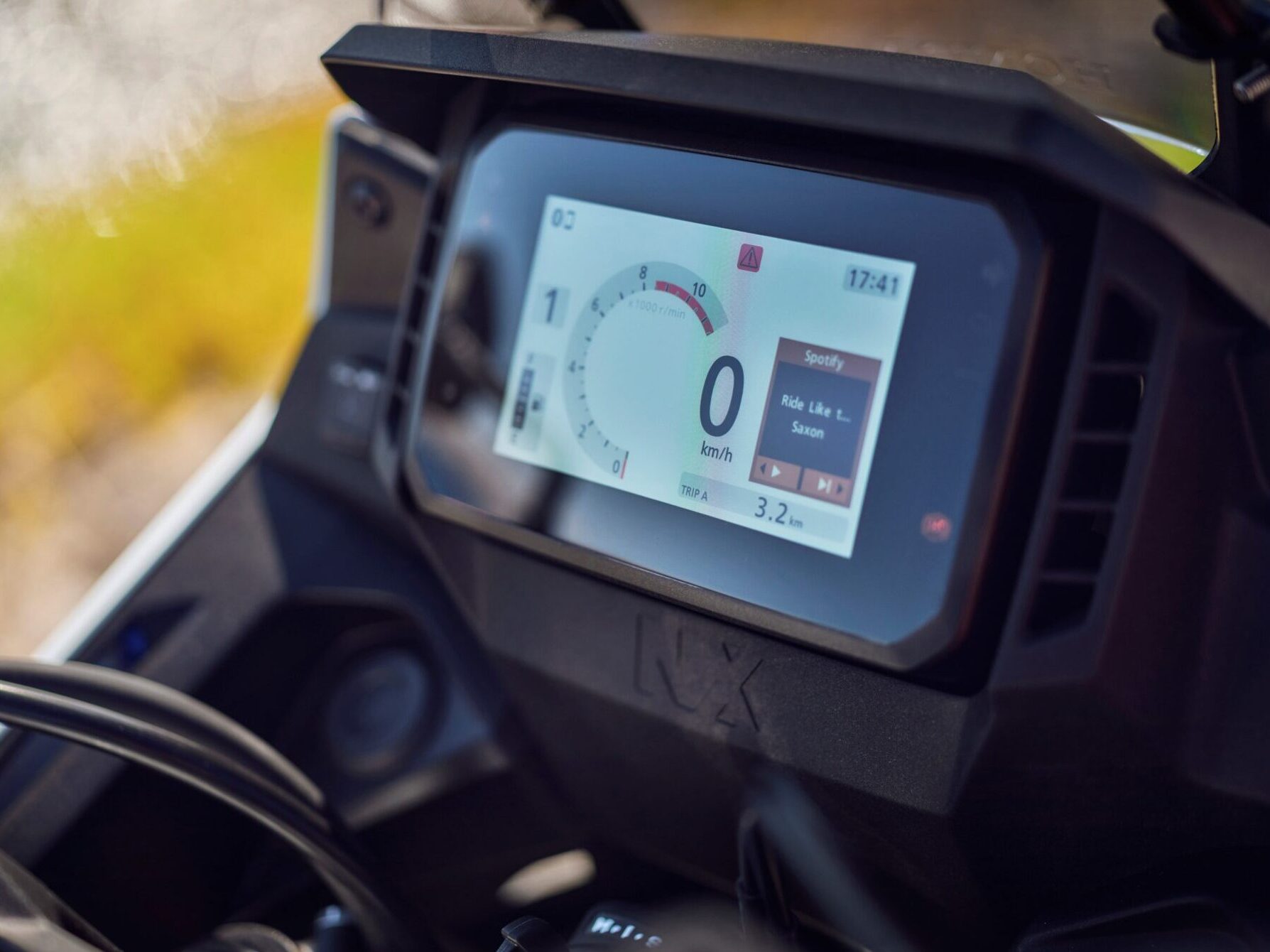

| Instruments | – 13 cm (5") TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, shift-up indicator, coolant temperature, clock |

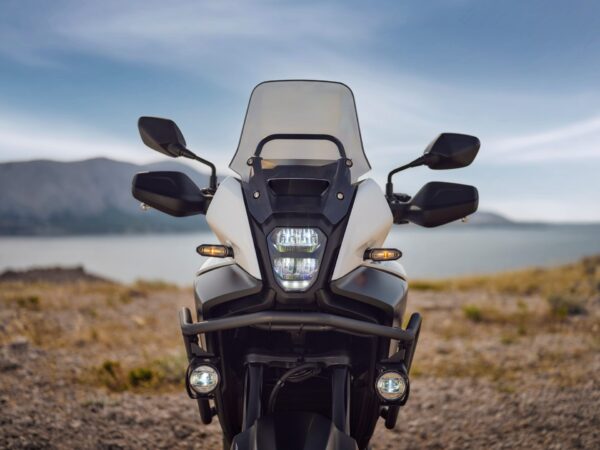

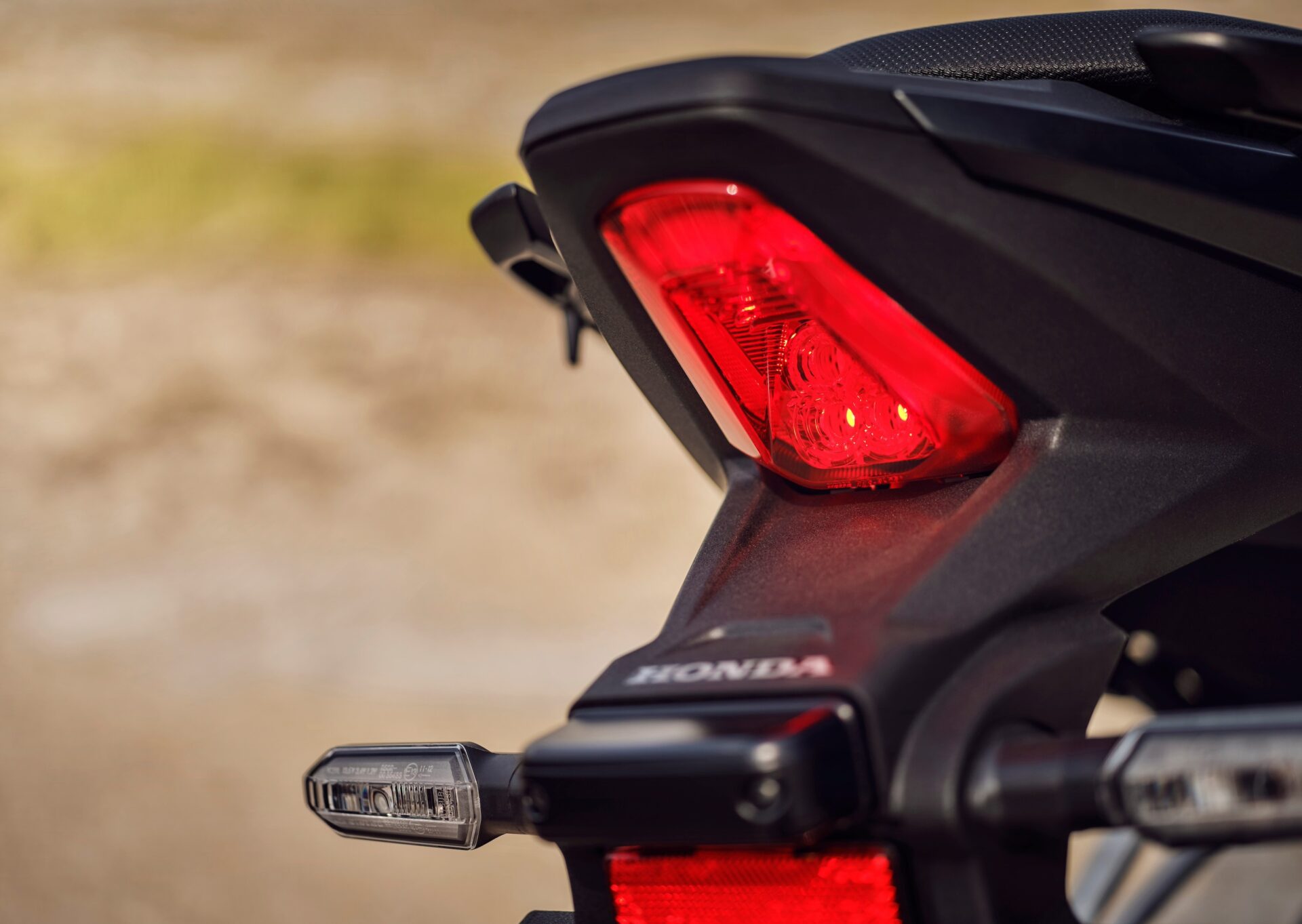

| Other | – LED lights, emergency braking blinking lights |
