Honda PCX125 DX (2025+)

“Also integral to the formula is an ‘X’ level of Personal Comfort (thus PCX)…” press release.

Comparison with previous model and base model.

Updated: 7 November 2024


Brand: Style:
Share:

Specifications and Features

Engine

125 cc Single-cylinder, liquid-cooled

Power

12 hp @ 8750 rpm

Power to weight ratio

9 HP/100kg

Torque

12 Nm @ 6500 rpm

Torque to weight ratio

9 Nm/100kg

Transmission

– Automatic CVT, centrifugal dry clutch
– Belt final drive

Fuel Capacity

8,1 litres

Length

1935 mm

Width

740 mm

Height

1125 mm

Weight

– 134 kg wet
– Max load: 176 kg (estimated)

Seat Height

763 mm

Suspension

– Front: 31 mm telescopic fork, 89 mm travel
– Rear: piggy-back twin-shocks, 95 mm travel

Tyres

– Front: 110/70-14
– Rear: 130/70-13

Brakes

– Front: 220 mm disc, 2-piston caliper
– Rear: 220 mm disc, 1-piston caliper
– ABS (front wheel)

Instruments

– 5" TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, instant and average consumption, dual trip meters, engine temperature, clock
– Smartphone connectivity

Other

– LED lights
– Traction control
– Fully Keyless, 30 litres under seat storage, glovebox with USB-C socket, centre stand, start-stop system. Optional: heated grips, keyless 35 litres topbox, "loud security buzzer"

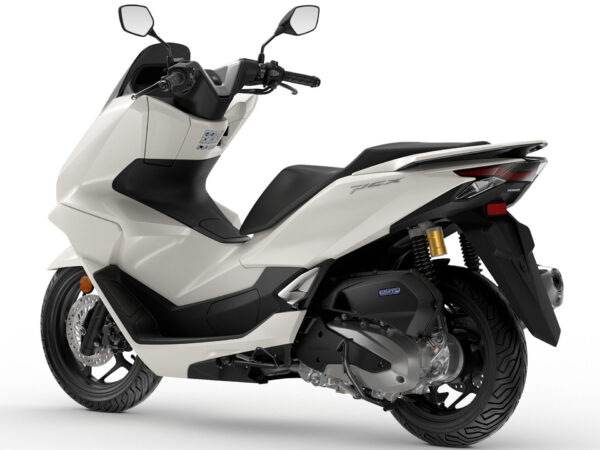

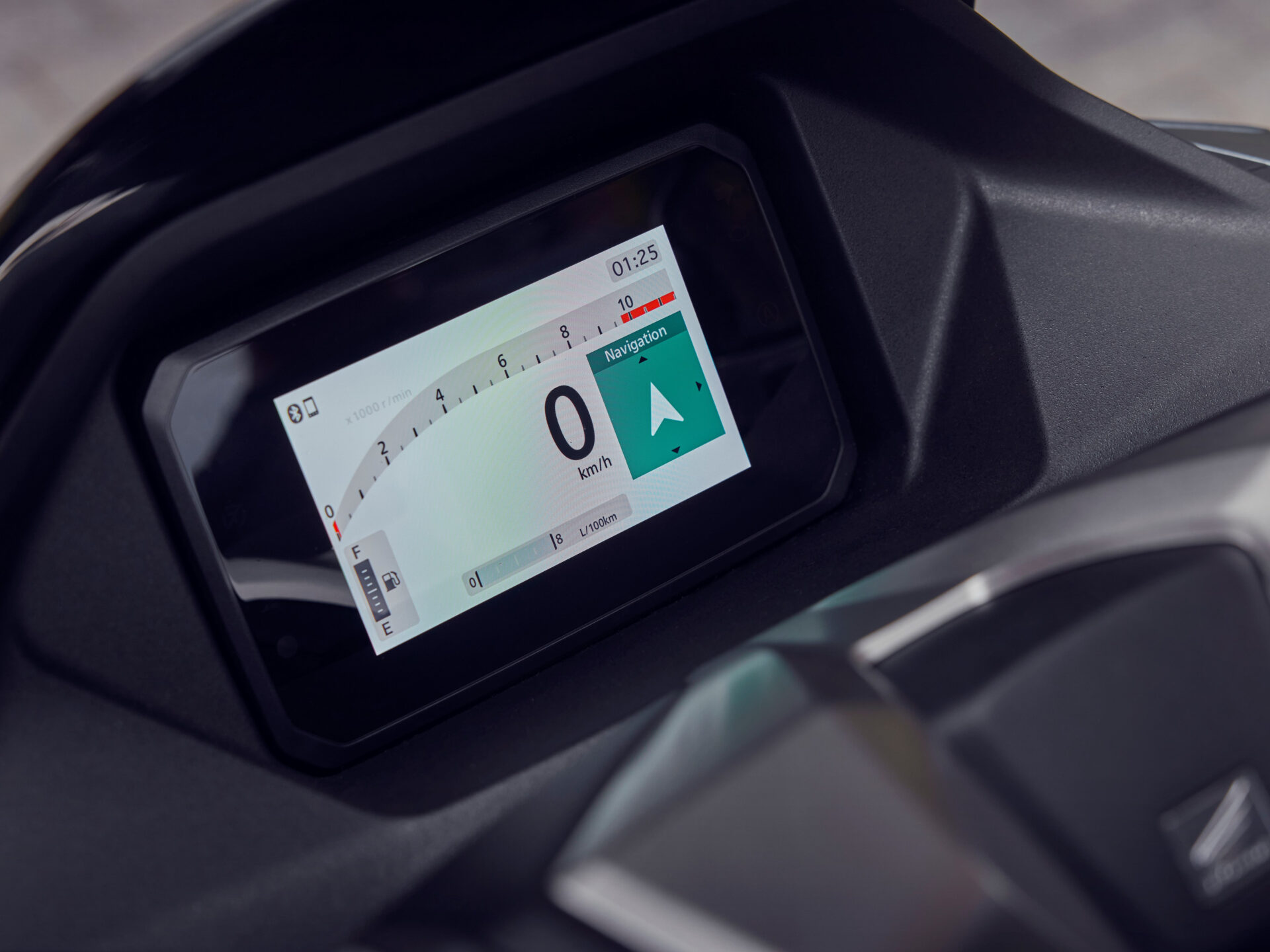

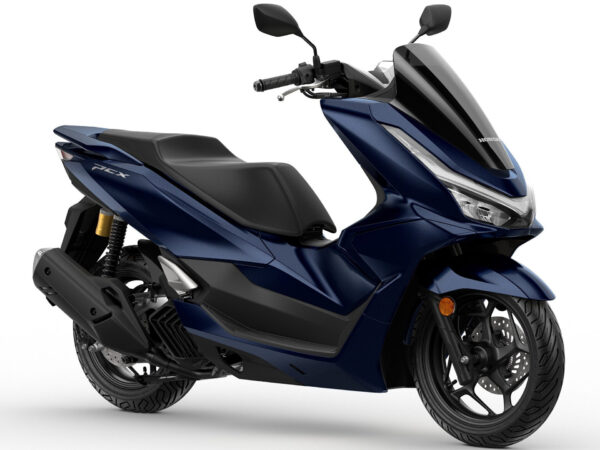

Honda PCX125 DX 2025 dashboard Honda PCX125 DX 2025 Pearl Dark Ash Blue front Honda PCX125 DX 2025 Pearl Snowflake White back
