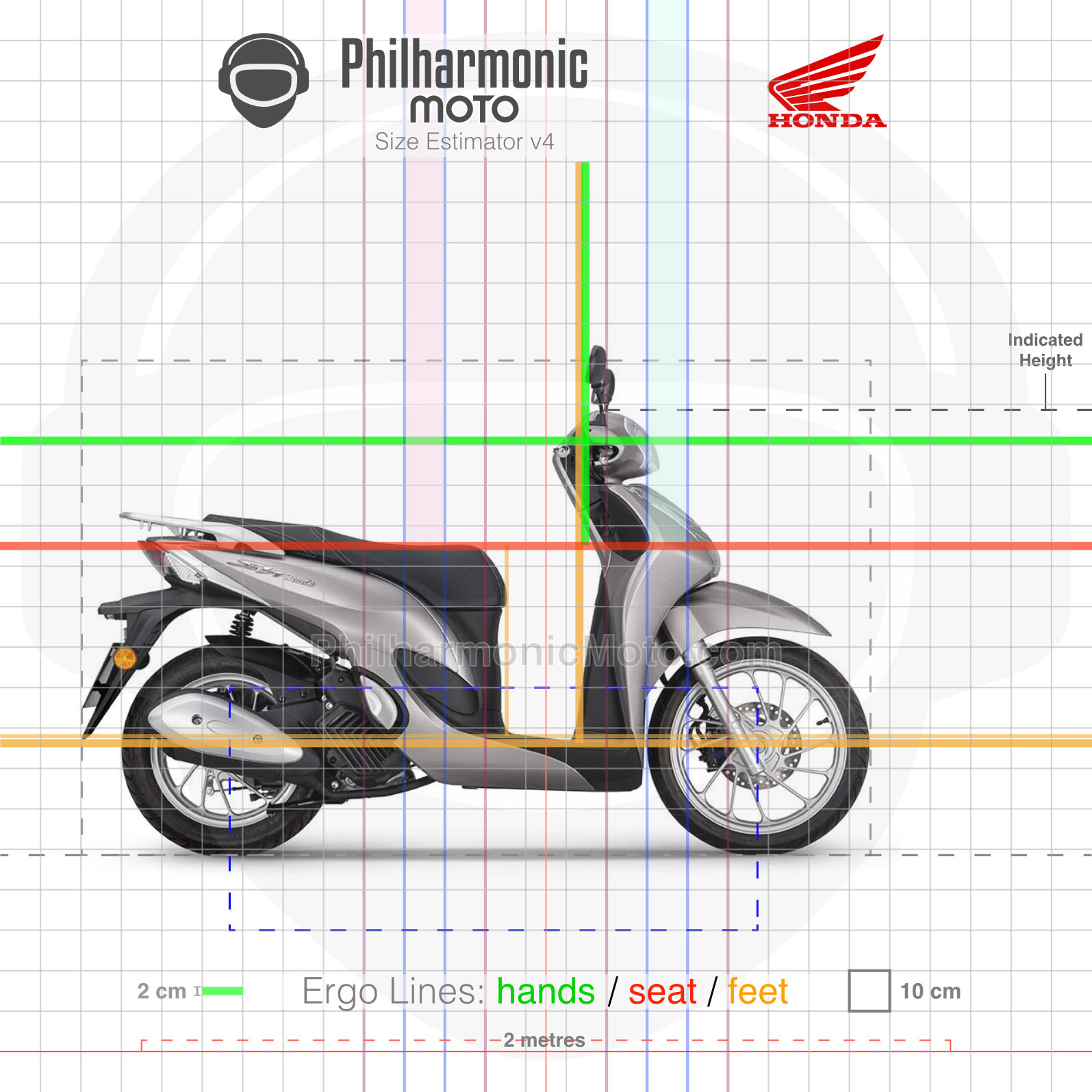

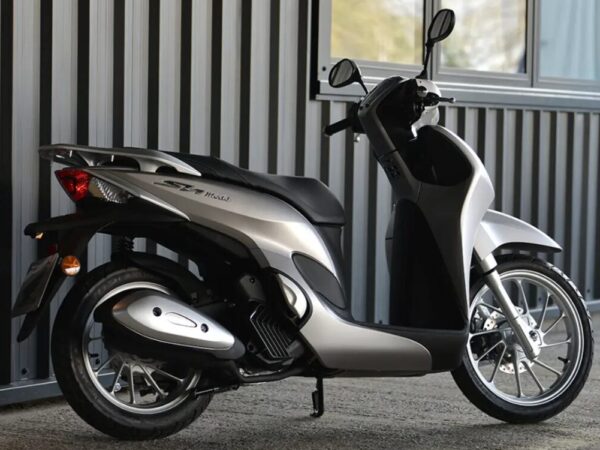

Honda SH Mode 125 (2021+)




Brand: Style:
Share:

Specifications and Features

Engine

125 cc Single-cylinder, liquid-cooled

Power

11 hp @ 8500 rpm

Power to weight ratio

9 HP/100kg

Torque

12 Nm @ 5000 rpm

Torque to weight ratio

10 Nm/100kg

Transmission

– Automatic CVT, centrifugal clutch
– Belt final drive

Fuel Capacity

5,5 litres

Length

1950 mm

Width

670 mm

Height

1100 mm

Weight

– 118 kg wet
– Max load: 177 kg (Vietnam: 266)

Seat Height

765 mm

Suspension

– Front: 33 mm telescopic fork, 89 mm travel
– Rear: mono-shock, adjustable preload, 75 mm travel

Tyres

– Front: 80/90-16
– Rear: 100/90-14

Brakes

– Front: 220 mm disc
– Rear: 130 mm drum
– CBS (combined braking)

Instruments

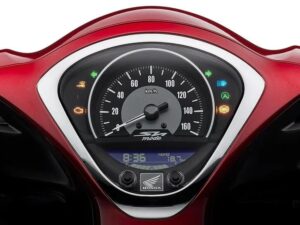

– Analogue speedometer, LCD display with odometer, fuel gauge, trip meters, clock

Other

– LED headlight

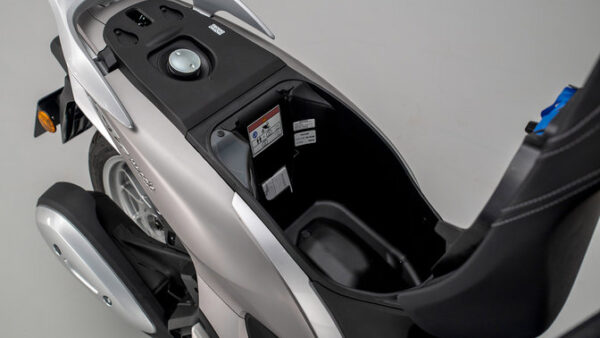

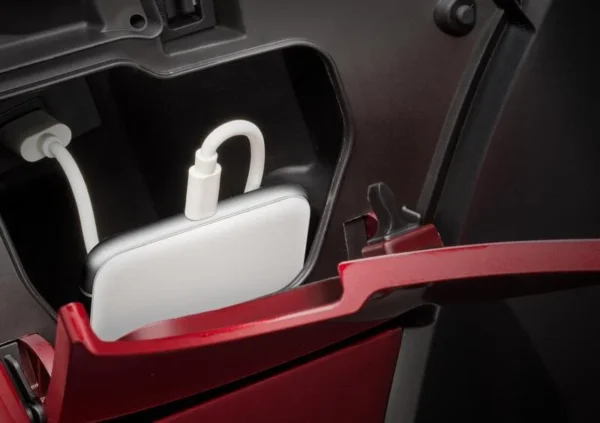

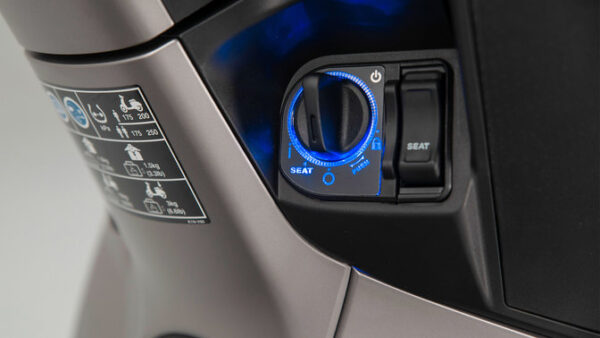

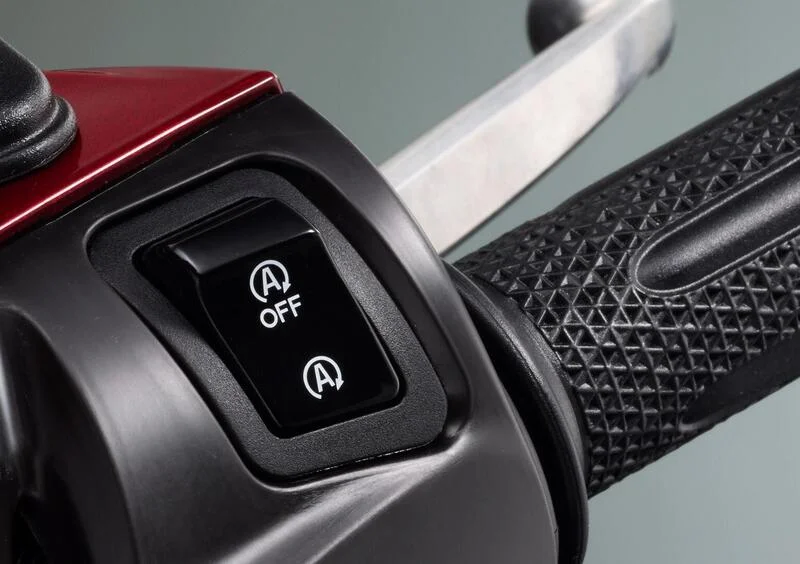

– Keyless ignition and seat lock, 18,5 litres under seat compartment, front storage with USB-A port, centre stand, start-stop system. Optional: keyless 35 litres top case

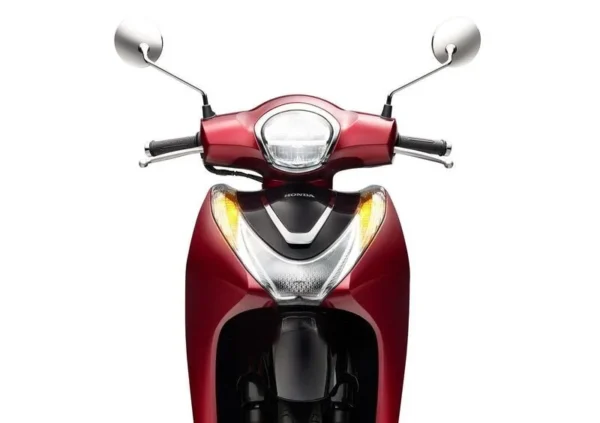

Honda SH Mode 125 2021 dashboard Honda SH Mode 125 2024 Candy Luster Red front Honda SH Mode 125 2024 back
