Honda XR150L (2023+)




Category: Tag: Brand:

Specifications and Features

Length

2075 mm

Width

810 mm

Height

1130 mm

Seat Height

839 mm

Weight

– 129 kg wet
– Max load: 141 kg

Engine

149 cc Single-cylinder, air-cooled, carbureted

Power

13 hp @ 7750 rpm

Power to weight ratio

10 HP/100kg

Torque

?

Torque to weight ratio

Transmission

– 5-speed manual, wet multi-plate clutch
– Chain final drive

Fuel Capacity

10,5 litres

Suspension

– Front: 31 mm telescopic fork, 160 mm travel
– Rear: mono-shock, 149 mm travel

Tyres

– Front: 90/90-19 (-48 cm)
– Rear: 110/90-17 (-43 cm)

Brakes

– Front: 240 mm disc, 1-piston caliper
– Rear: 110 mm drum

Instruments

– Analogue speedometer, odometer, trip meter

Other

– Optional: 12v socket

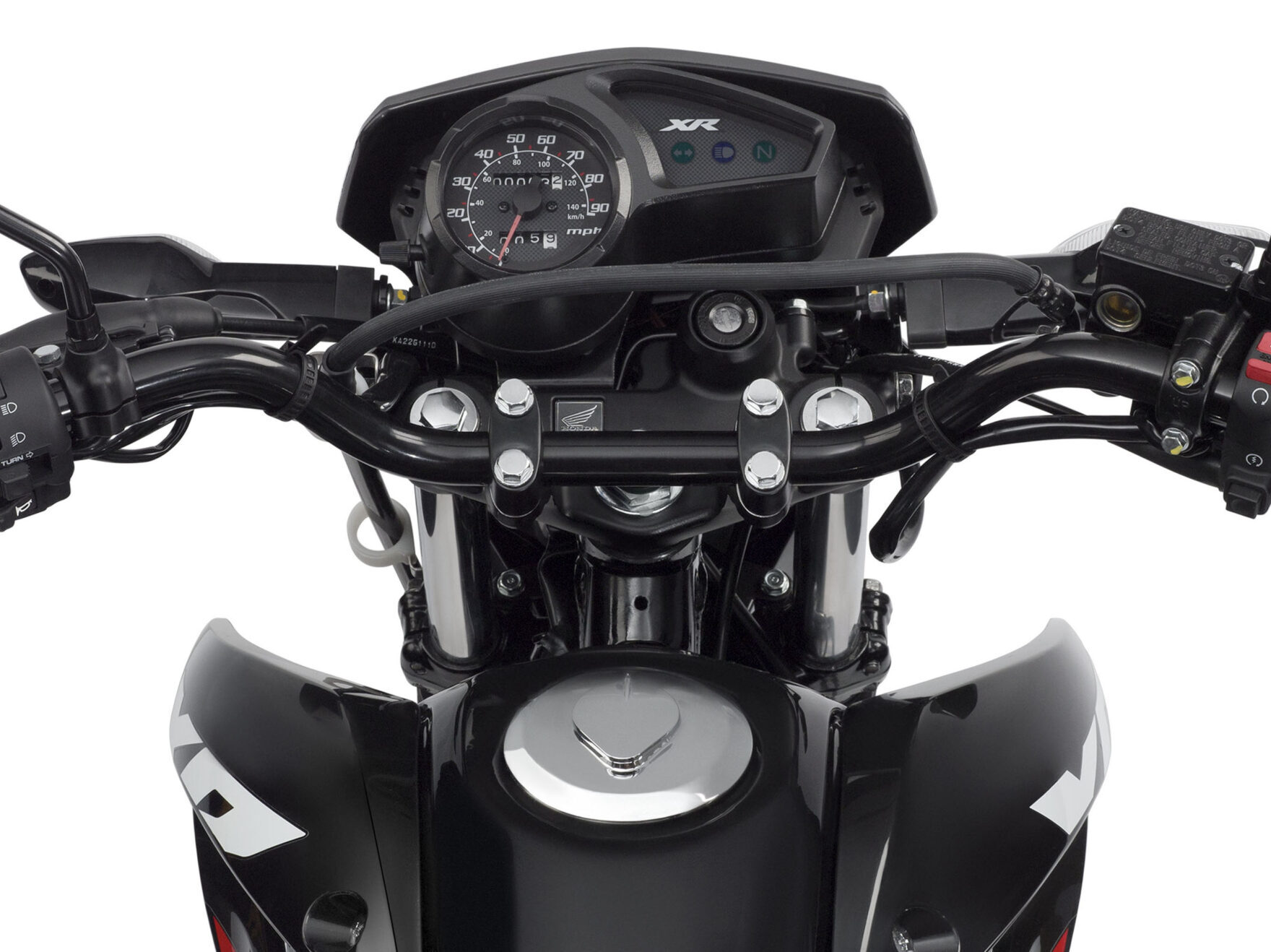

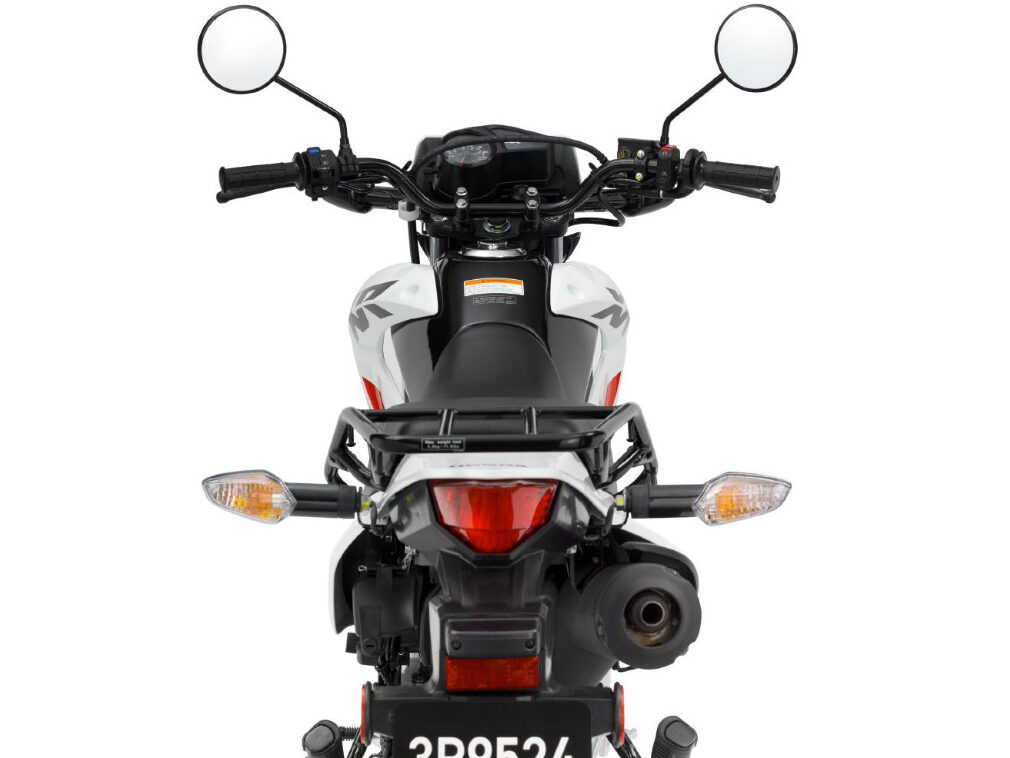

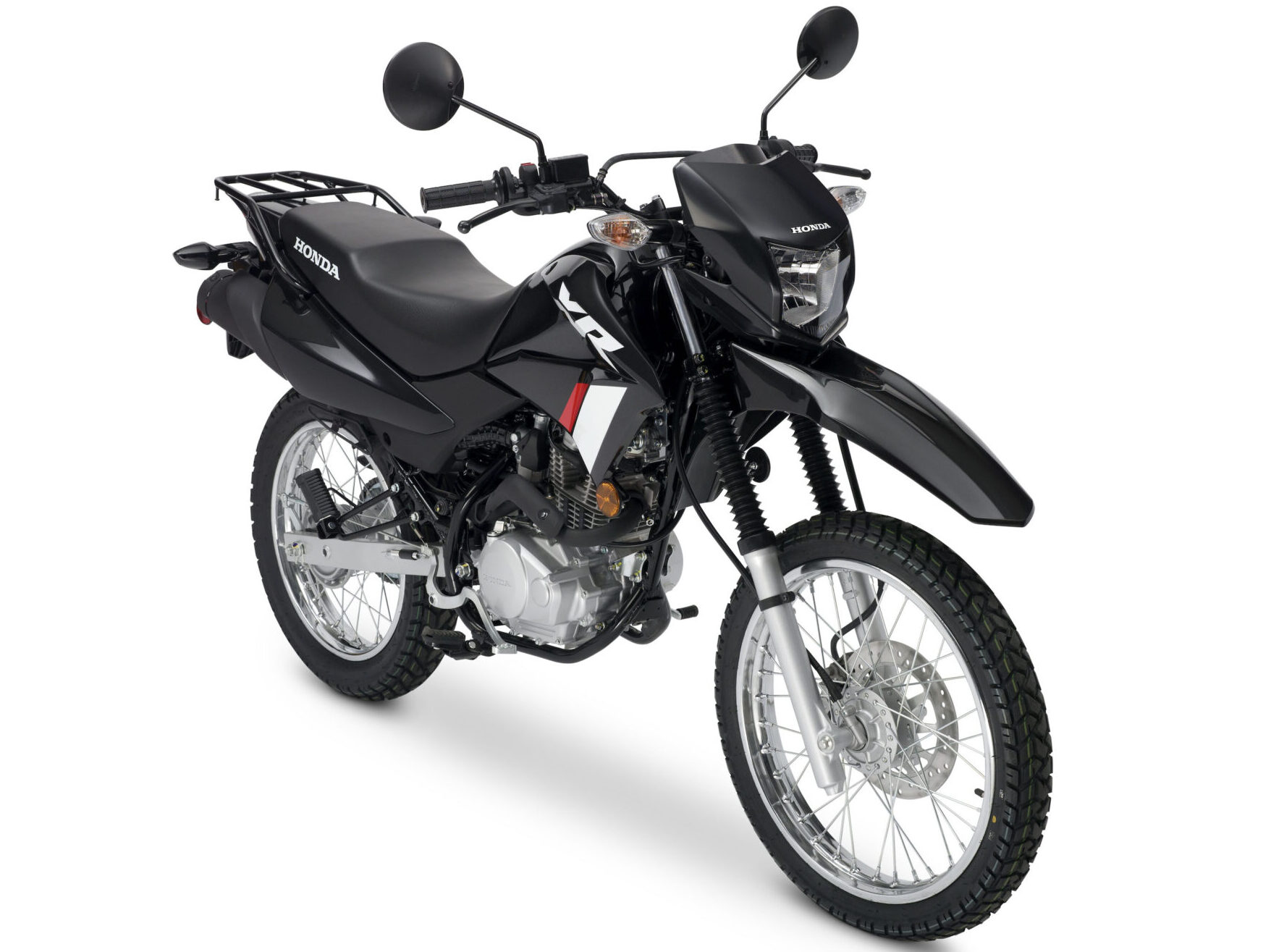

Honda XR150L 2023 dashboard Honda XR150L 2023 front Honda XR150L 2023 back
