Kawasaki Vulcan 1700 Voyager (2009+)

VN1700A, VN1700B. In Europe until 2016

Updated: 2 July 2024


Category: Tag: Brand:

Specifications and Features

Length

2560 mm

Width

995 mm

Height

1550 mm

Seat Height

730 mm

Weight

– 406 kg
– Max load: 180 kg

Engine

1700 cc V-twin, liquid-cooled

Power

73 hp @ 5000 rpm

Power to weight ratio

18 HP/100kg

Torque

136 Nm @ 2750 rpm

Torque to weight ratio

34 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Belt final drive

Fuel Capacity

20 litres

Suspension

– Front: 45 mm telescopic fork, 140 mm travel
– Rear: air-assisted twin-shocks, adjustable rebound, 80 mm travel

Tyres

– Front: 130/90-16 (-41 cm)
– Rear: 170/70-16 (-41 cm)

Brakes

– Front: 300 mm discs, 4-piston calipers
– Rear: 300 mm disc, 2-piston caliper
– ABS available, combined braking

Instruments

– Analogue speedometer, tachometer, fuel gauge, engine temperature, LCD display with odometer, gear indicator, range, average consumption, trip meters, clock

Other

– LED taillight
– Cruise control, audio system, "Ignition switch allows key removal in the on position, which prevents keys from damaging the black finish tank cover during operation."

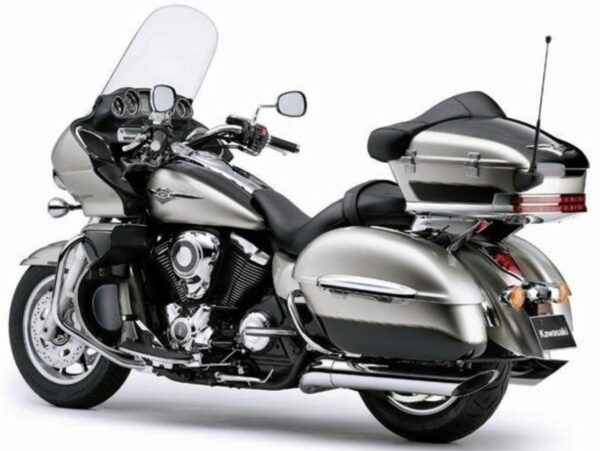

Kawasaki Vulcan 1700 Voyager 2023 dashboard Kawasaki Vulcan 1700 Voyager 2023 front Kawasaki Vulcan 1700 Voyager 2009 back
