KTM 1390 Super Duke R / Evo (2024+)

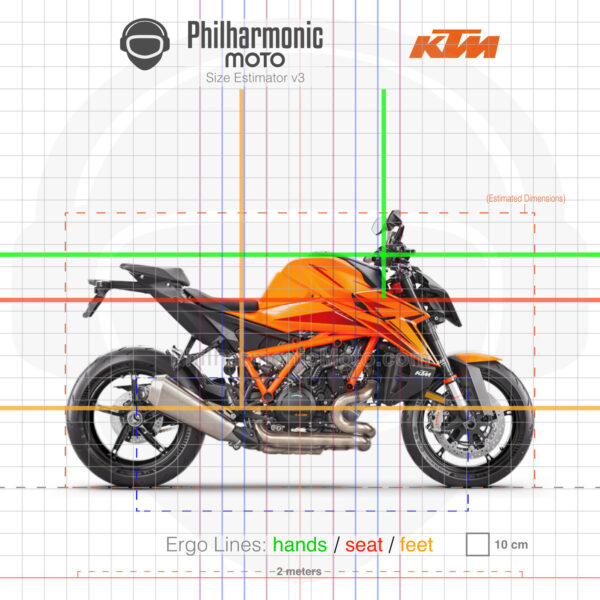

Dimensions are based on wheelbase.

1390 Super Duke R Evo: the difference is the presence of the semi-active suspension, with a blue accent on the forks instead of red.

Updated: 28 October 2024


Brand: Style:
Share:

Specifications and Features

Engine

1350 cc V-twin, liquid-cooled

Power

187 hp @ 10000 rpm

Power to weight ratio

86 HP/100kg

Torque

145 Nm @ 8000 rpm

Torque to weight ratio

67 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist hydraulic clutch
– Chain final drive
– Quick-shifter

Fuel Capacity

17,5 litres

Length

2111 mm (estimated)

Width

Height

1235 mm (estimated)

Weight

– 214 kg wet (estimated)
– Max load: 211 kg (estimated)

Seat Height

834 mm

Suspension

– Front: WP Apex 48 mm inverted fork, fully adjustable, 125 mm travel
– Rear: WP Apex mono-shock, fully adjustable (remote preload), 140 mm travel
– Evo: electronic suspension

Tyres

– Front: 120/70-17
– Rear: 200/55-17

Brakes

– Front: 320 mm floating discs, Brembo Stylema monobloc 4-piston radial calipers
– Rear: 240 mm disc, Brembo 2-piston floating caliper
– Cornering ABS available (switchable rear)

Instruments

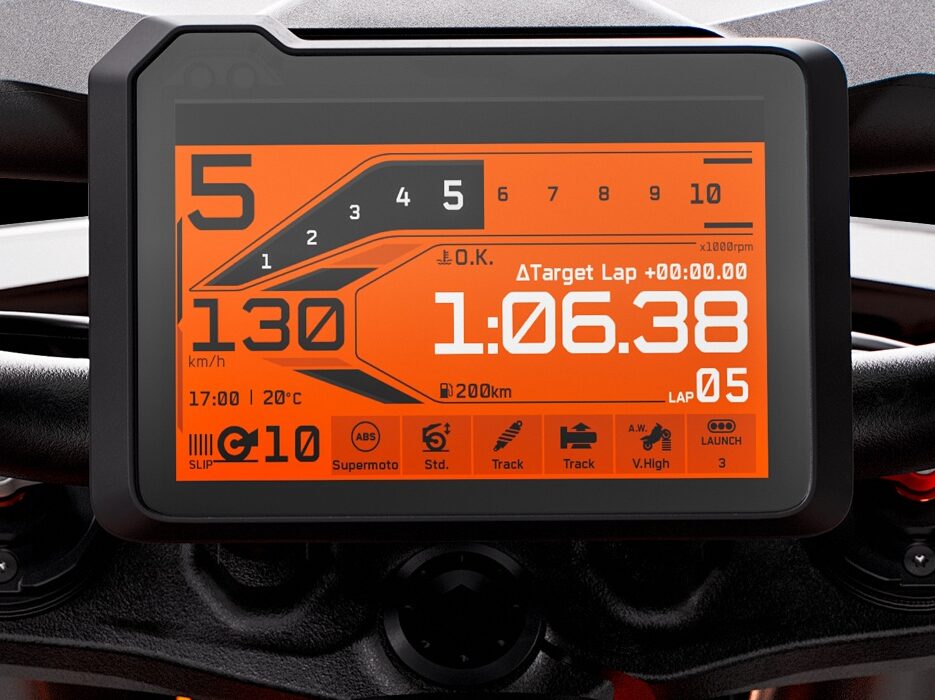

– 5" TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, clock
– Optional: smartphone connectivity

Other

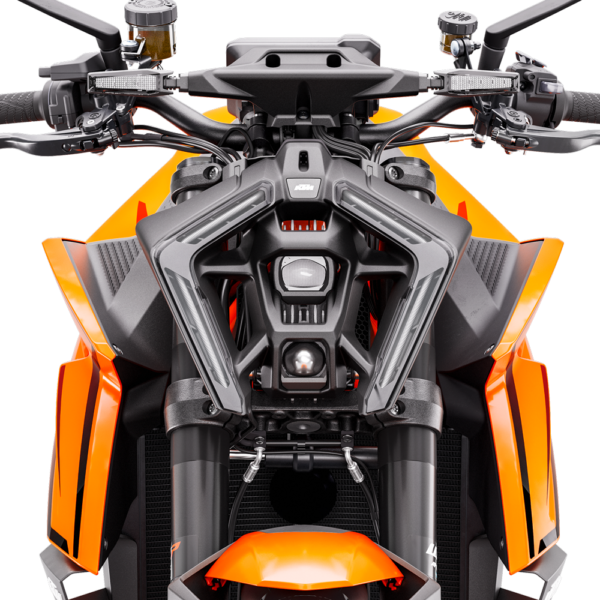

– LED lights
– Riding modes, cornering traction control, wheelie control. Optional: engine brake control, wheelie control
– Cruise control, USB-C port, keyless, TPMS, adjustable: hand and foot levers.

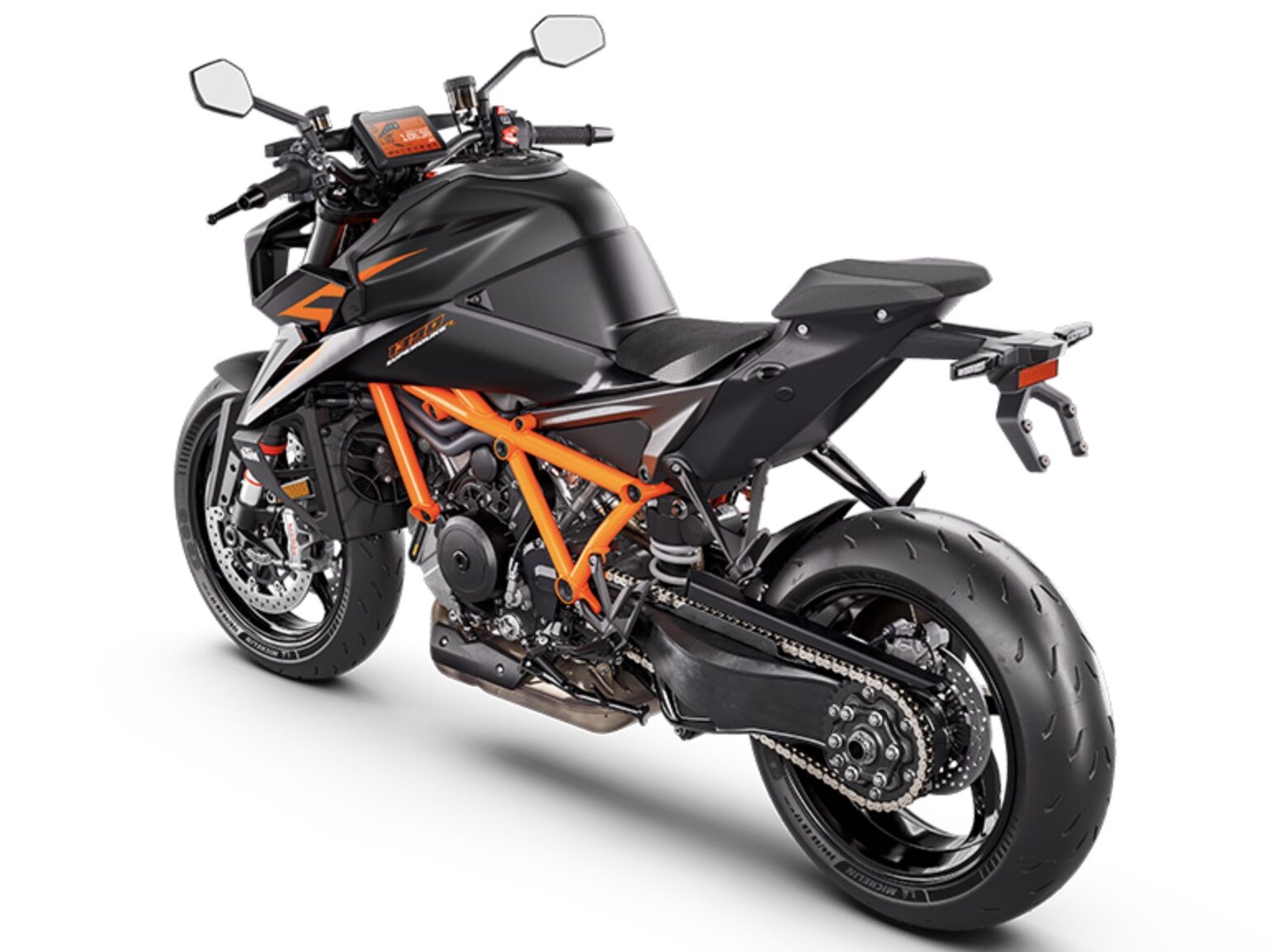

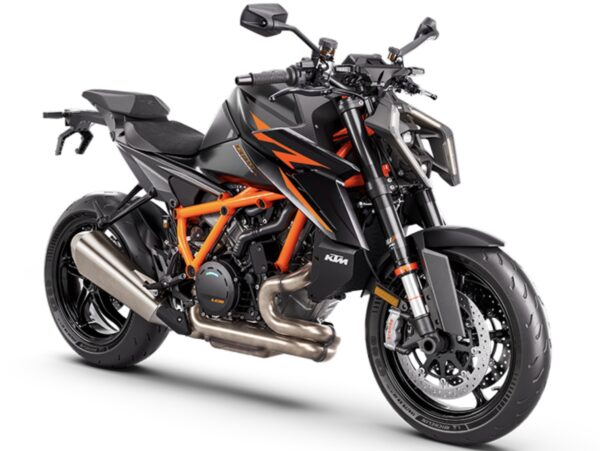

KTM 1390 Super Duke R 2024 dashboard KTM 1390 Super Duke R 2024 black front KTM 1390 Super Duke R 2024 black back
