KTM 390 Adventure R (2025+)

Dimensions are based on wheelbase.

*Dashboard picture of the 390 Duke 2024, but it appears to be the same.

Updated: 30 January 2025


Brand: Style:
Share:

Specifications and Features

Engine

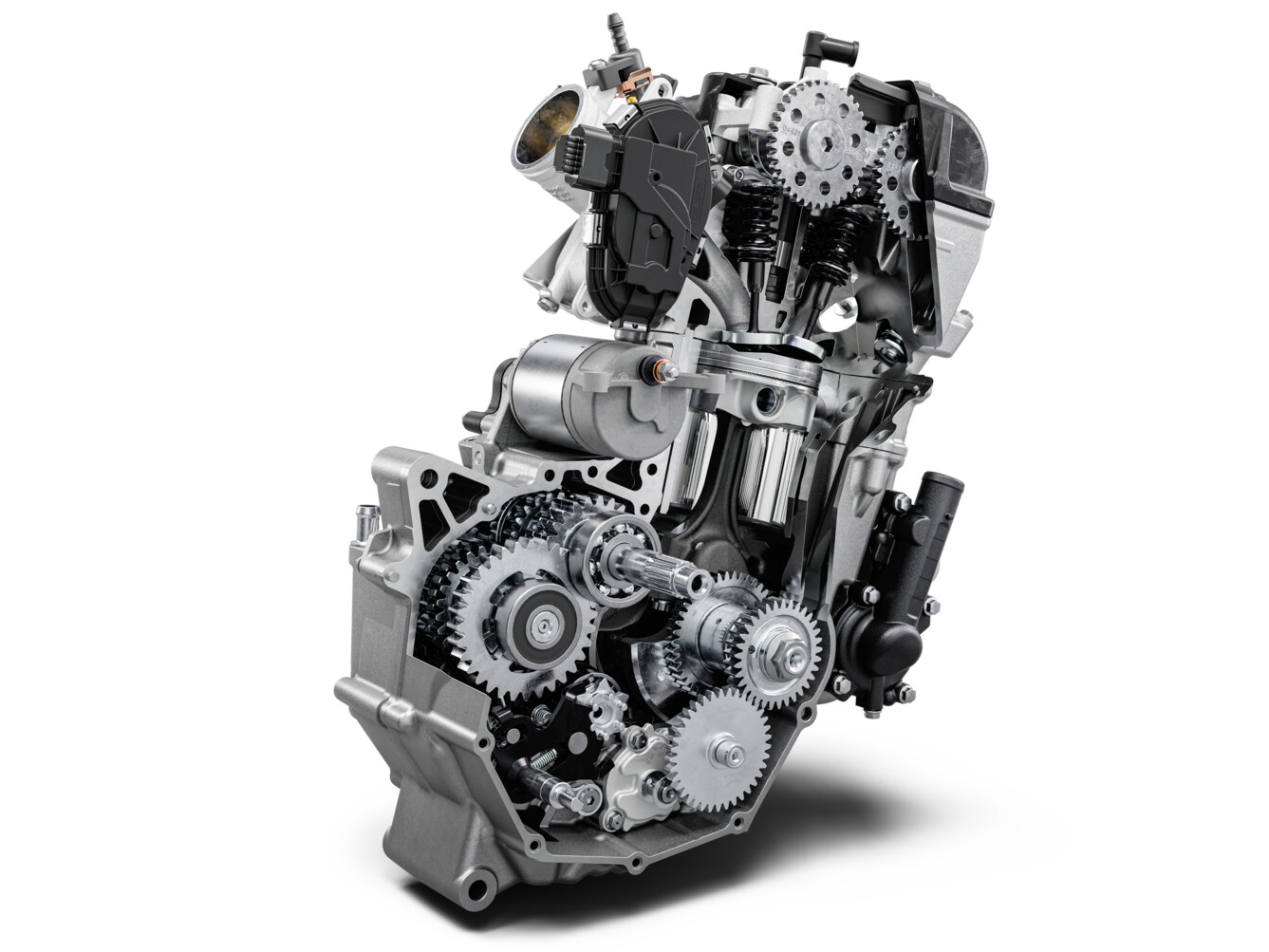

399 cc Single-cylinder, liquid-cooled

Power

44 hp @ 8500 rpm

Power to weight ratio

25 HP/100kg

Torque

39 Nm @ 7000 rpm

Torque to weight ratio

22 Nm/100kg

Transmission

– 6-speed, wet slip/assist clutch
– Chain final drive

Fuel Capacity

14 litres

Length

2212 mm (estimated)

Width

Height

1429 mm (estimated)

Weight

– 176 kg wet (estimated)
– Max load: ?

Seat Height

870 mm

Suspension

– Front: 43 mm inverted fork, adjustable compression and rebound, 230 mm travel
– Rear: mono-shock, adjustable preload and rebound, 230 mm travel

Tyres

– Front: 90/90-21
– Rear: 140/80-18

Brakes

– Front: 320 mm floating disc, Bybre 2-piston radial caliper
– Rear: 240 mm disc, Bybre 1-piston floating caliper
– Cornering ABS available (switchable rear)

Instruments

– 13 cm (5") TFT display with tachometer, speedometer, odometer, gear indicator, fuel gauge, trip meter, lap timer, speed limiter, clock*
– Smartphone connectivity

Other

– LED lights
– Riding modes, cornering traction control (switchable)
– USB-C port, adjustable hand levers and footpegs. Optional: cruise control

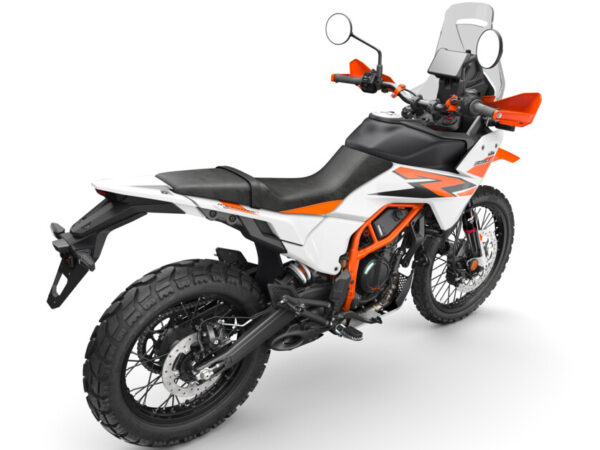

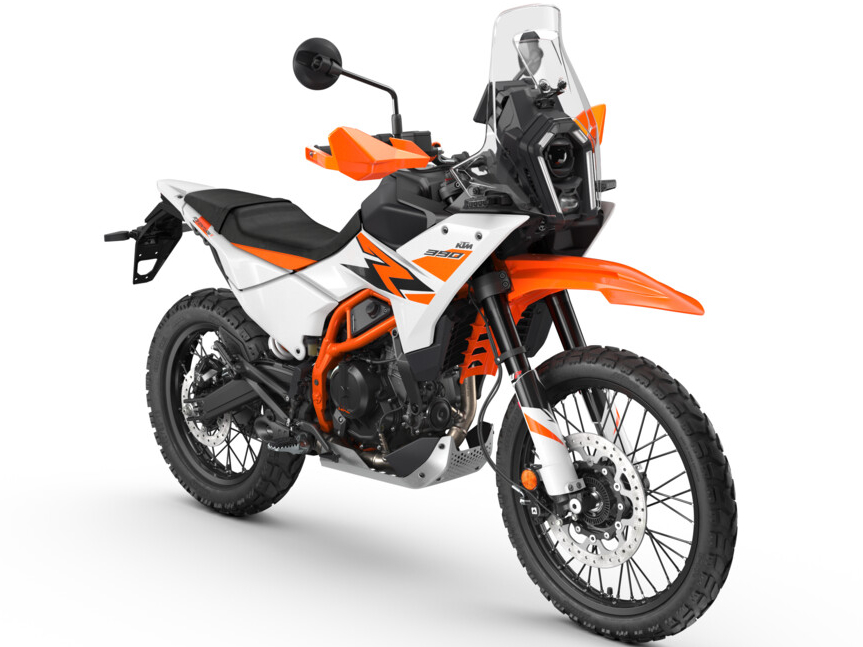

KTM 390 Adventure R 2025 orange dashboard but it is from the duke KTM 390 Adventure R 2025 white front KTM 390 Adventure R 2025 white back
