KTM 390 Duke (2013-2016)

Estimated dimensions based on wheelbase.

Updated: 21 November 2024


Category: Tag: Brand:

Specifications and Features

Length

1967 mm (estimated)

Width

?

Height

1263 mm (estimated)

Seat Height

800 mm

Weight

– 151 kg wet
– Max load: 202 kg

Engine

373 cc Single-cylinder, liquid-cooled

Power

44 hp @ 9500 rpm

Power to weight ratio

29 HP/100kg

Torque

35 Nm @ 7000 rpm

Torque to weight ratio

23 Nm/100kg

Transmission

– 6-speed, wet slip/assist clutch
– Chain final drive

Fuel Capacity

11 litres

Suspension

– Front: 43 mm inverted fork, 150 mm travel
– Rear: mono-shock, adjustable preload, 150 mm travel

Tyres

– Front: 110/70-17 (-43 cm)
– Rear: 150/60-17 (-43 cm)

Brakes

– Front: 300 mm disc, 4-piston caliper
– Rear: 230 mm disc, 1-piston floating caliper
– ABS available (switchable)

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, average consumption, engine temperature, average speed, clock, shift-up indicator

Other

–

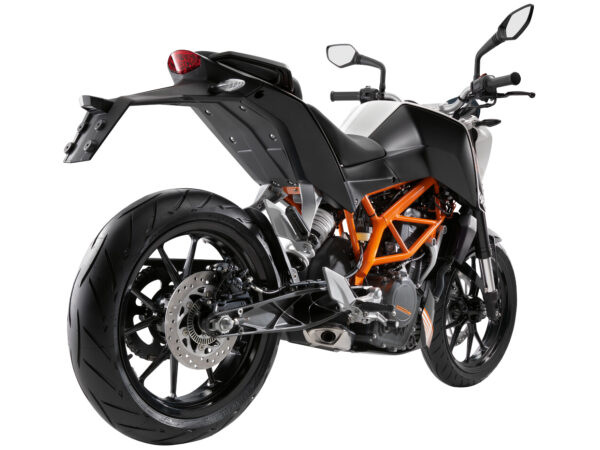

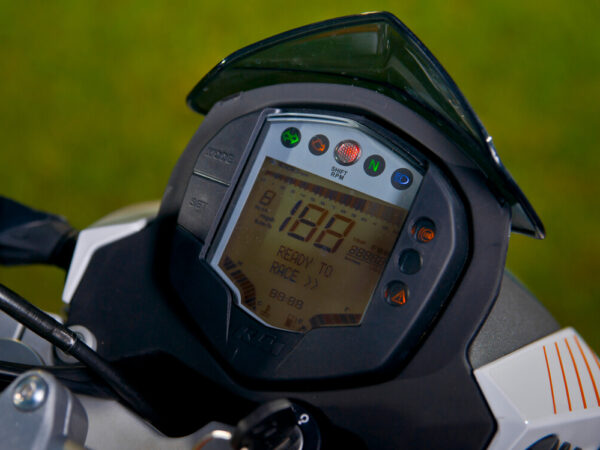

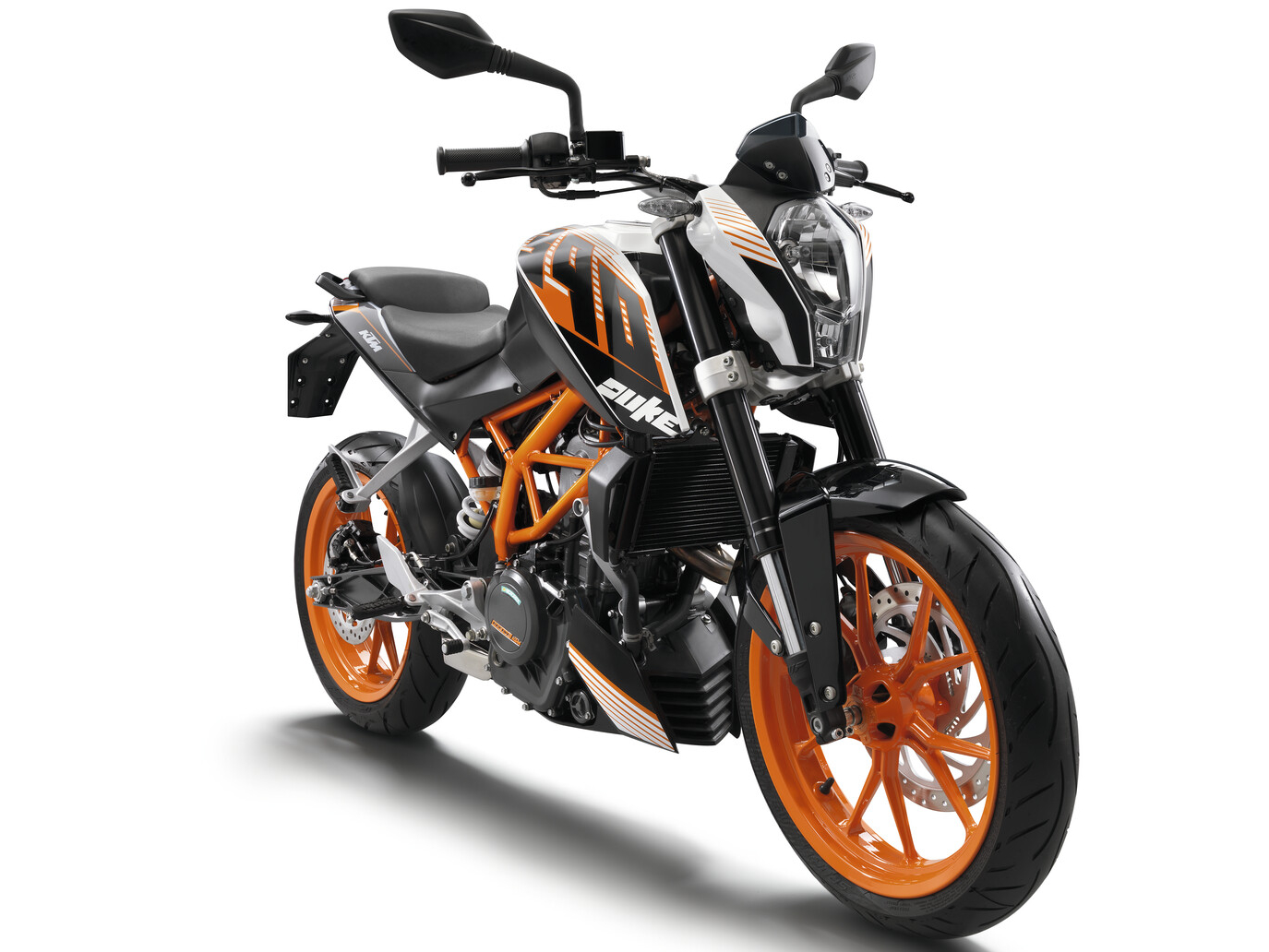

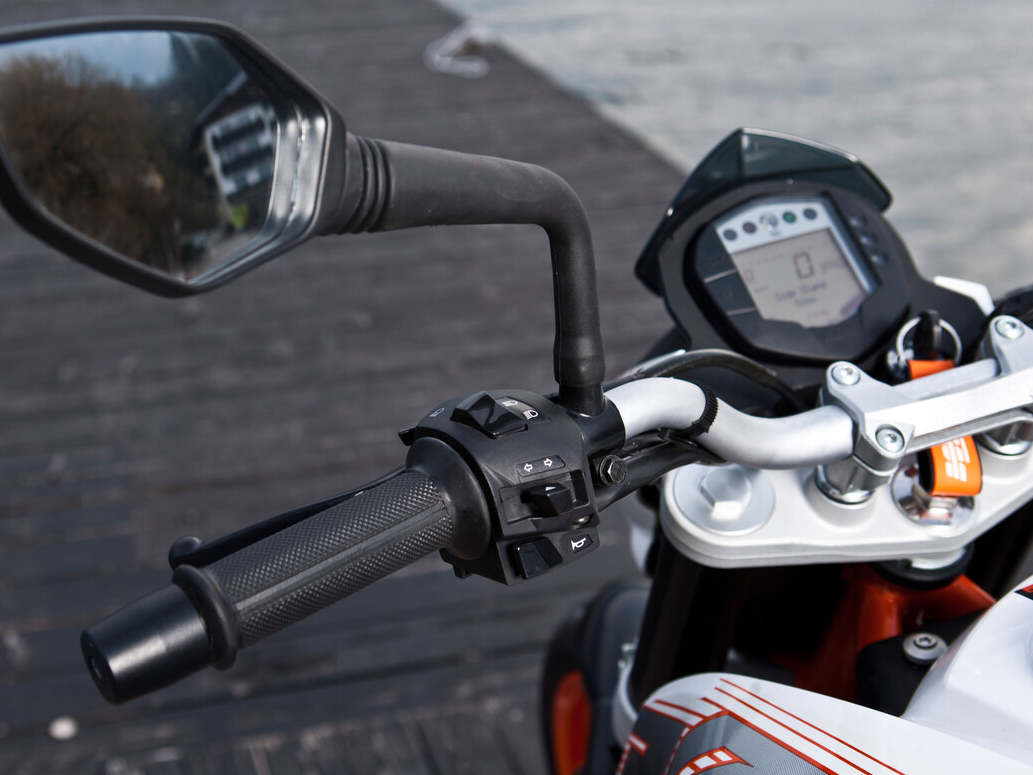

KTM 390 Duke 2013 dashboard KTM 390 Duke 2013 front KTM 390 Duke 2013 back
