Triumph Street Twin (2016-2018)

Successor

Updated: 8 September 2024


Category: Tags: , Brand:

Specifications and Features

Length

2090 mm

Width

785 mm

Height

1114 mm (without mirrors)

Seat Height

750 mm

Weight

– 215 kg wet
– Max load: 210 kg

Engine

900 cc Parallel-twin, liquid-cooled, 270º crank

Power

54 hp @ 5900 rpm

Power to weight ratio

25 HP/100kg

Torque

80 Nm @ 3230 rpm

Torque to weight ratio

37 Nm/100kg

Transmission

– 5-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

12 litres

Suspension

– Front: 41 mm telescopic fork, 120 mm travel
– Rear: twin-shocks, adjustable preload, 120 mm travel

Tyres

– Front: 100/90-18 (-46 cm)
– Rear: 150/70-17 (-43 cm)

Brakes

– Front: 310 mm disc, 2-piston floating caliper
– Rear: 255 mm disc, 2-piston floating caliper
– ABS available

Instruments

– Analogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range, trip meter, clock

Other

– LED brake light
– Traction control (switchable)
– USB port, adjustable brake and clutch levers

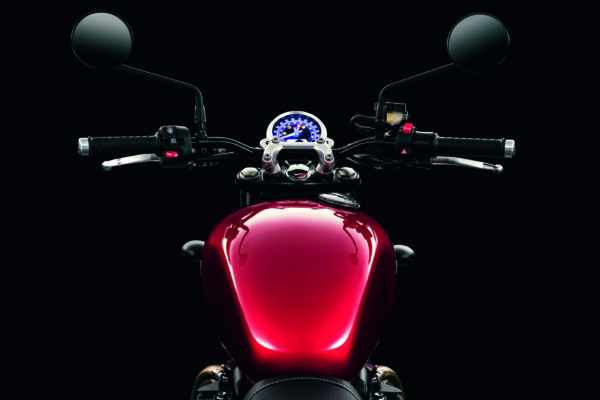

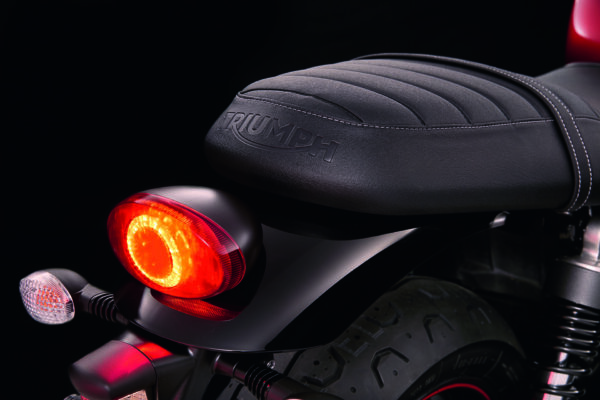

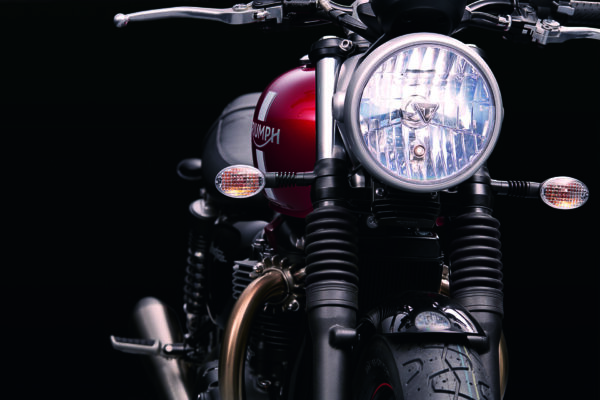

Triumph Street Twin 2016 dashboard Triumph Street Twin 2016 front Triumph Street Twin 2016 back
