Triumph Tiger 800 XCx / XCA (2018-2020)
Tiger 800 XCx is the base model and XCA is the top of the line.

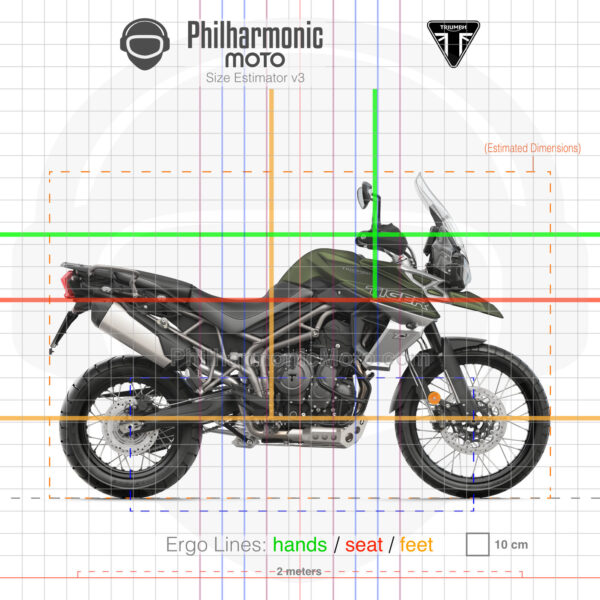

Dimensions estimated from wheelbase.
Updated: 11 October 2024
Specifications and Features
| Length | 2253 mm (estimated) |
|---|---|
| Width | 850 mm (handlebars) |
| Height | 1468 mm (estimated) |
| Seat Height | 840-860 mm (adjustable) |
| Weight | – XCx: 230 kg wet (XCA: 233, estimated) |
| Engine | 800 cc Inline-3, liquid-cooled |
| Power | 94 hp @ 9500 rpm |
| Power to weight ratio | 41 HP/100kg |
| Torque | 79 Nm @ 8050 rpm |
| Torque to weight ratio | 34 Nm/100kg |
| Transmission | – 6-speed, wet multi-plate clutch |
| Fuel Capacity | 19 litres |
| Suspension | – Front: 43 mm inverted fork, adjustable rebound and compression, 220 mm travel |
| Tyres | – Front: 90/90-21 (-53 cm) |
| Brakes | – Front: 305 mm floating discs, 2-piston calipers |

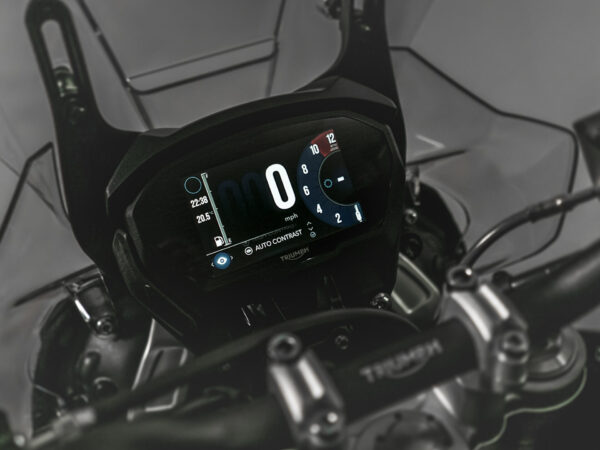

| Instruments | – 13 cm (5") TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, ambient temperature, clock |
| Other | – XCx: LED taillight. XCA: full LED, illuminated switches, fog lights. Indicators can be LED, depending on market |
