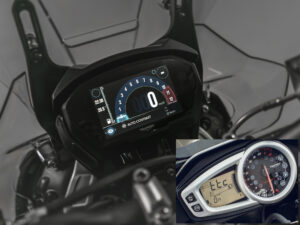

Triumph Tiger 800 XRt 2018 TFT dashboard and XR dashboard

Triumph Tiger 800 XR / XRx / XRt (2018-2020)

Name: Triumph Tiger 800 XR / XRx / XRt (2018-2020)
SKU: 8755
Availability: InStock

Tiger 800 XR is the base model, XRx has more features and XRt is the top of the line.

Updated: 11 October 2024

Brand: Triumph Style: Adventure

Engine	800 cc Inline-3, liquid-cooled
Power	94 hp @ 9500 rpm
Power to weight ratio	42 HP/100kg
Torque	79 Nm @ 8050 rpm
Torque to weight ratio	35 Nm/100kg
Transmission	– 6-speed, wet multi-plate clutch – Chain final drive
Fuel Capacity	19 litres
Length	2215 mm
Width	850 mm (handlebars)
Height	1350 mm (probably XR screen, which is smaller, image shows XRx)
Weight	– XR: 224 kg wet (XRx: 225, XRt: 227, estimated) – Max load: 222 kg
Seat Height	810-830 mm (adjustable, 760-780 XRx Low)
Suspension	– Front: Showa 43 mm inverted fork, 180 mm travel, XRt: adjustable rebound and compression – Rear: Showa mono-shock, adjustable preload, 170 mm travel
Tyres	– Front: 100/90-19 – Rear: 150/70-17
Brakes	– Front: 305 mm floating discs, Nissin 2-piston calipers (XRx, XRt: Brembo) – Rear: 255 mm disc, Nissin 1-piston caliper – ABS available (switchable)
Instruments	– XR: Analogue tachometer, LCD display with speedometer, odometer, gear indicator, fuel gauge, dual trip meters, range, average consumption, engine temperature, average speed, clock – XRx, XRt: 13 cm (5") TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, ambient temperature, clock
Other	– XR, XRx: LED taillight. XRt: full LED, illuminated switches, fog lights. Indicators can be LED, depending on market – Traction control (switchable). XRx, XRt: riding modes – USB port under seat, 12v socket on dash, adjustable hand levers. XRx, XRt: cruise control. XRt: heated grips and seats. Optional: centre stand, heated grips, TPMS
