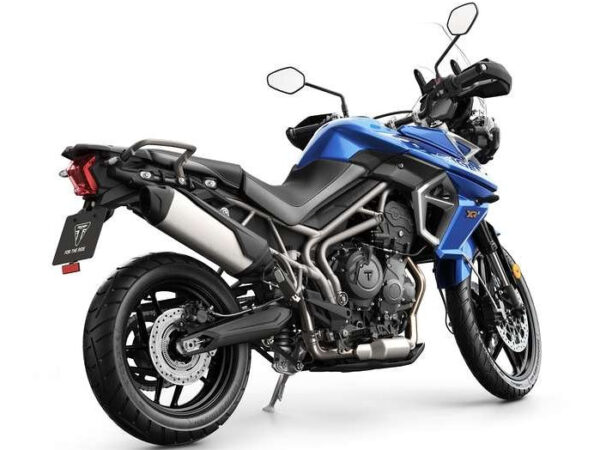

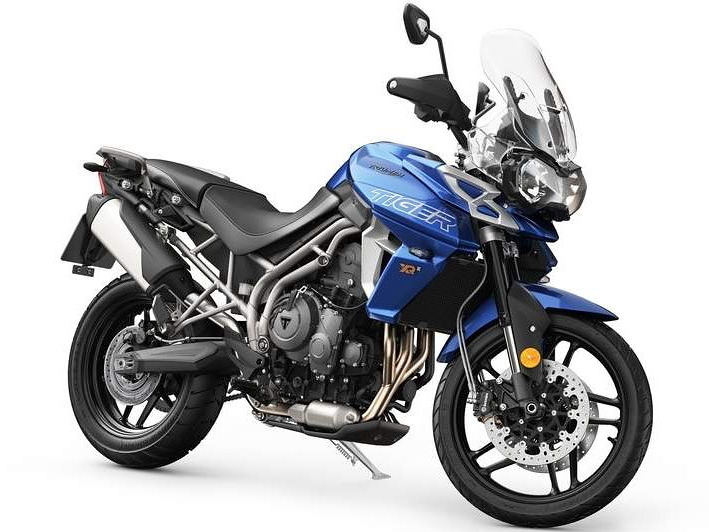

Triumph Tiger 800 XR / XRx / XRt (2018-2020)
Tiger 800 XR is the base model, XRx has more features and XRt is the top of the line.
Updated: 11 October 2024
Specifications and Features
| Length | 2215 mm |
|---|---|
| Width | 850 mm (handlebars) |
| Height | 1350 mm (probably XR screen, which is smaller, image shows XRx) |
| Seat Height | 810-830 mm (adjustable, 760-780 XRx Low) |
| Weight | – XR: 224 kg wet (XRx: 225, XRt: 227, estimated) |
| Engine | 800 cc Inline-3, liquid-cooled |
| Power | 94 hp @ 9500 rpm |
| Power to weight ratio | 42 HP/100kg |
| Torque | 79 Nm @ 8050 rpm |
| Torque to weight ratio | 35 Nm/100kg |
| Transmission | – 6-speed, wet multi-plate clutch |
| Fuel Capacity | 19 litres |
| Suspension | – Front: 43 mm inverted fork, 180 mm travel, XRt: adjustable rebound and compression |
| Tyres | – Front: 100/90-19 (-48 cm) |
| Brakes | – Front: 305 mm floating discs, 2-piston calipers |

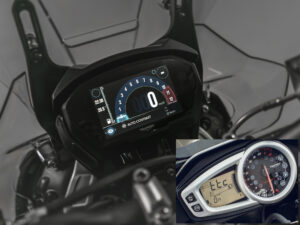

| Instruments | – XR: Analogue tachometer, LCD display with speedometer, odometer, gear indicator, fuel gauge, dual trip meters, range, average consumption, engine temperature, average speed, clock |
| Other | – XR, XRx: LED taillight. XRt: full LED, illuminated switches, fog lights. Indicators can be LED, depending on market |
