Triumph Tiger Sport (2016-2021)

Tiger Sport 1050

Updated: 10 October 2024


Brand: Style:
Share:

Specifications and Features

Engine

1050 cc Inline-3, liquid-cooled

Power

125 hp @ 9475 rpm

Power to weight ratio

53 HP/100kg

Torque

106 Nm @ 7000 rpm

Torque to weight ratio

45 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

20 litres

Length

2150 mm

Width

850 mm (handlebars)

Height

1330-1385 mm (adjustable screen)

Weight

– 235 kg wet
– Max load: 222 kg

Seat Height

830 mm

Suspension

– Front: Showa 43 mm inverted fork, fully adjustable, 155 mm travel
– Rear: Showa mono-shock, adjustable preload and rebound, 155 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 320 mm floating discs, Nissin 4-piston radial calipers
– Rear: 255 mm disc, Nissin 2-piston caliper
– ABS available

Instruments

– Analogue tachometer, LCD display with speedometer, odometer, gear indicator, fuel gauge, dual trip meters, range, average consumption, engine temperature, average speed, clock

Other

– LED taillight, self-cancelling indicators
– Riding modes, traction control (switchable, adjustable)
– Cruise control, USB port under seat, adjustable hand levers. Optional: centre stand, heated grips, TPMS

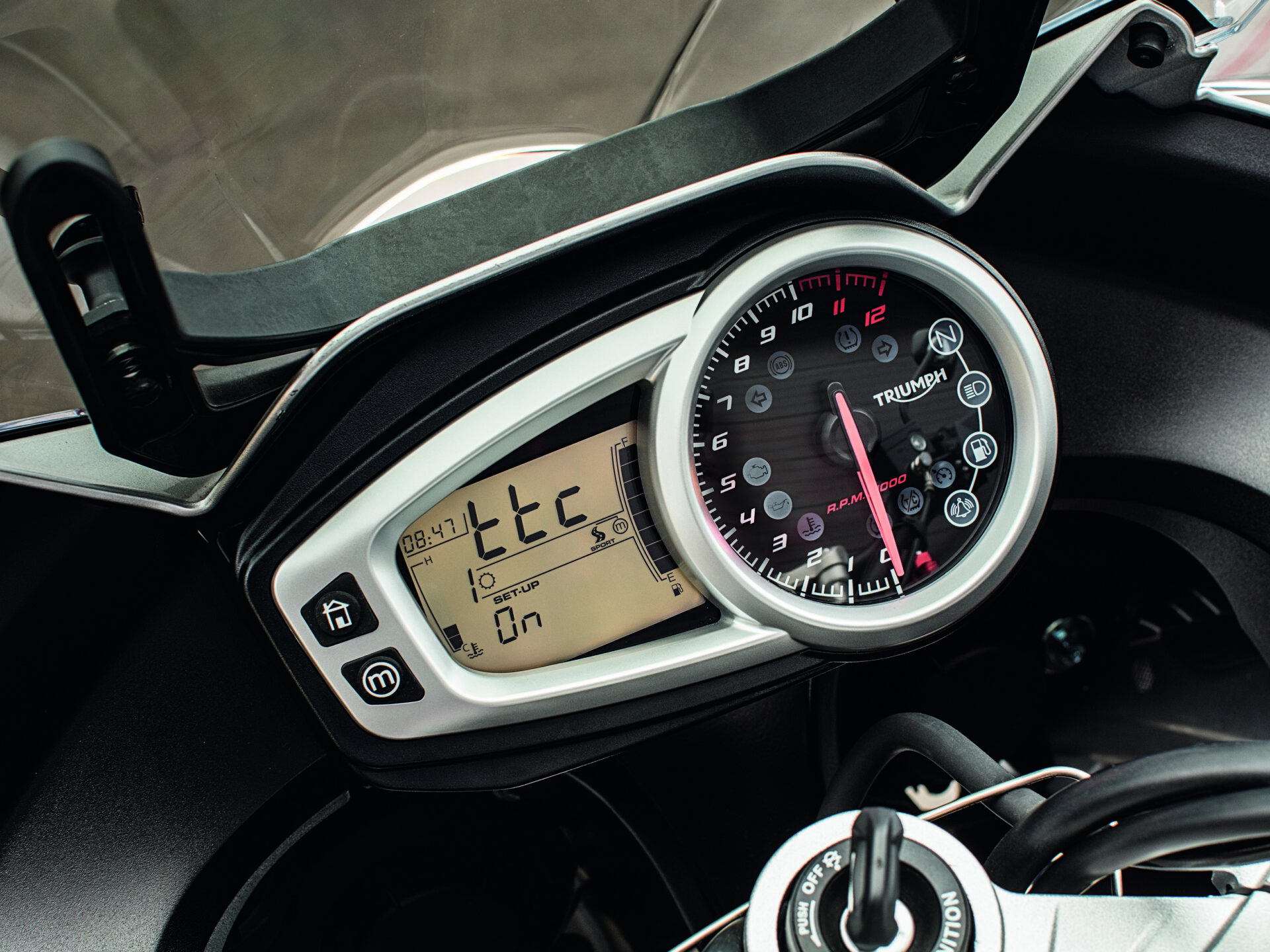

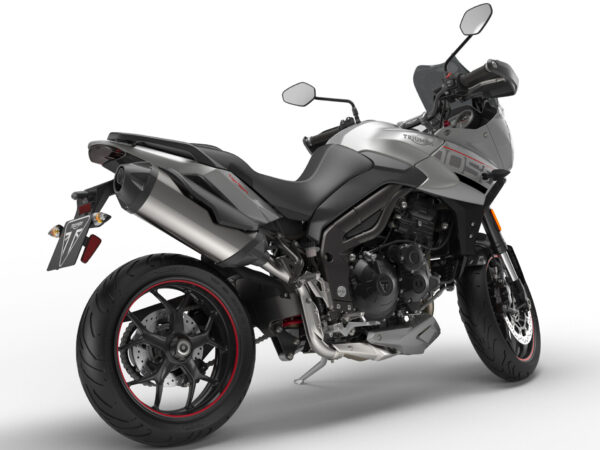

Triumph Tiger Sport 1050 2016 dashboard Triumph Tiger Sport 1050 2016 Aluminium Silver front Triumph Tiger Sport 1050 2016 Aluminium Silver back

Motorcycle gifts to celebrate it and support the website:
helmet black tshirt
Click here to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

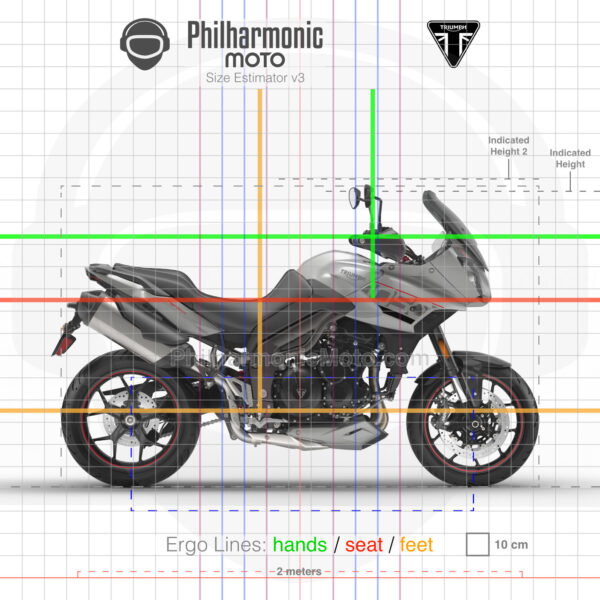

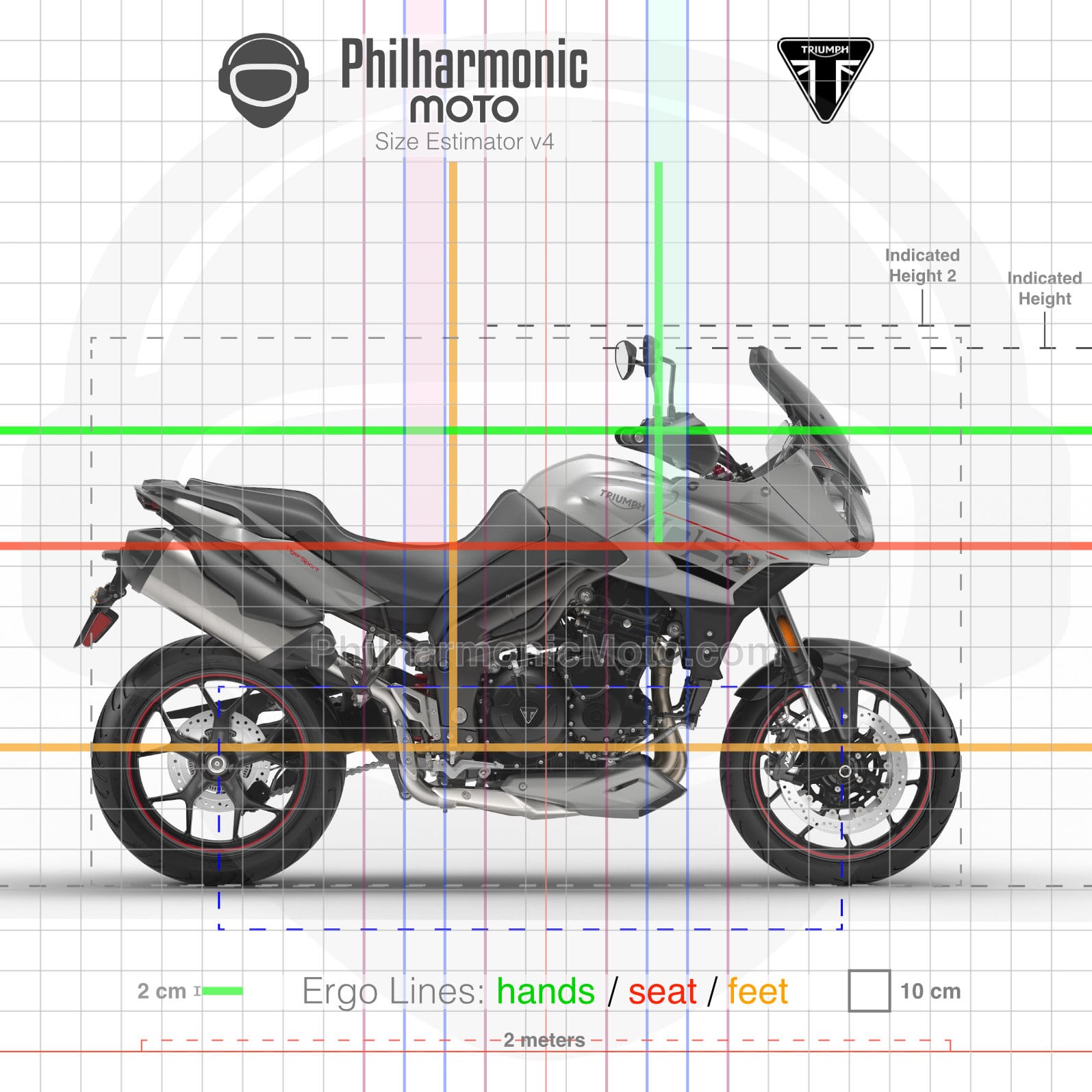

  • Size Estimator (see "About" page to learn more)
