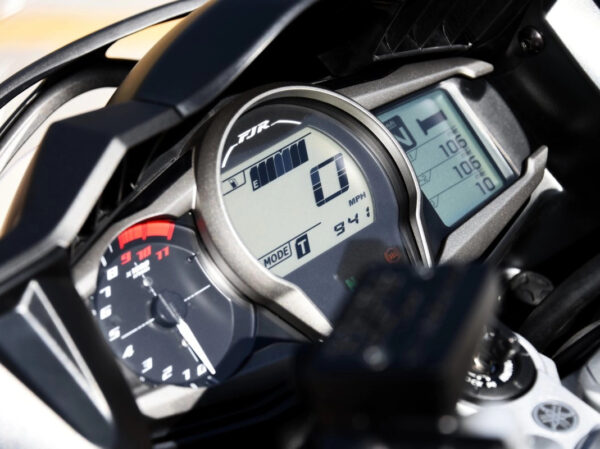

Yamaha FJR1300AE FJR1300ES 2023 dashboard

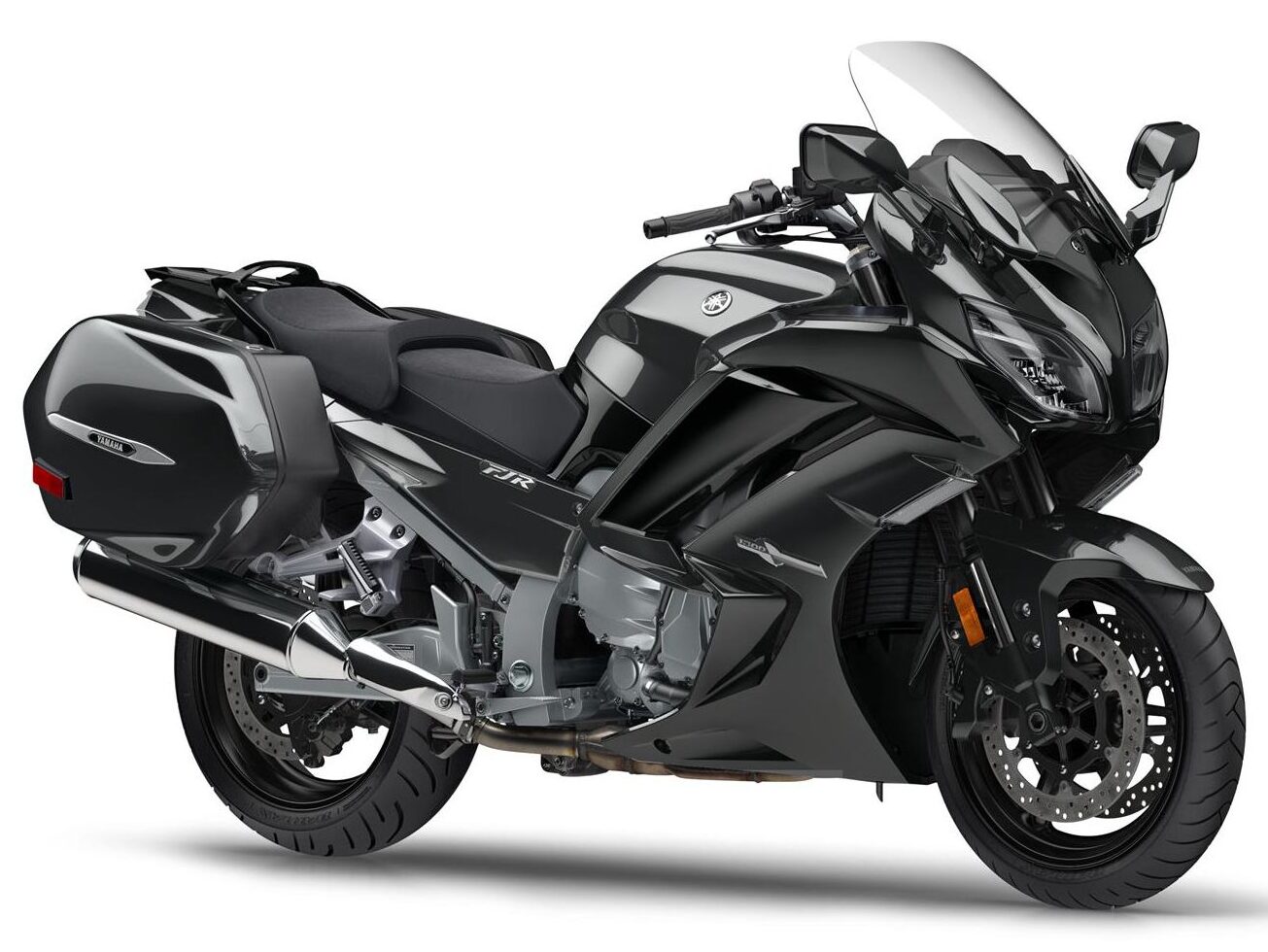

Yamaha FJR1300ES 2020 front

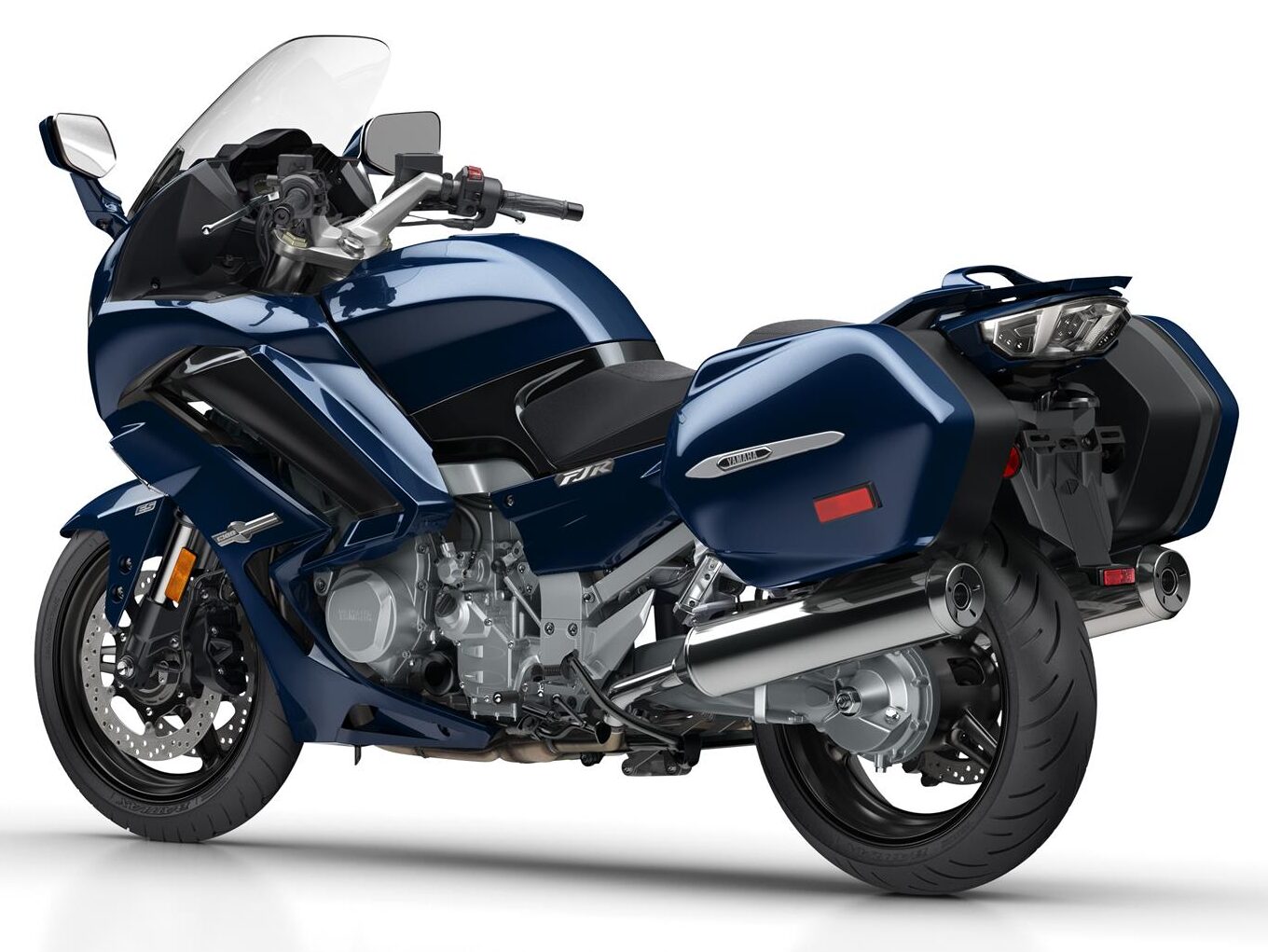

Yamaha FJR1300ES 2023 back

Yamaha FJR1300 ES/AE (2016+)

FJR1300ES, FJR1300AE, FJR 1300 AE ES

Updated: 2 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

1298 cc Inline-4, liquid-cooled

Power

146 hp @ 8000 rpm

Power to weight ratio

50 HP/100kg

Torque

138 Nm @ 7000 rpm

Torque to weight ratio

47 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Shaft final drive

Fuel Capacity

25 litres

Length

2230 mm

Width

750 mm

Height

1325 mm / 1455 mm (low/high screen position)

Weight

– 292 kg wet
– Max load: 212 kg

Seat Height

805/825 mm (adjustable seat)

Suspension

– Front: 41 mm separate function inverted fork, electronically fully adjustable, 135 mm travel
– Rear: mono-shock, electronically adjustable preload and rebound, 125 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 320 mm discs, 4-piston radial calipers
– Rear: 282 mm disc, 2-piston caliper
– ABS available, combined braking

Instruments

– Analogue tachometer, LCD displays with speedometer, odometer, gear indicator, fuel gauge, instant and average consumption, range, "time trip", dual trip meters, engine and ambient temperature, clock

Other

– LED lights, cornering lights
– Riding modes, traction control
– Cruise control, adjustable handlebar, adjustable seat, electronically adjustable windscreen, adjustable air flow vents, adjustable levers, heated grips, 12v socket, centre stand

Yamaha FJR1300AE FJR1300ES 2023 dashboard Yamaha FJR1300ES 2020 front Yamaha FJR1300ES 2023 back

Motorcycle gifts to celebrate it and support the website:
superbike phone case
Click here to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

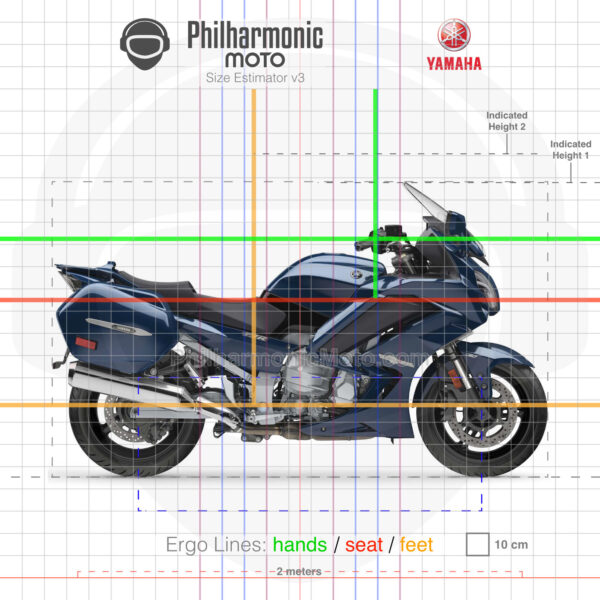

  • Size Estimator (see "About" page to learn more)
