Yamaha FZ6R / XJ6 Diversion F (2010-2017)

XJ6F has a one-piece seat, FZ6R has two-piece seat and it’s adjustable for the rider in 20 mm.

Updated: 4 July 2024

Engine	600 cc Inline-4, liquid-cooled
Power	77 hp @ 10000 rpm
Power to weight ratio	37 HP/100kg
Torque	59 Nm @ 8500 rpm
Torque to weight ratio	28 Nm/100kg
Transmission	– 6-speed, wet multi-plate clutch – Chain final drive
Fuel Capacity	17,3 litres
Length	2120 mm
Width	770 mm
Height	1185 mm
Weight	– 211 kg wet – Max load: 185 kg (ABS: 180)
Seat Height	785 mm (20 mm adjustable on the FZ6R)
Suspension	– Front: 41 mm telescopic fork, 130 mm travel – Rear: mono-shock, adjustable preload, 130 mm travel
Tyres	– Front: 120/70-17 – Rear: 160/60-17
Brakes	– Front: 298 mm discs, 2-piston calipers – Rear: 245 mm disc, 2-piston caliper – ABS available (FJ6)

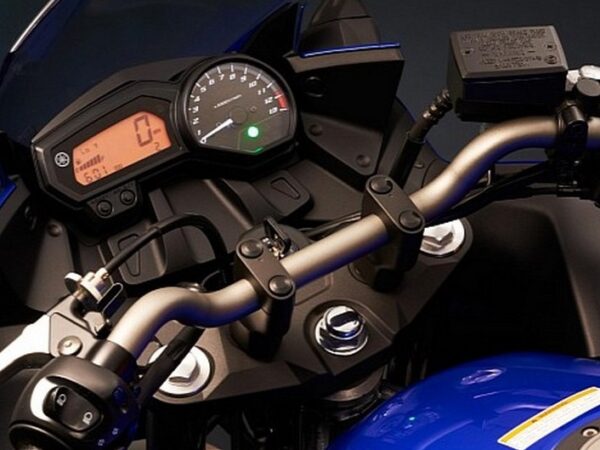

Instruments	– Analogue tachometer, LCD display with speedometer, odometer, fuel gauge, trip meters, engine temperature, clock
Other	– Adjustable brake lever
