Yamaha FZ8-N (2010-2015)

FZ8N

Updated: 4 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

779 cc Inline-4, liquid-cooled

Power

106 hp @ 10000 rpm

Power to weight ratio

50 HP/100kg

Torque

82 Nm @ 8000 rpm

Torque to weight ratio

39 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

17 litres

Length

2140 mm

Width

770 mm

Height

1065 mm

Weight

– 212 kg wet
– Max load: 194 kg

Seat Height

815 mm

Suspension

– Front: 43 mm inverted fork, fully adjustable (from 2013), 130 mm travel
– Rear: mono-shock, adjustable preload, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 310 mm discs, 4-piston calipers
– Rear: 267 mm disc, 1-piston caliper
– ABS available

Instruments

– Analogue tachometer, LCD display with speedometer, odometer, fuel gauge, trip meters, engine temperature, clock

Other

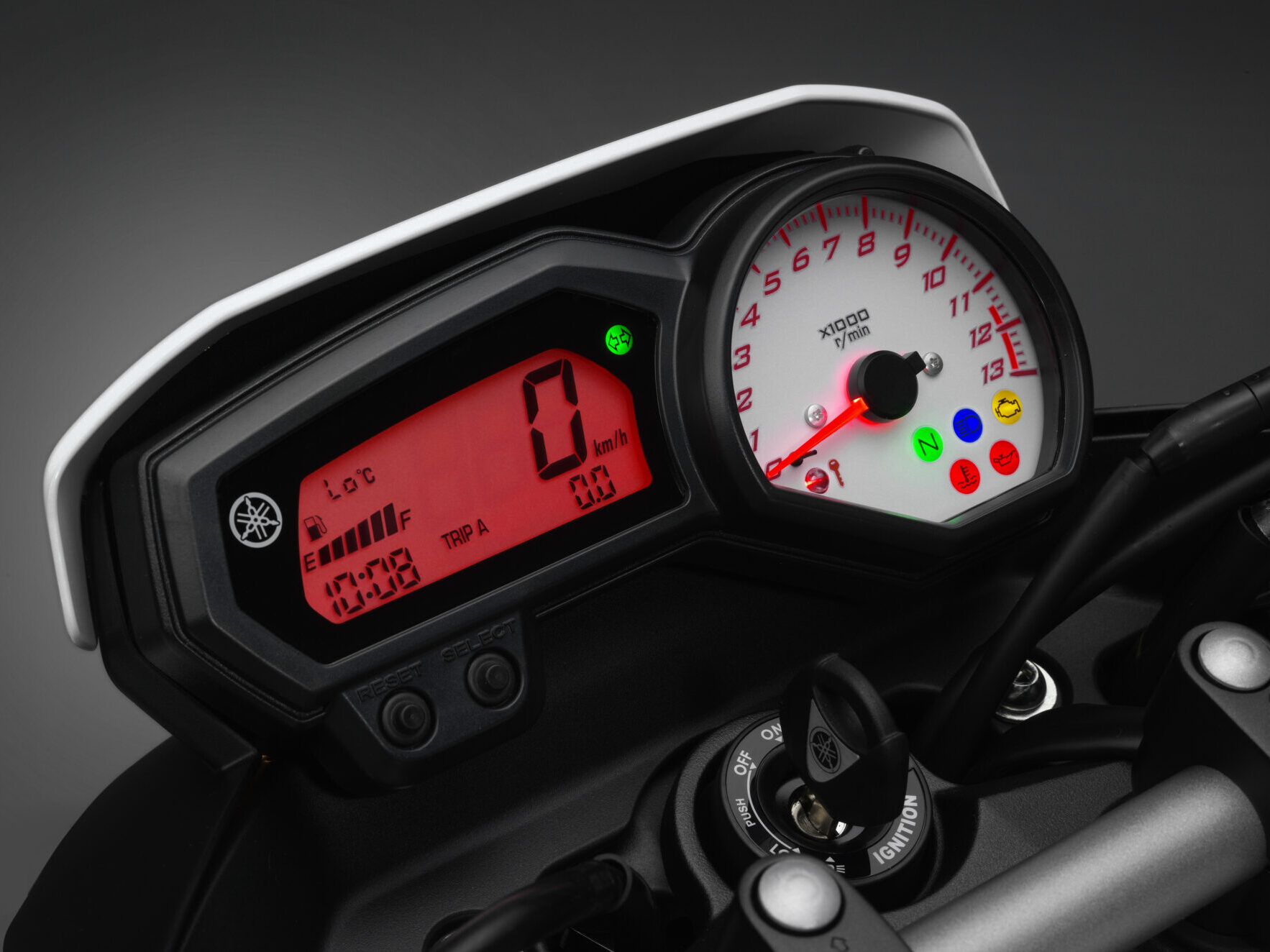

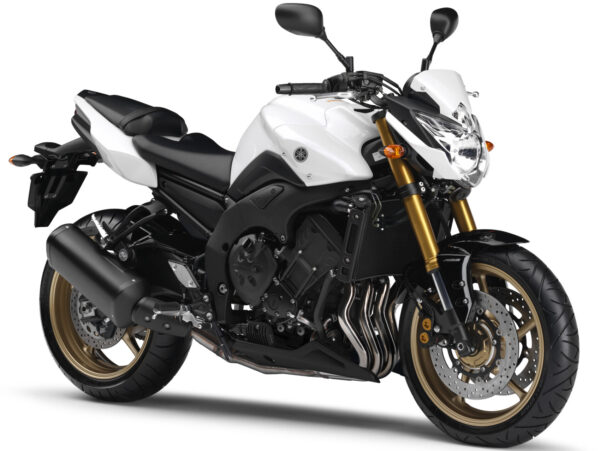

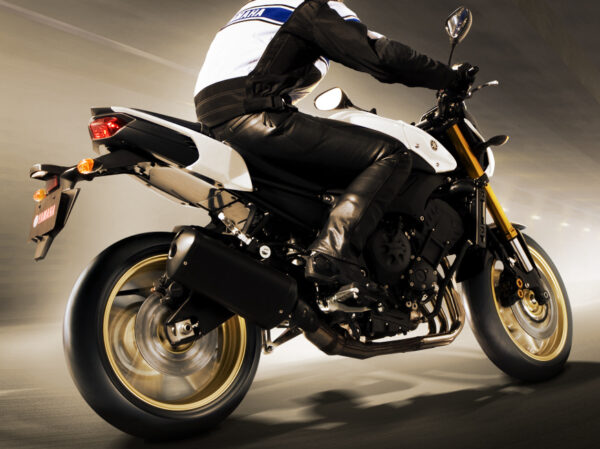

Yamaha FZ8-N 2011 dashboard Yamaha FZ8-N 2011 front Yamaha FZ8-N 2011 back

Motorcycle gifts to celebrate it and support the website:
i love abs white tshirt
Click here to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

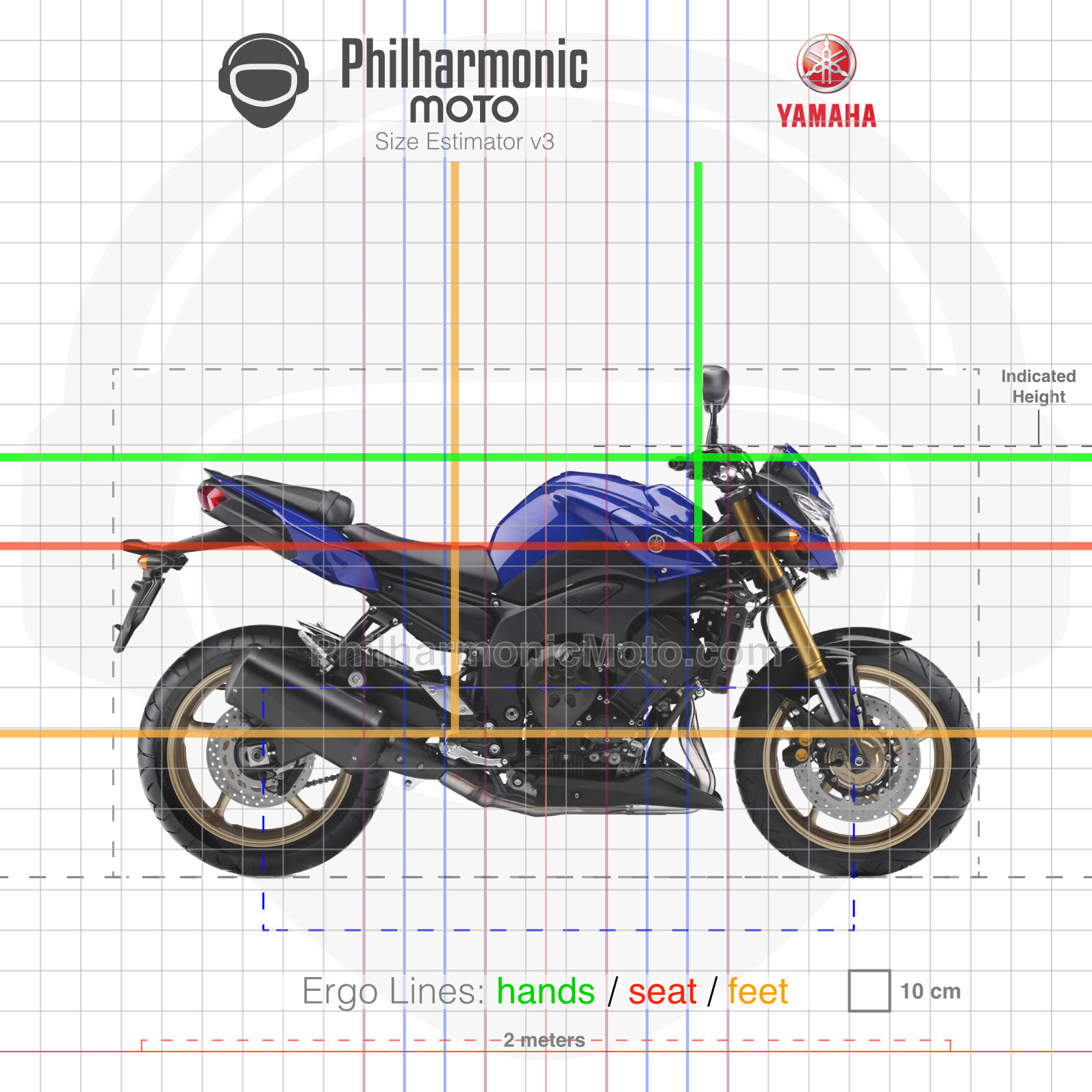

  • Size Estimator (see "About" page to learn more)
