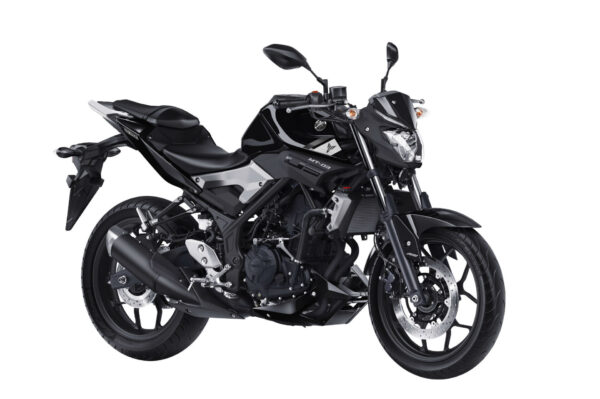

Yamaha MT-03 (2016-2019)

MT03

Updated: 17 June 2024


Brand: Style:
Share:

Specifications and Features

Engine

321 cc Parallel-twin, liquid-cooled

Power

41 hp @ 10750 rpm

Power to weight ratio

25 HP/100kg

Torque

30 Nm @ 9000 rpm

Torque to weight ratio

18 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

14 litres

Length

2090 mm

Width

745 mm

Height

1035 mm

Weight

– 167 kg wet
– Max load: 160 kg

Seat Height

780 mm

Suspension

– Front: KYB 41 mm telescopic fork, 130 mm travel
– Rear: KYB mono-shock, 125 mm travel

Tyres

– Front: 110/70-17
– Rear: 140/70-17

Brakes

– Front: 298 mm disc, 2-piston caliper
– Rear: 220 mm disc, 1-piston caliper
– ABS available

Instruments

– Analogue tachometer, LCD display with speedometer, odometer, gear indicator, fuel gauge, average and instant consumption, engine temperature, trip meter, clock, adjustable shift-up indicator

Other

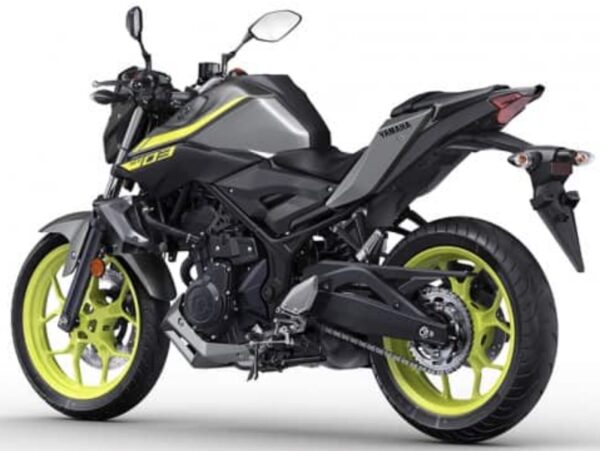

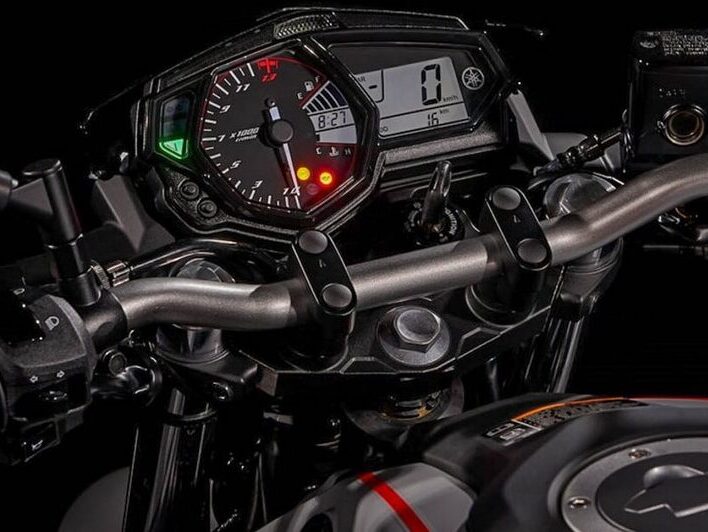

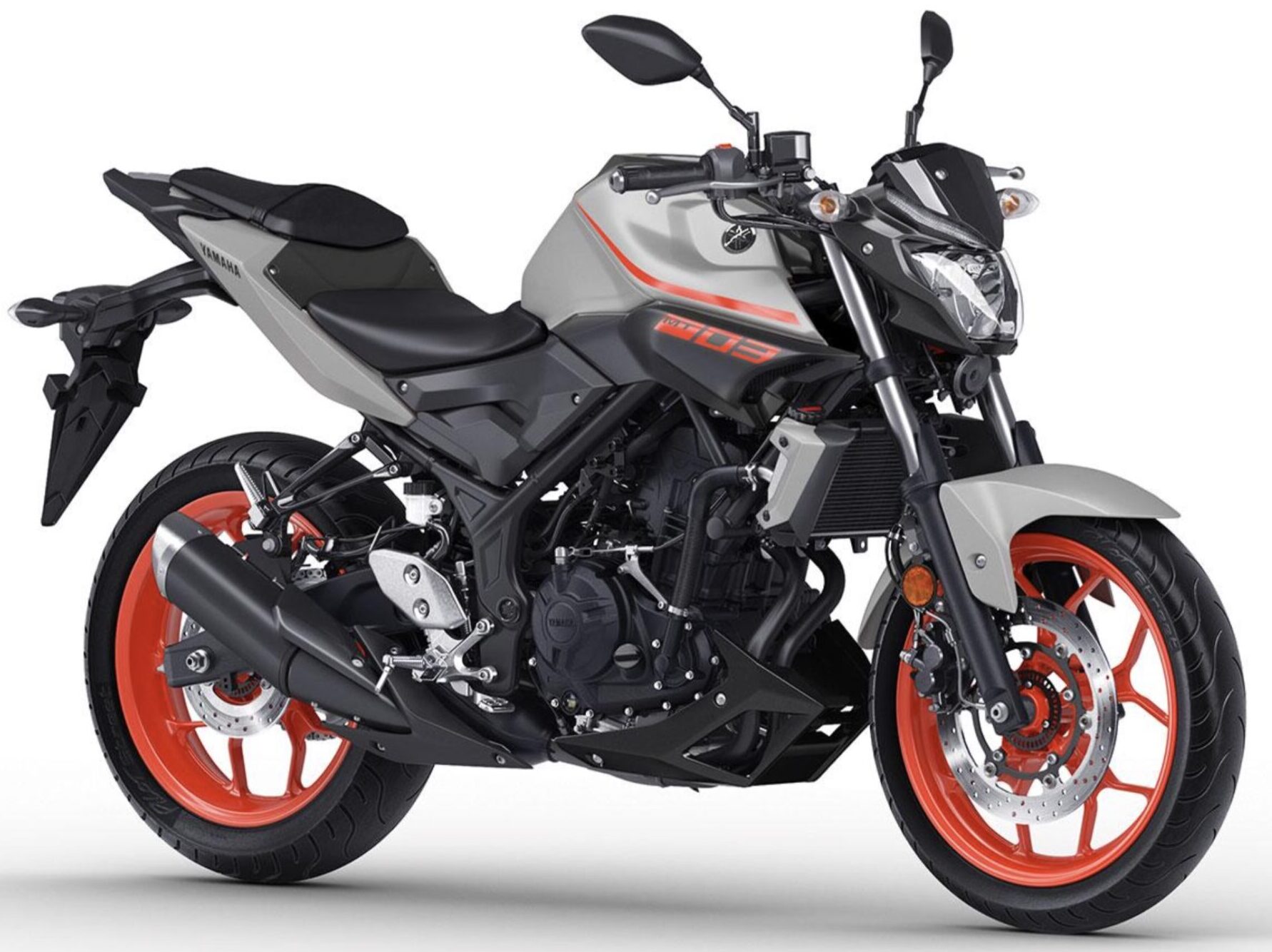

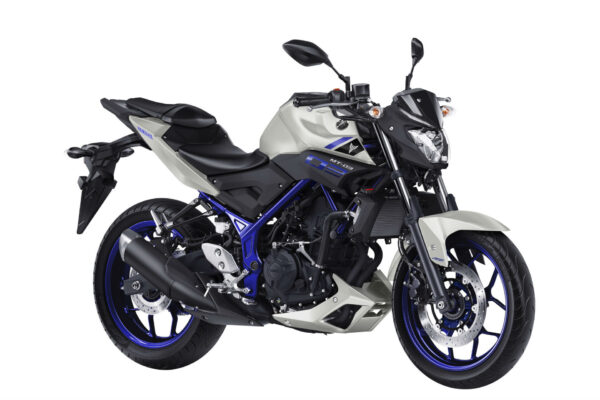

Yamaha MT-03 2019 dashboard Yamaha MT-03 2016 front Yamaha MT-03 2018 back

Motorcycle gifts to celebrate it and support the website:
supermoto tshirt
Click here to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

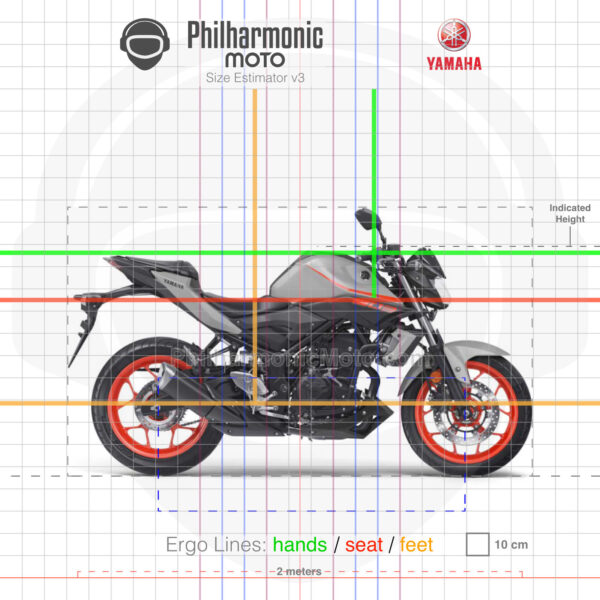

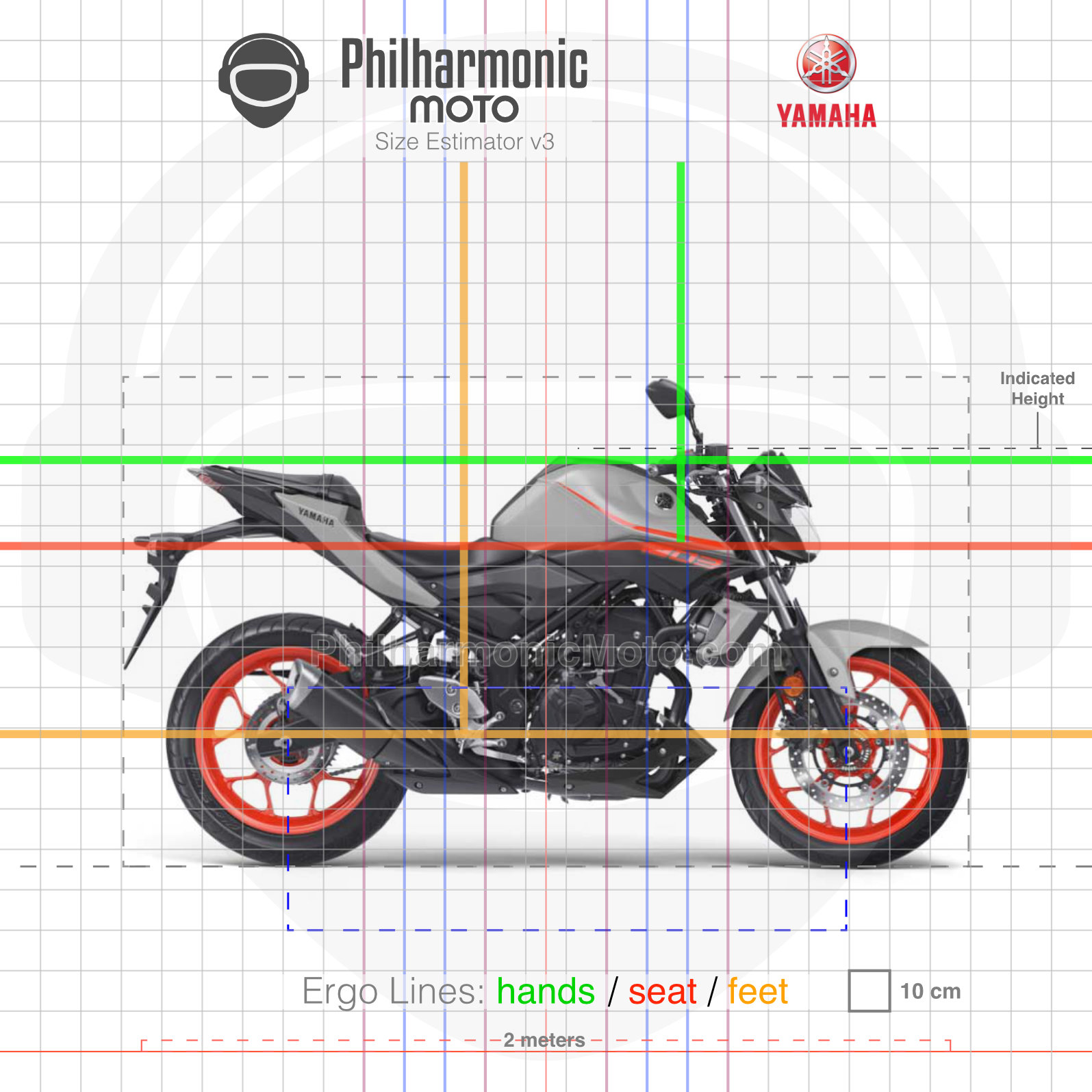

  • Size Estimator (see "About" page to learn more)
