Yamaha MT-07 (2018-2020)

MTN690

Updated: 4 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

689 cc Parallel-twin, liquid-cooled, 270º crank

Power

74 hp @ 9000 rpm

Power to weight ratio

40 HP/100kg

Torque

68 Nm @ 6500 rpm

Torque to weight ratio

37 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

14 litres

Length

2085 mm

Width

745 mm

Height

1090 mm

Weight

– 183 kg wet
– Max load: 172 kg

Seat Height

805 mm

Suspension

– Front: 41 mm telescopic fork, 130 mm travel
– Rear: mono-shock, adjustable preload and rebound, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 282 mm discs, monobloc 4-piston calipers
– Rear: 245 mm disc, Nissin 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, fuel reserve trip meter, instant and average consumption, engine and ambient temperature, dual trip meters, clock

Other

– LED taillight
– Adjustable brake lever

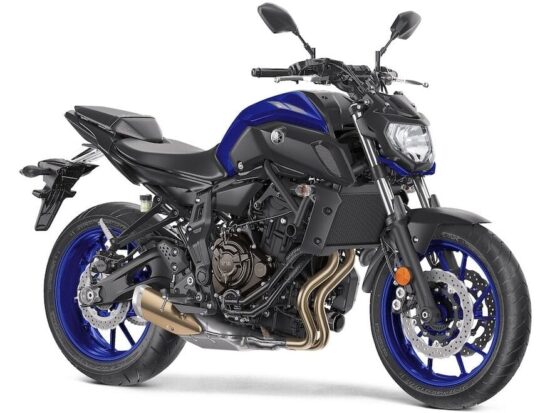

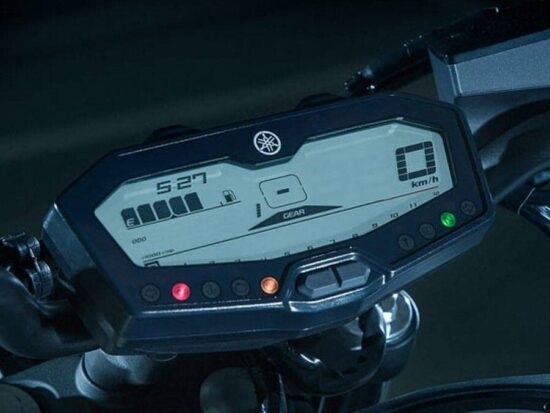

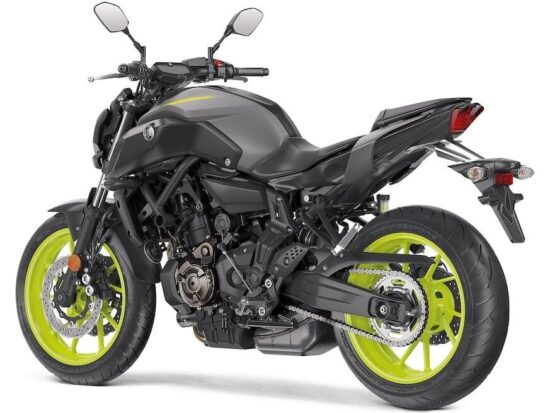

Yamaha MT-07 2018 dashboard2 Yamaha MT-07 2018 front Yamaha MT-07 2018 back

Motorcycle gifts to celebrate it and support the website:
supermoto pillow
Click here to learn more.


Brand (multi-selection) ( - )

  • 20 Aprilia
  • 21 Benelli
  • 65 BMW
  • 1 BSA
  • 33 CFMoto
  • 59 Ducati
  • 6 Fantic
  • 52 Harley-Davidson
  • 150 Honda
  • 17 Husqvarna
  • 44 Indian
  • 108 Kawasaki
  • 2 Keeway
  • 33 KTM
  • 2 Kymco
  • 16 Moto Guzzi
  • 6 Moto Morini
  • 19 MV Agusta
  • 3 Other
  • 8 Piaggio
  • 17 Royal Enfield
  • 59 Suzuki
  • 65 Triumph
  • 13 Vespa
  • 6 Voge
  • 99 Yamaha

Horsepower

Style (multi-selection) ( - )

  • 129 Adv
  • 60 Adv Sports
  • 58 Classic
  • 109 Cruiser
  • 31 Dual-Sport
  • 233 Naked
  • 77 Scooter
  • 44 Scrambler
  • 133 Sport
  • 38 Sport Touring
  • 18 Supermoto
  • 48 Touring

Features (standard or optional) info Features (standard or optional) multi-selection ( - )

Power to weight ratio (HP/100kg) ( - )

Torque (Nm) ( - )

Torque to weight ratio (Nm/100kg) ( - )

Seat height (mm) ( - )

Weight (Kg) ( - )

Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

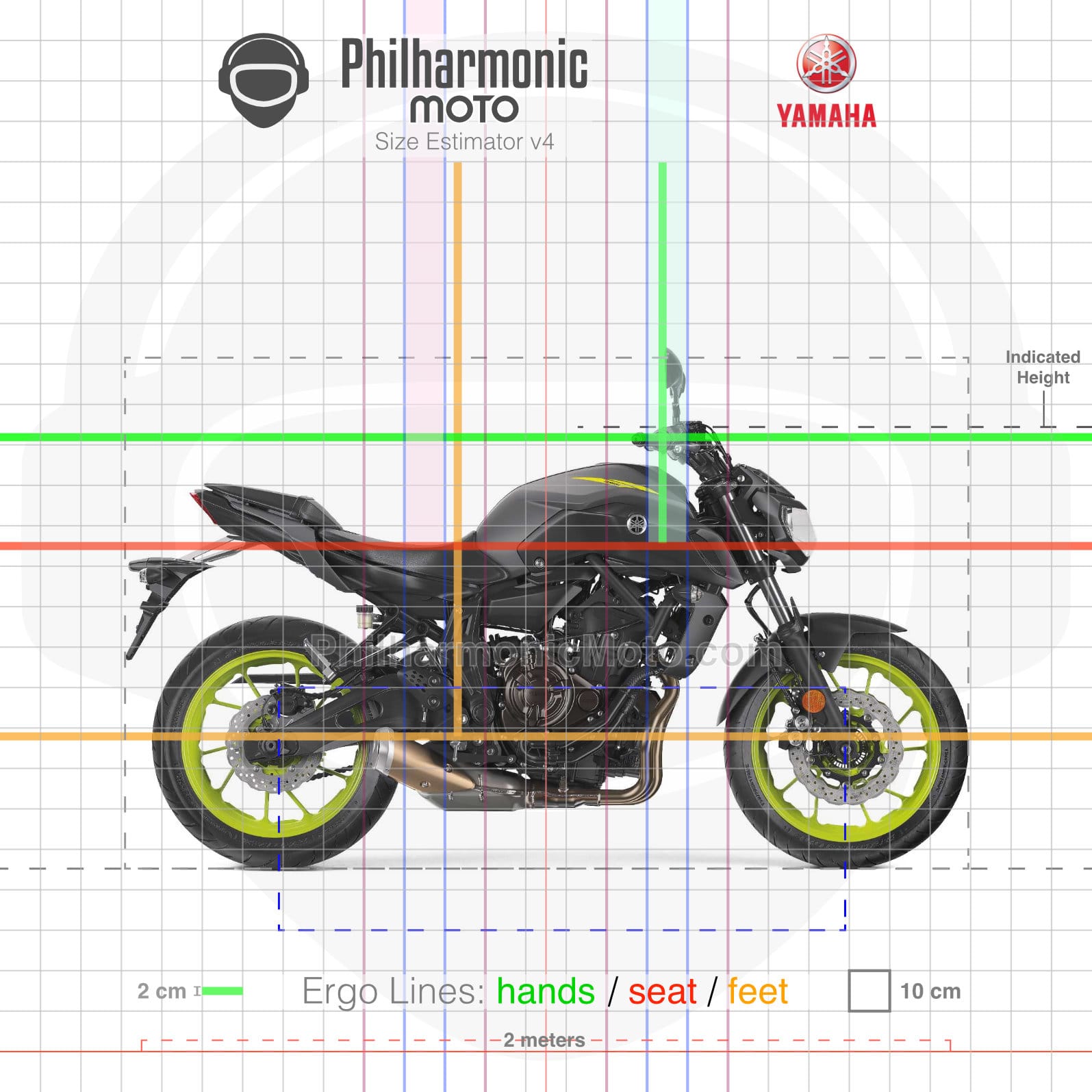

  • Size Estimator (see "About" page to learn more)
