Yamaha MT-10 SP (2017-2021)

MT10 SP, MTN1000D

CP4 engine.

Updated: 4 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

998 cc Inline-4, liquid-cooled

Power

158 hp @ 11500 rpm

Power to weight ratio

75 HP/100kg

Torque

111 Nm @ 9000 rpm

Torque to weight ratio

53 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Quick-shifter (up only)

Fuel Capacity

17 litres

Length

2095 mm

Width

800 mm

Height

1110 mm

Weight

– 210 kg wet
– Max load: 170 kg

Seat Height

825 mm

Suspension

– Front: Öhlins 43 mm inverted fork, electronically fully adjustable, 120 mm travel
– Rear: Öhlins piggyback shock, electronically fully adjustable, 120 mm travel
– Semi-active suspension

Tyres

– Front: 120/70-17
– Rear: 190/55-17

Brakes

– Front: 320 mm floating discs, monobloc 4-piston radial calipers
– Rear: 220 mm disc, Nissin 1-piston caliper
– ABS available

Instruments

– 4.2" TFT display with tachometer, speedometer, odometer, gear indicator, fuel gauge, average consumption, trip meter, air and water temperature, clock

Other

– LED lights
– Riding modes, traction control (adjustable)
– Cruise control, adjustable brake lever, steering damper

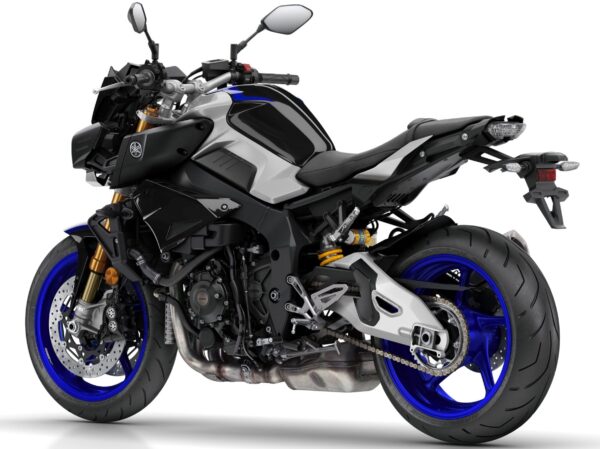

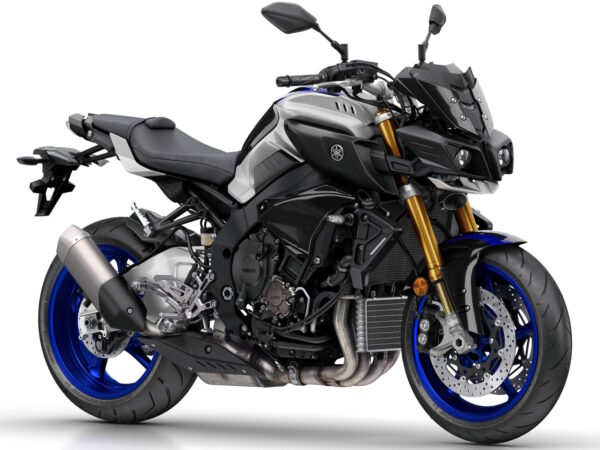

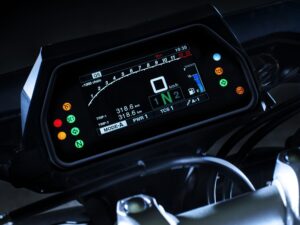

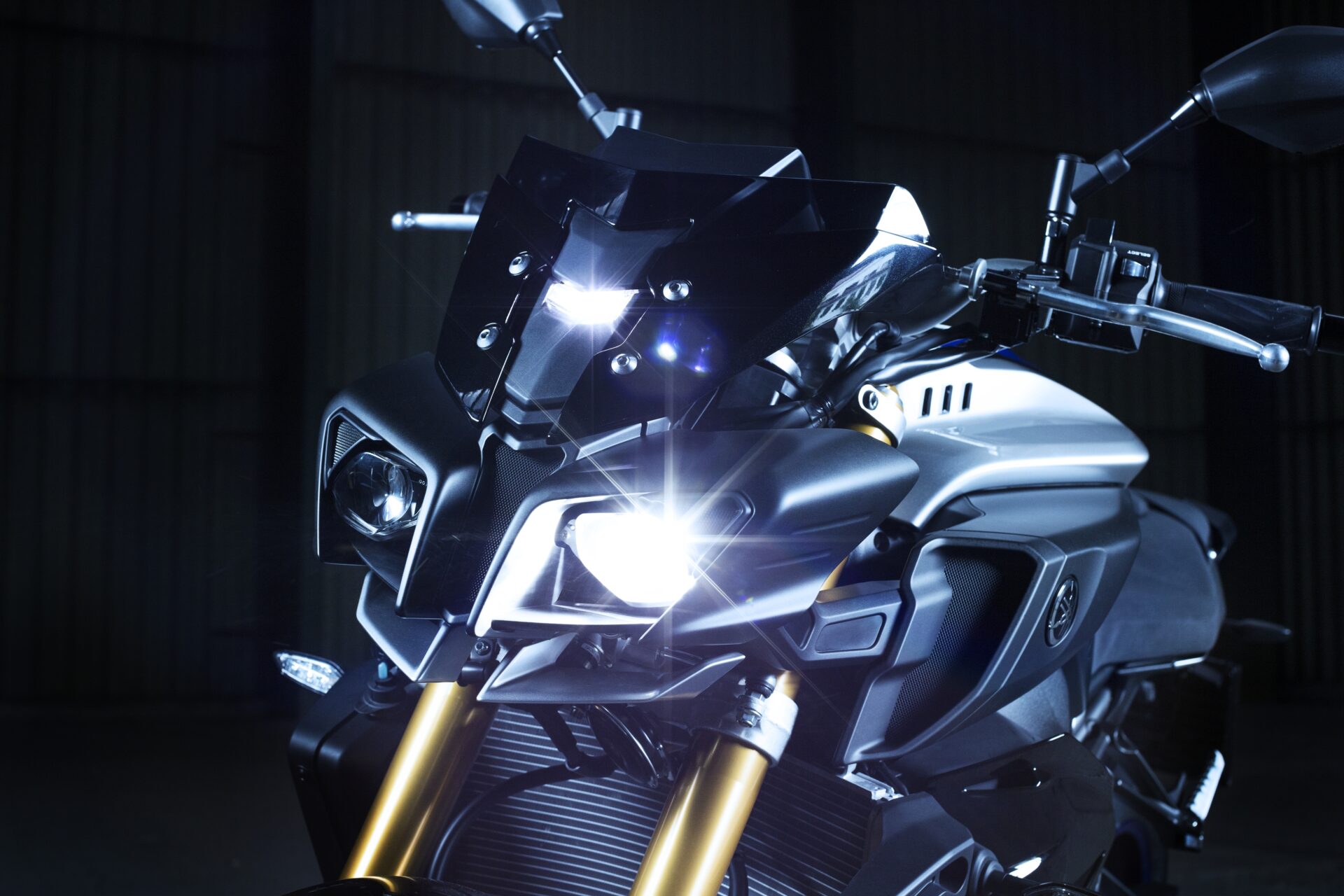

Yamaha MT-10 SP 2017 dashboard Yamaha MT-10 SP 2017 front Yamaha MT-10 SP 2017 back
