Yamaha TMAX Tech MAX (2025+)
TMAX 560 Tech MAX
XP560D
Updated: 1 November 2024
Specifications and Features
| Length | 2195 mm |
|---|---|
| Width | 780 mm |
| Height | 1415-1525 mm (adjustable screen) |
| Seat Height | 800 mm |
| Weight | – 221 kg wet |
| Engine | 562 cc Parallel-twin, liquid-cooled |
| Power | 47 hp @ 7500 rpm |
| Power to weight ratio | 21 HP/100kg |
| Torque | 55 Nm @ 5250 rpm |
| Torque to weight ratio | 25 Nm/100kg |
| Transmission | – Automatic CVT |
| Fuel Capacity | 15 litres |
| Suspension | – Front: 41 mm inverted fork, 120 mm travel |
| Tyres | – Front: 120/70-15 (-38 cm) |
| Brakes | – Front: 267 mm discs, 4-piston radial calipers |

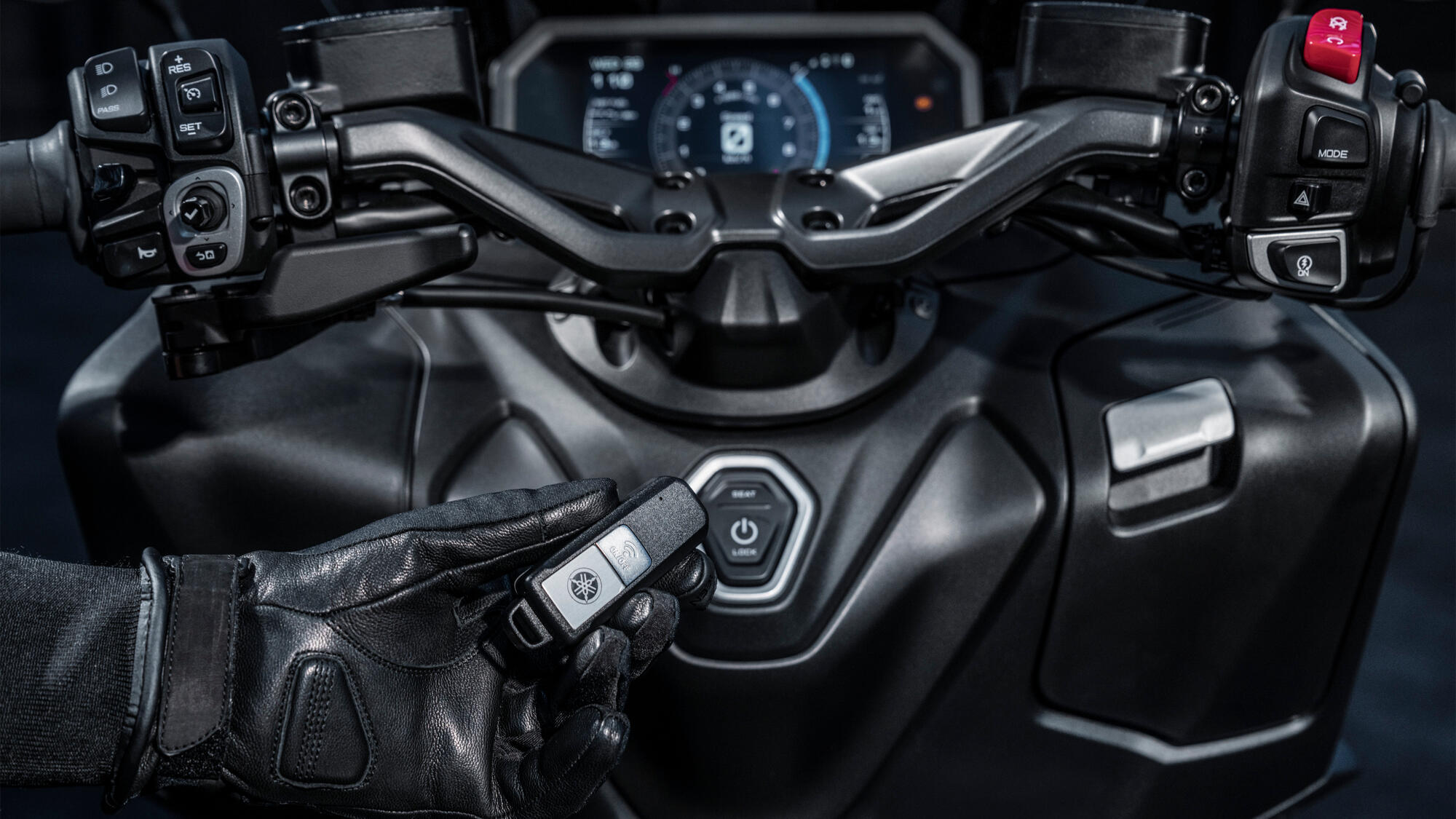

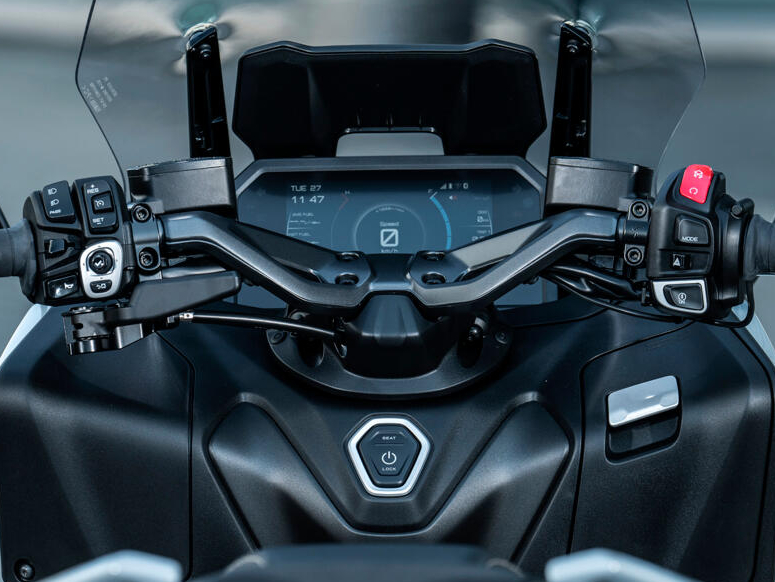

| Instruments | – 18 cm (7") TFT display with speedometer, tachometer, odometer, fuel gauge, average and instant consumption, trip meters, engine temperature, date, clock |
| Other | – LED lights, illuminated switches |
