Yamaha Tracer 900 (2018-2020)

MT-09 Tracer, MT09TR, MTT850

CP3 engine

Updated: 4 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

847 cc Inline-3, liquid-cooled

Power

113 hp @ 10000 rpm

Power to weight ratio

53 HP/100kg

Torque

88 Nm @ 8500 rpm

Torque to weight ratio

41 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Optional: quick-shifter (upshift only)

Fuel Capacity

18 litres

Length

2160 mm

Width

850 mm

Height

1375-1430 mm (adjustable screen)

Weight

– 214 kg wet
– Max load: 180 kg

Seat Height

850/865 mm (adjustable)

Suspension

– Front: KYB 41 mm inverted fork, adjustable preload and rebound, 137 mm travel

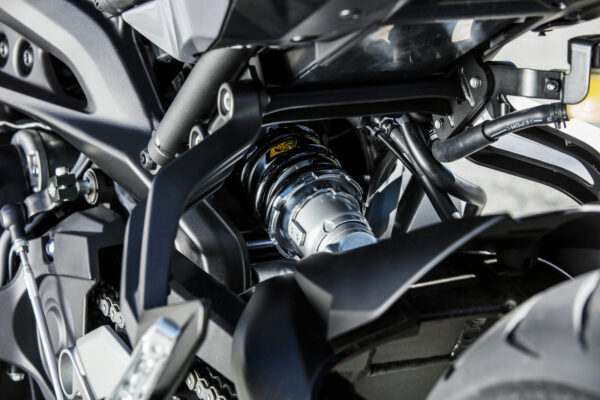

– Rear: KYB mono-shock, adjustable preload and rebound, 142 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 298 mm floating discs, monobloc 4-piston radial calipers
– Rear: 245 mm disc, Nissin 1-piston caliper
– ABS available, UBS (unified braking)

Instruments

– LCD displays with speedometer, tachometer, odometer, gear indicator, fuel gauge, range, instant and average consumption, dual trip meters, "time trip and low fuel trip", ambient and engine temperature, clock

Other

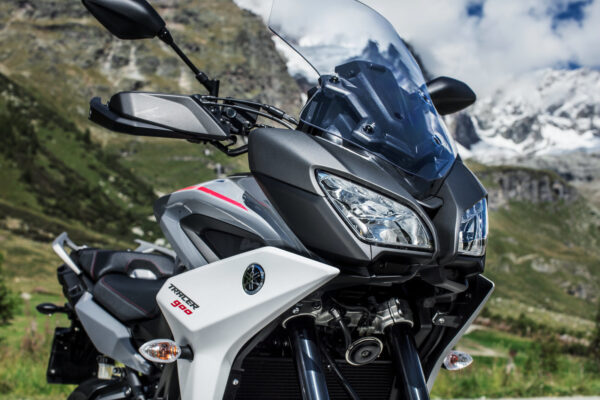

– LED headlight and taillight
– Riding modes, traction control (switchable, adjustable)
– 12v port on dash, centre stand, adjustable handlebars and brake lever. Optional: heated grips

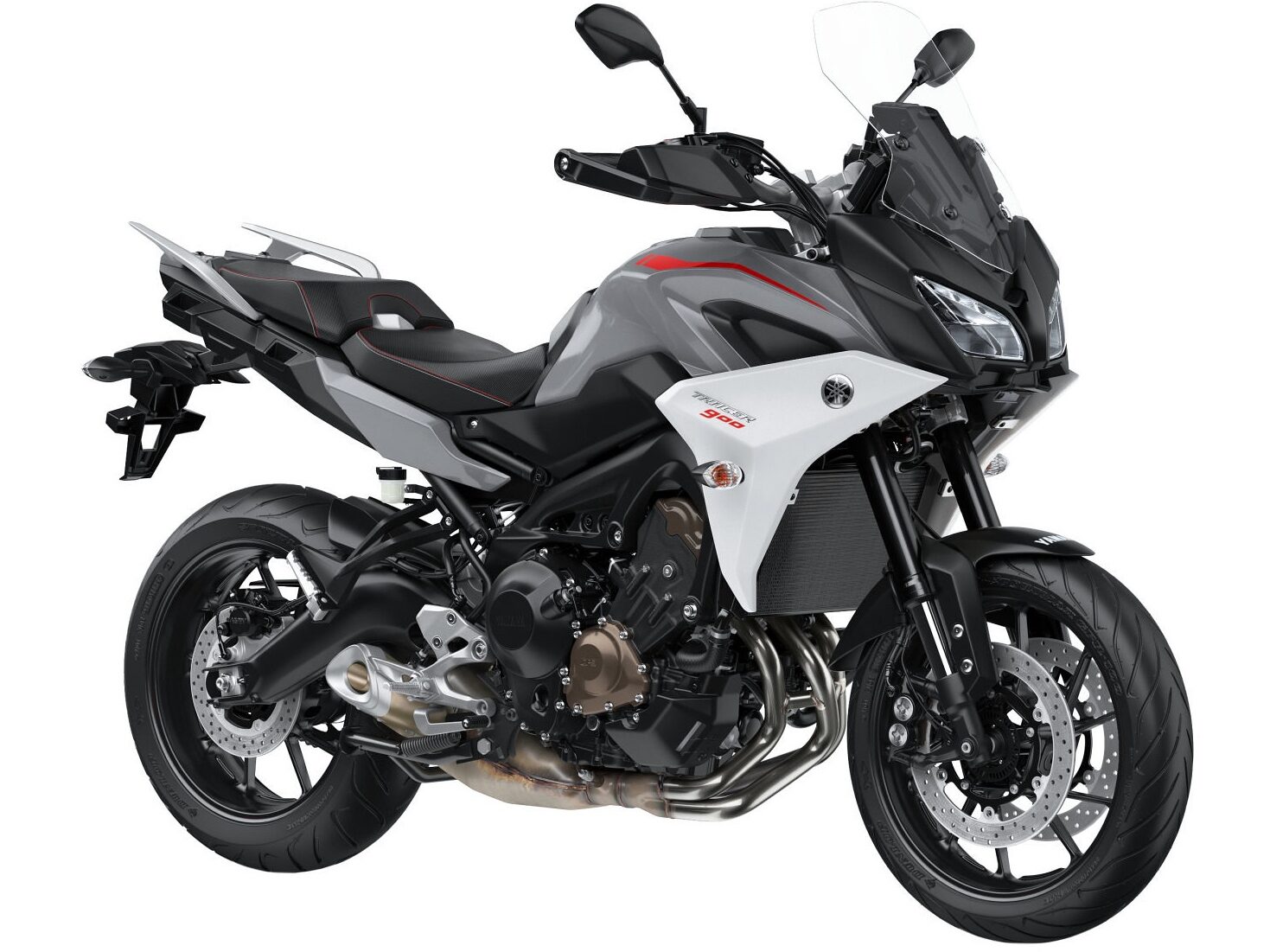

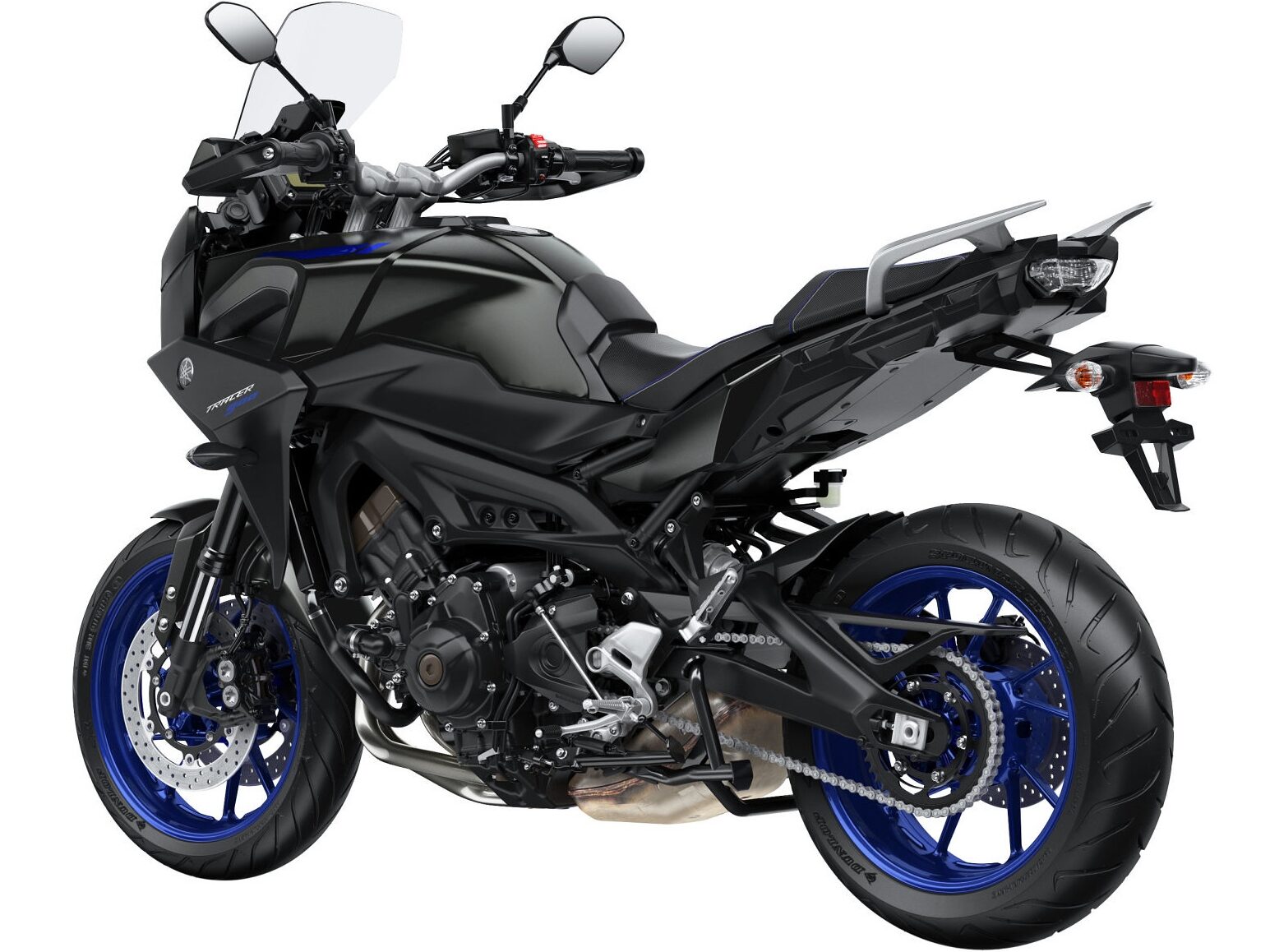

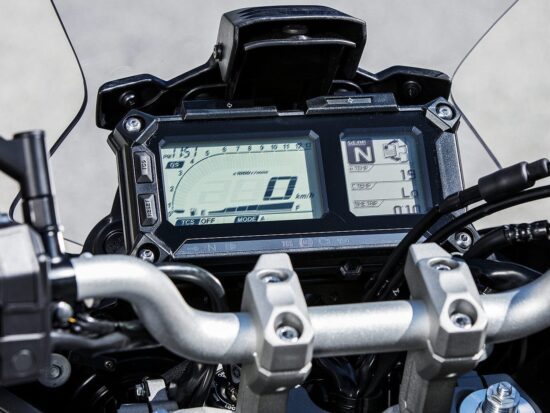

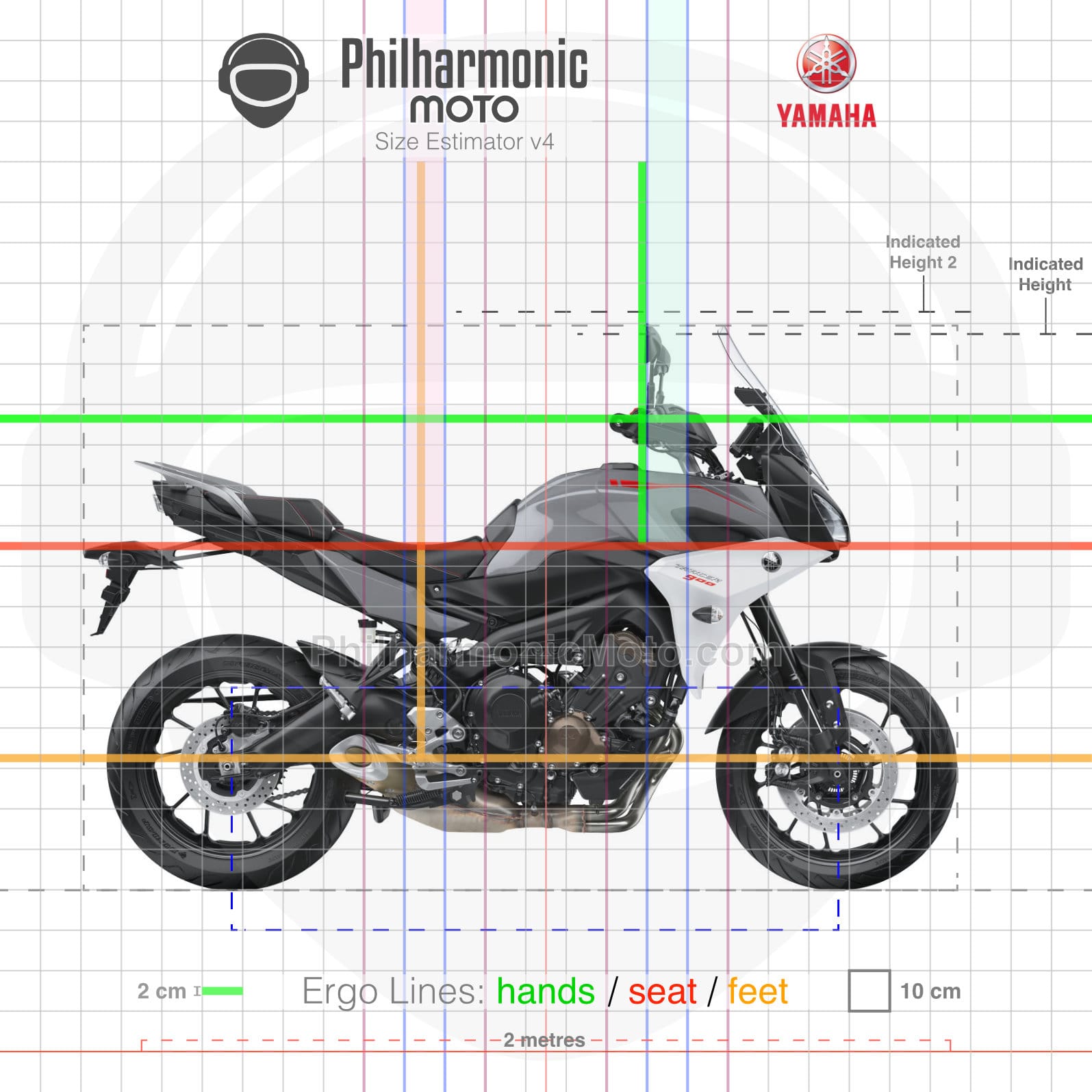

Yamaha Tracer 900 2018 dashboard Yamaha Tracer 900 2018 grey front Yamaha Tracer 900 2018 black back

Motorcycle gifts to celebrate it and support the website:
i love abs white tshirt
Click here to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

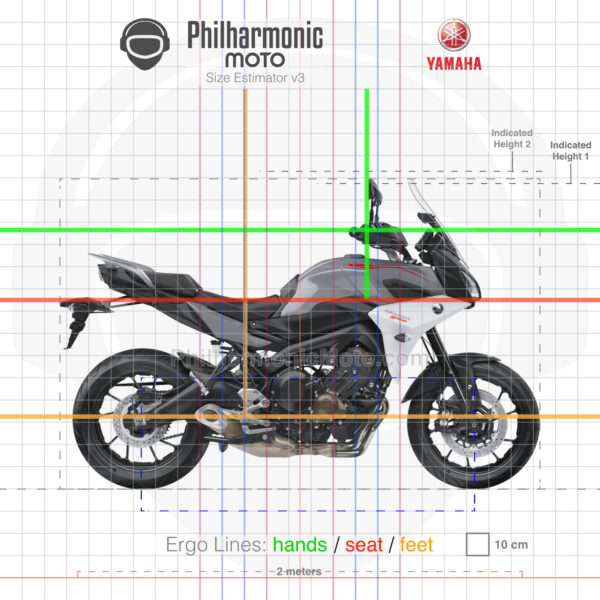

  • Size Estimator (see "About" page to learn more)
