Yamaha XMAX 125 Tech Max (2023+)

YP125RA

Updated: 2 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

125 cc Single-cylinder, liquid-cooled

Power

12 hp @ 8000 rpm

Power to weight ratio

7 HP/100kg

Torque

11 Nm @ 6000 rpm

Torque to weight ratio

7 Nm/100kg

Transmission

– Automatic CVT
– Belt final drive

Fuel Capacity

13,2 litres

Length

2180 mm

Width

795 mm

Height

1410/1460 mm (adjustable screen)

Weight

– 167 kg wet
– Max load: 163 kg

Seat Height

800 mm

Suspension

– Front: telescopic fork, 110 mm travel
– Rear: twin-shocks, adjustable preload, 90 mm travel

Tyres

– Front: 120/70-15
– Rear: 140/70-14

Brakes

– Front: 267 mm disc
– Rear: 245 mm disc
– ABS available

Instruments

– 4.2" TFT with tachometer, navigation, temperature, clock, 3.2" LCD display with speedometer, odometer, trip meter, fuel gauge
– Smartphone connectivity

Other

– LED lights
– Traction control

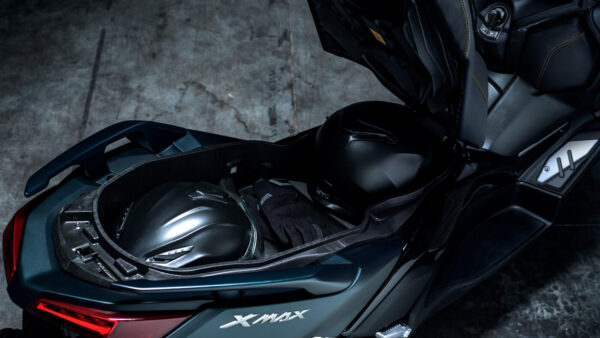

– Fully keyless, under seat storage, centre stand, adjustable handlebars, two front storage compartments (one locks electronically and has a 12v socket)

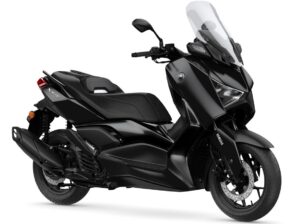

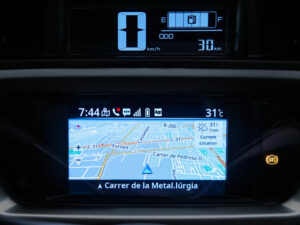

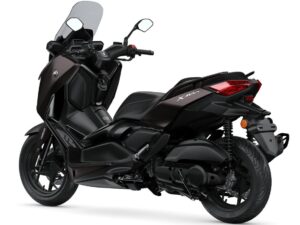

Yamaha XMAX 125 Tech Max 2024 dashboard Yamaha XMAX 125 Tech Max 2023 Tech Black front Yamaha XMAX 125 Tech Max 2024 Dark Magma back
