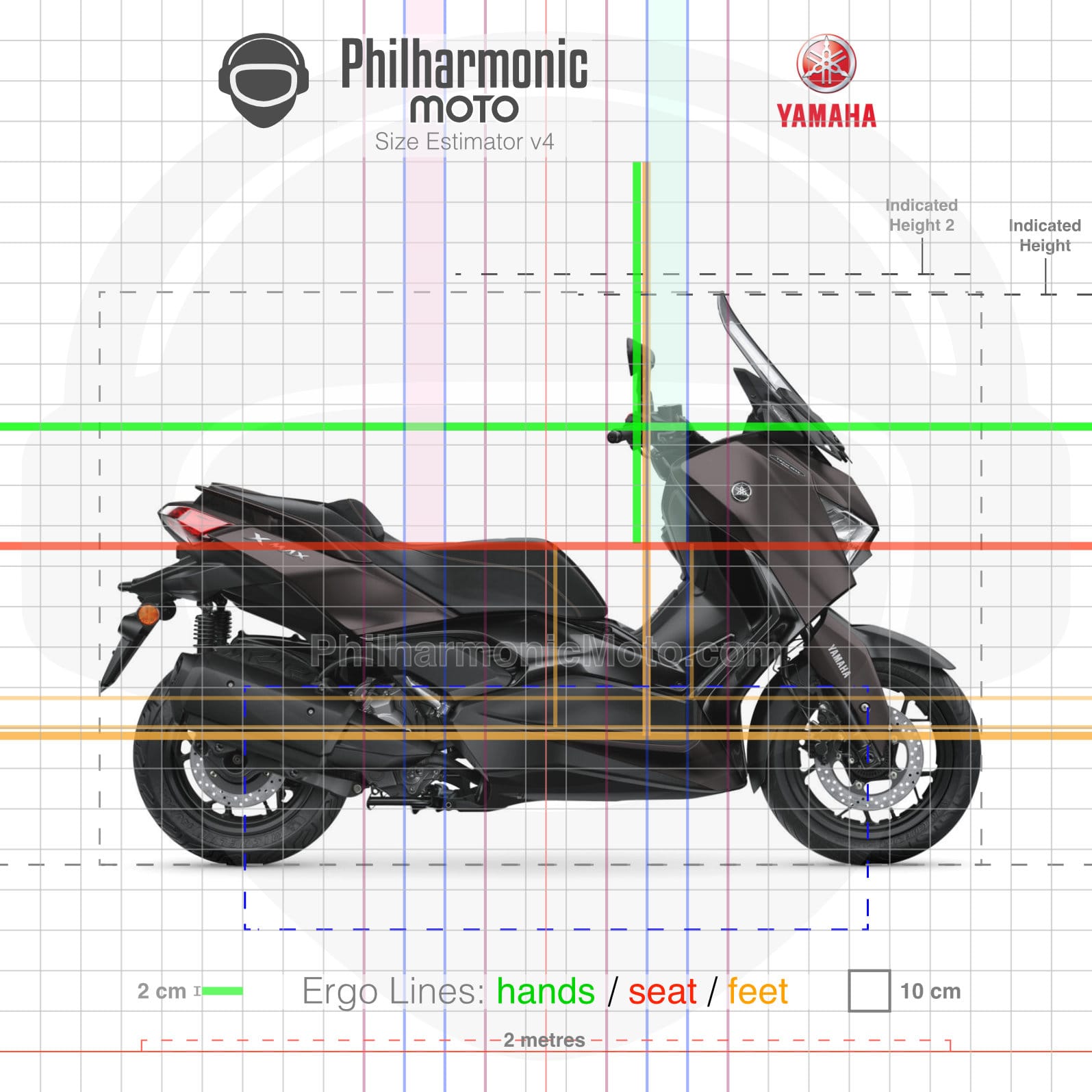

Yamaha XMAX / 300 / Tech MAX (2023+)

XMAX 300 Tech MAX: Europe

XMAX 300: Australia

XMAX: USA

CZD300D

Updated: 2 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

292 cc Single-cylinder, liquid-cooled

Power

28 hp @ 7250 rpm

Power to weight ratio

15 HP/100kg

Torque

29 Nm @ 5750 rpm

Torque to weight ratio

16 Nm/100kg

Transmission

– Automatic CVT
– Belt final drive

Fuel Capacity

13,2 litres

Length

2180 mm

Width

795 mm

Height

1410/1460 mm (adjustable screen)

Weight

– 183 kg wet
– Max load: 163 kg

Seat Height

795 mm

Suspension

– Front: telescopic fork, 110 mm travel
– Rear: twin-shocks, adjustable preload, 79 mm travel

Tyres

– Front: 120/70-15
– Rear: 140/70-14

Brakes

– Front: 267 mm disc
– Rear: 245 mm disc
– ABS available

Instruments

– 4.2" TFT with tachometer, navigation, temperature, clock, 3.2" LCD display with speedometer, odometer, trip meter, fuel gauge
– Smartphone connectivity

Other

– LED lights
– Traction control
– Fully keyless, under seat storage, centre stand, adjustable handlebars, two front storage compartments (one locks electronically and has a 12v socket)

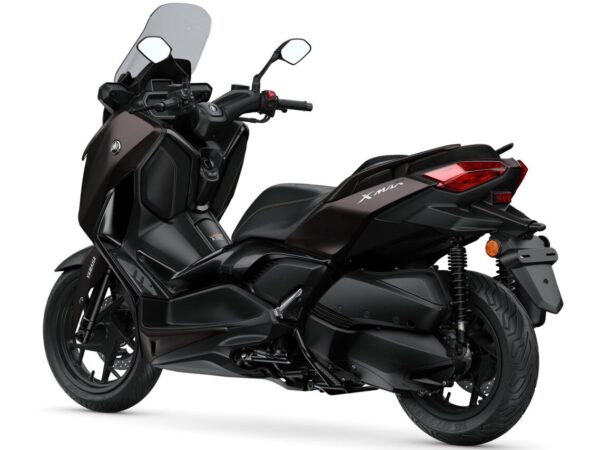

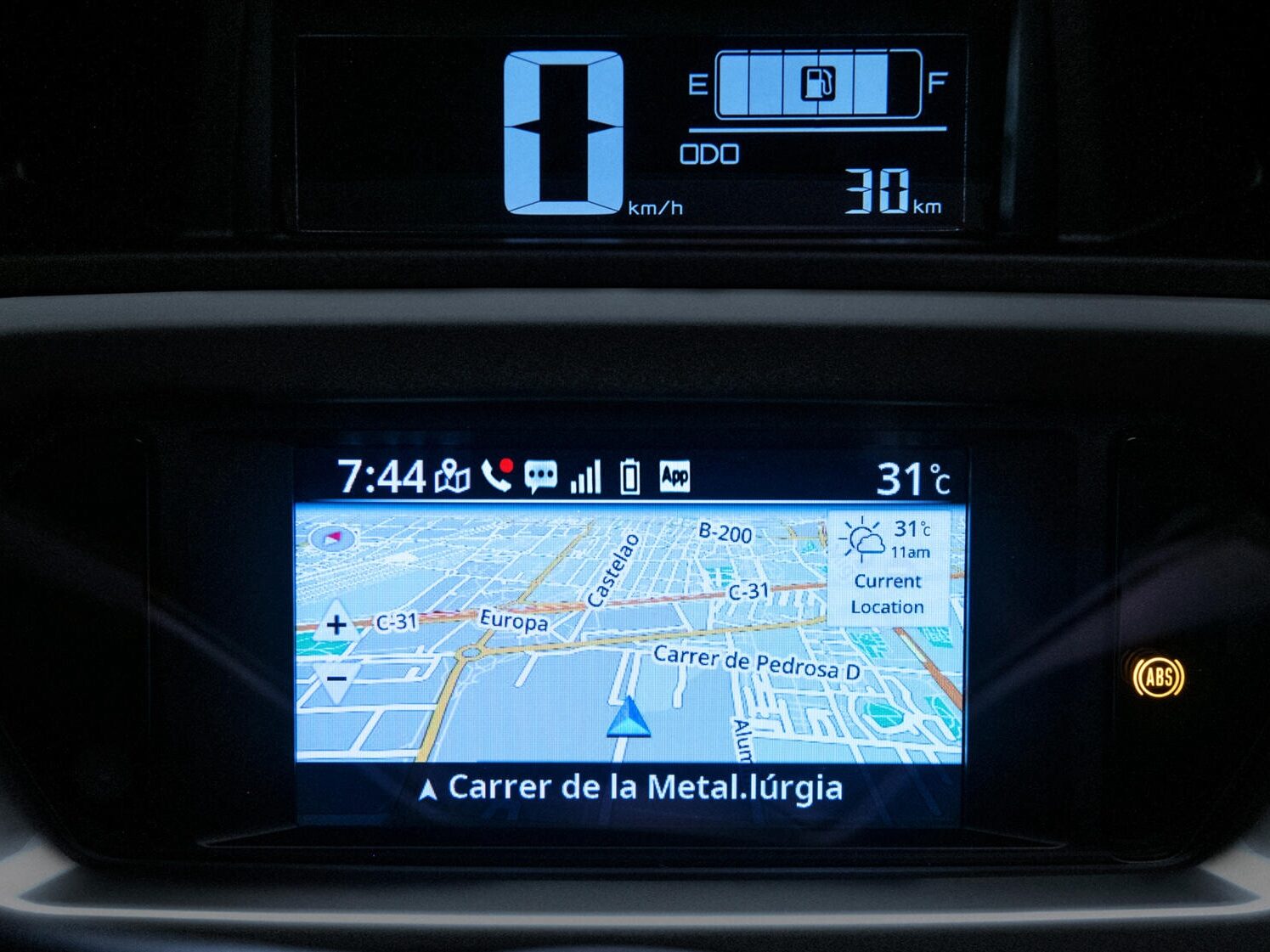

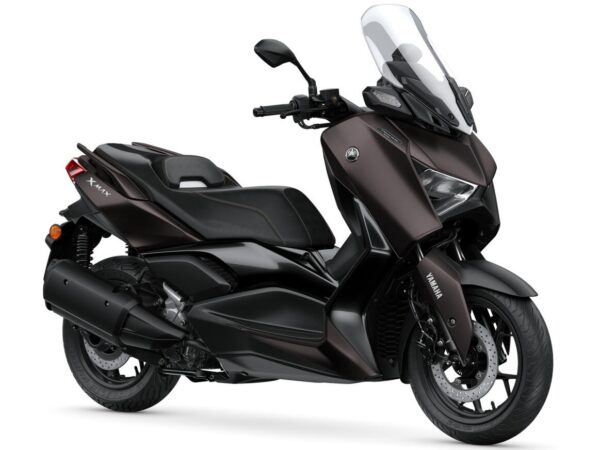

Yamaha XMAX 300 Tech Max 2024 dashboard Yamaha XMAX 300 Tech Max 2024 Dark Magma front Yamaha XMAX 300 Tech Max 2024 Dark Magma black

Motorcycle gifts to celebrate it and support the website:
helmet black tshirt
Click here to learn more.


Brand (multi-selection) ( - )

  • 20 Aprilia
  • 16 Benelli
  • 64 BMW
  • 1 BSA
  • 33 CFMoto
  • 55 Ducati
  • 5 Fantic
  • 52 Harley-Davidson
  • 149 Honda
  • 17 Husqvarna
  • 44 Indian
  • 105 Kawasaki
  • 2 Keeway
  • 32 KTM
  • 2 Kymco
  • 16 Moto Guzzi
  • 5 Moto Morini
  • 18 MV Agusta
  • 3 Other
  • 8 Piaggio
  • 15 Royal Enfield
  • 58 Suzuki
  • 65 Triumph
  • 13 Vespa
  • 6 Voge
  • 99 Yamaha

Horsepower

Style (multi-selection) ( - )

  • 123 Adv
  • 58 Adv Sports
  • 57 Classic
  • 106 Cruiser
  • 31 Dual-Sport
  • 223 Naked
  • 77 Scooter
  • 44 Scrambler
  • 133 Sport
  • 38 Sport Touring
  • 18 Supermoto
  • 48 Touring

Features (standard or optional) info Features (standard or optional) multi-selection ( - )

Power to weight ratio (HP/100kg) ( - )

Torque (Nm) ( - )

Torque to weight ratio (Nm/100kg) ( - )

Seat height (mm) ( - )

Weight (Kg) ( - )

Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

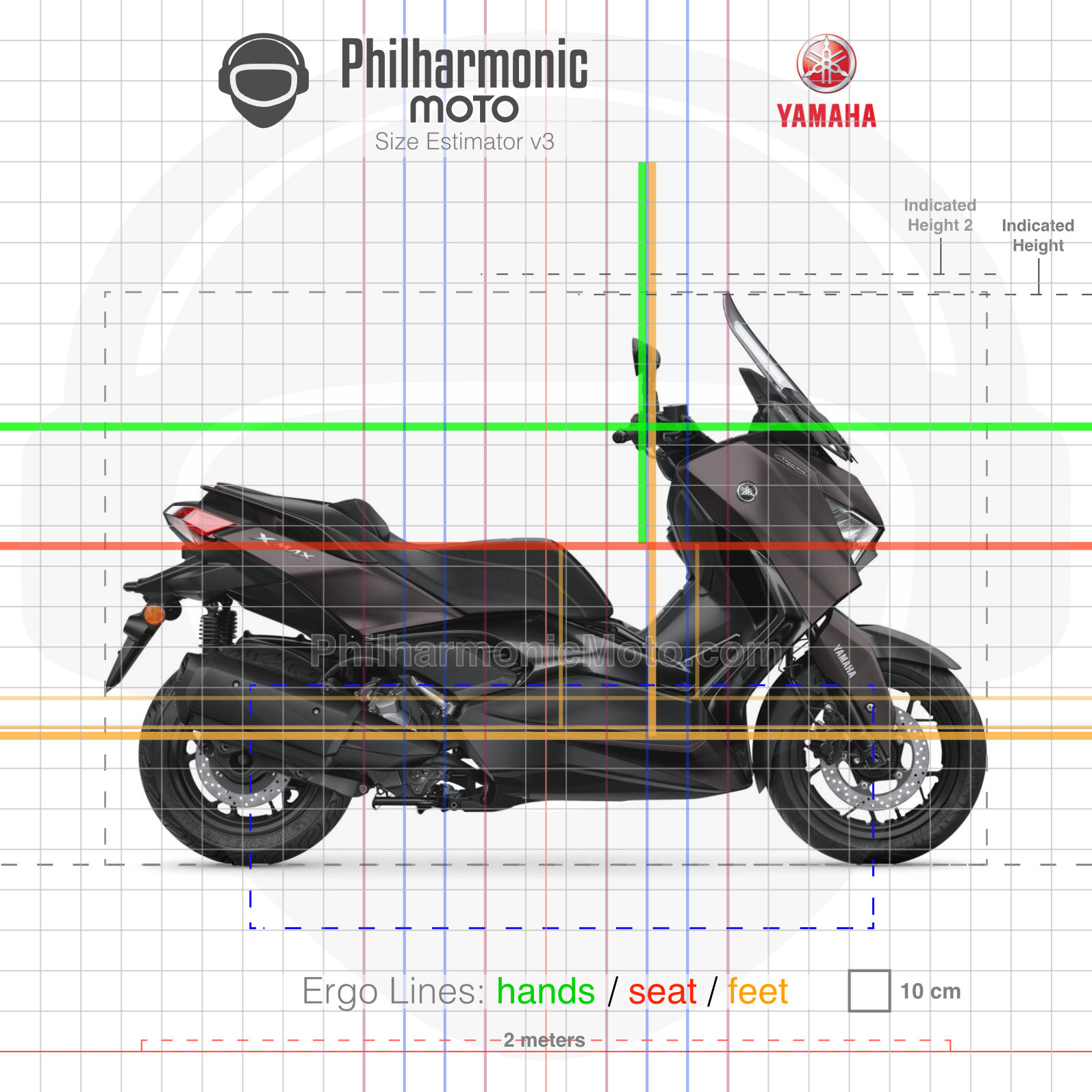

  • Size Estimator (see "About" page to learn more)
